Removal And Installation: Notes

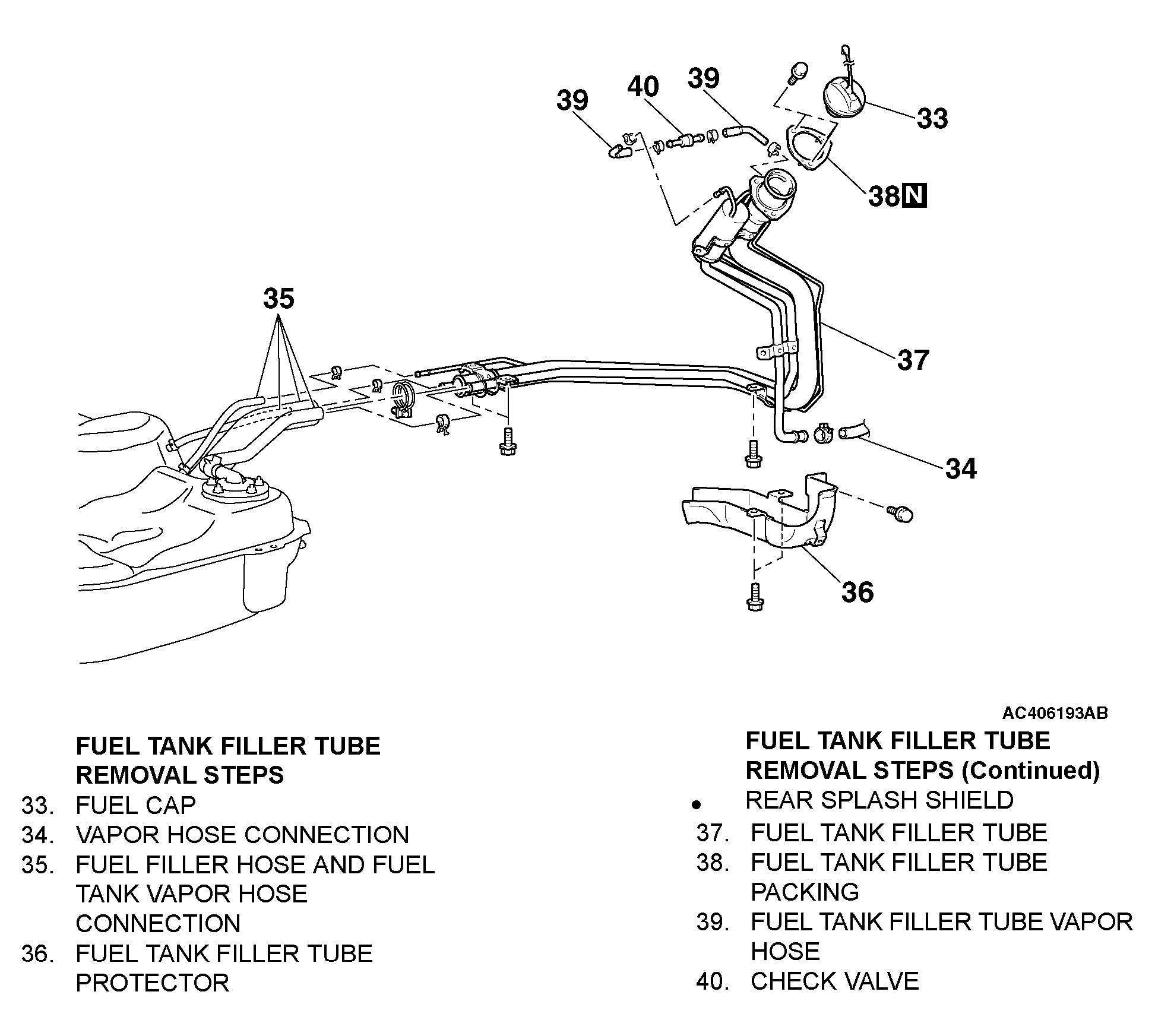

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

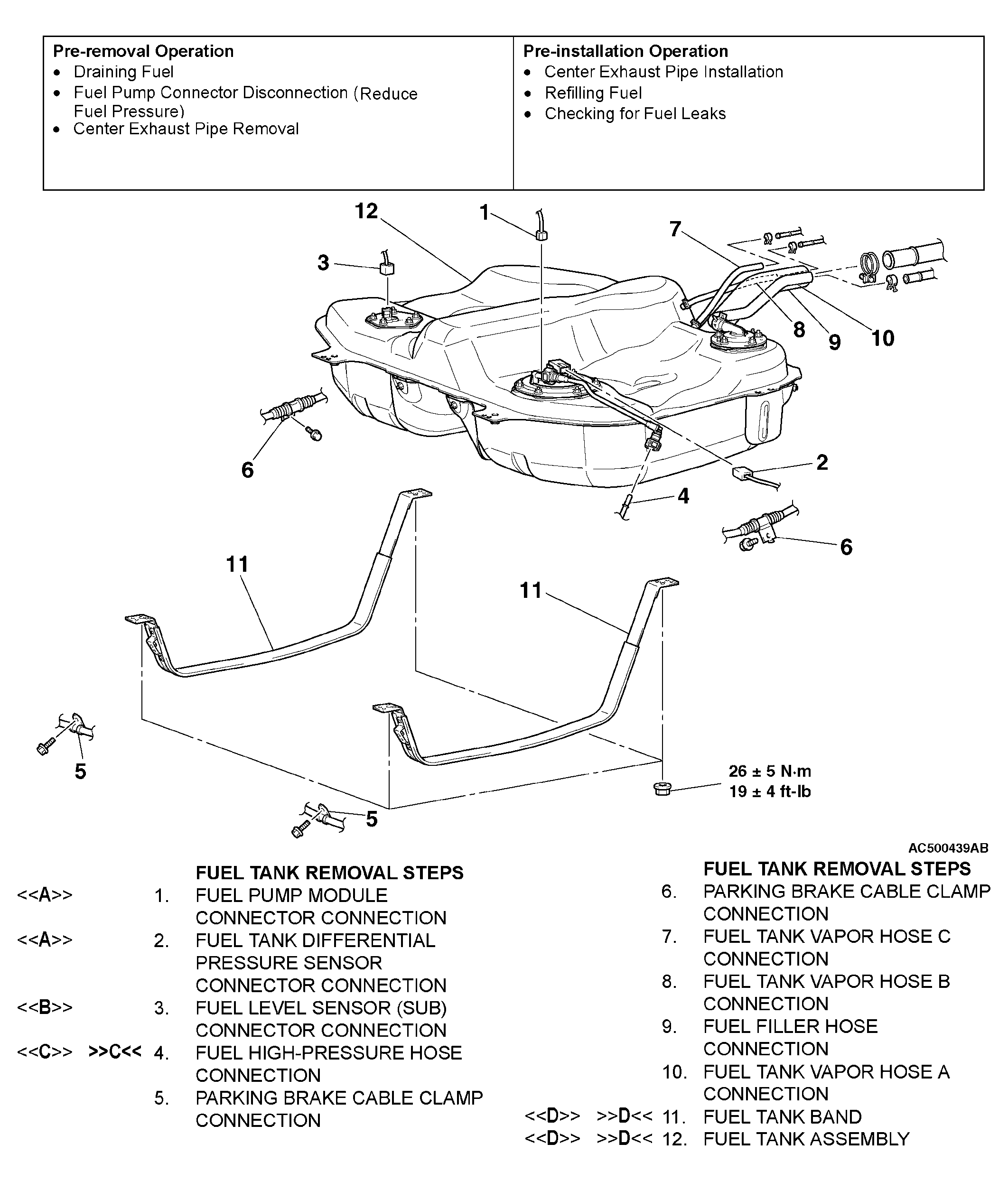

Fig 2: Identifying Fuel Tank Components (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

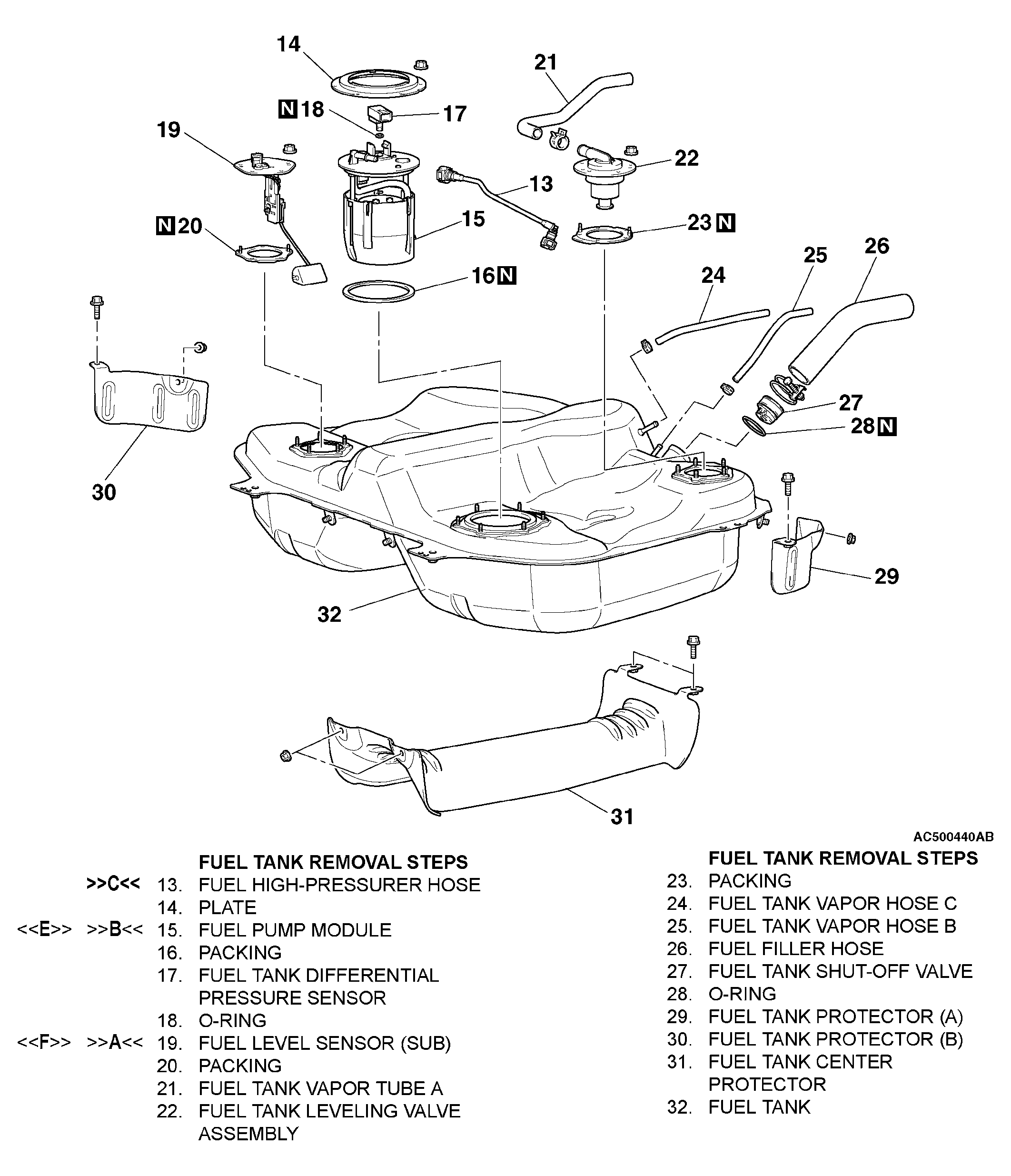

Fig 3: Identifying Fuel Tank Components (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
