Removal And Installation

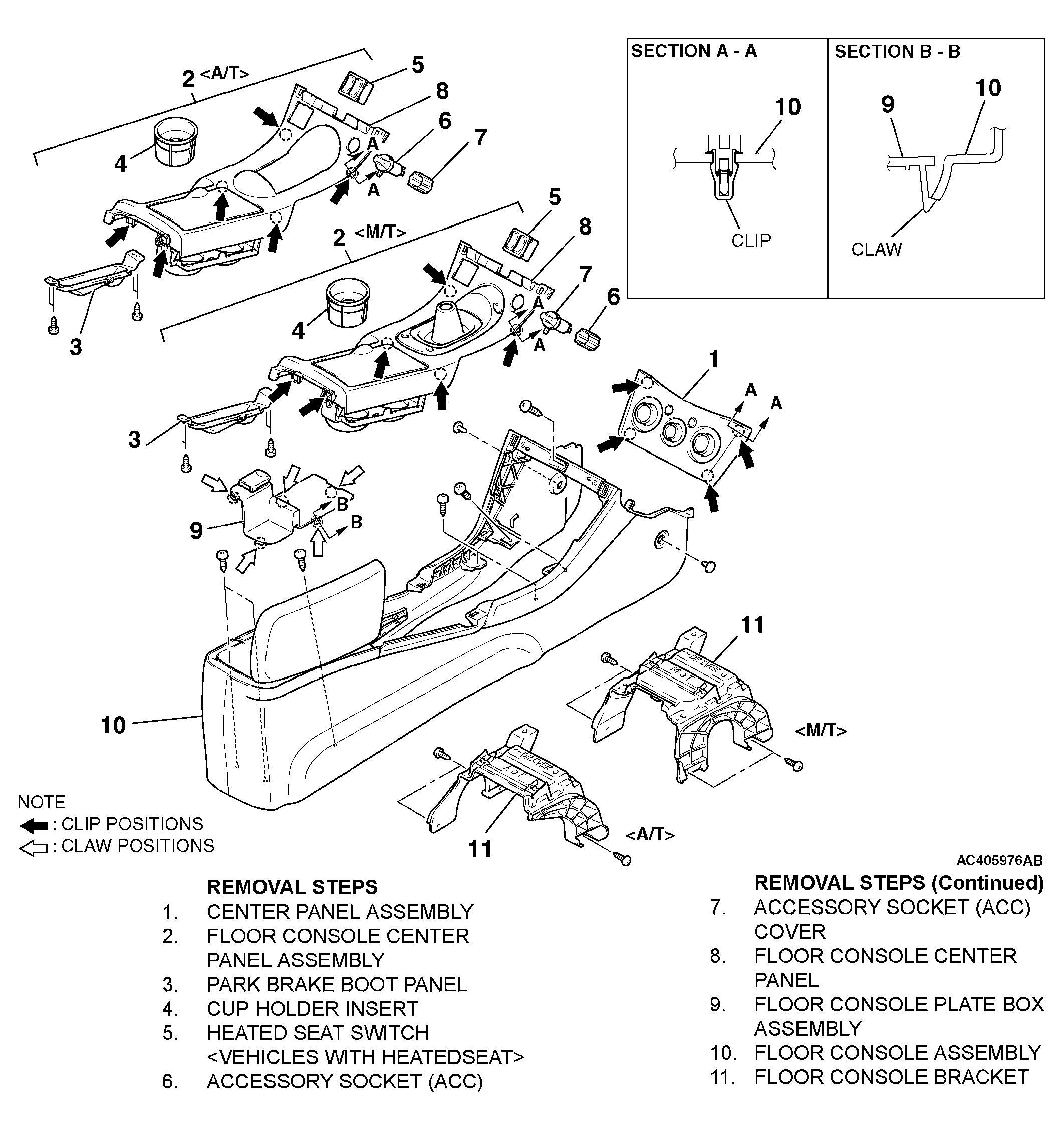

Fig 1: Removing & Installing Floor Console Assembly
G04237791Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
