Removal And Installation: Notes

WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check of occupant classification sensor after the seat has been installed in the vehicle. Refer to ON-VEHICLE SERVICE .

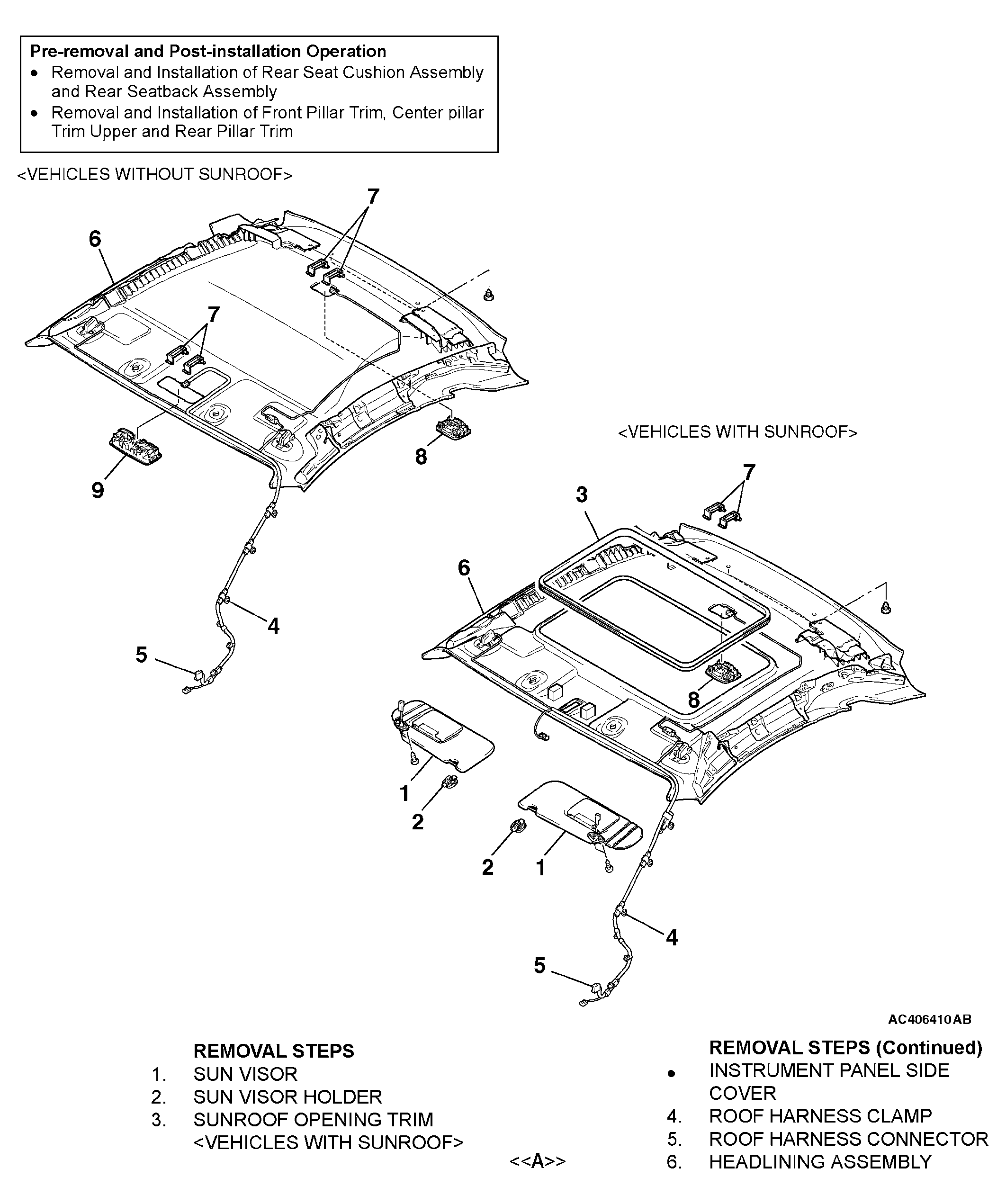

Fig 1: Headliner Components
G04237801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
