Disassembly And Assembly

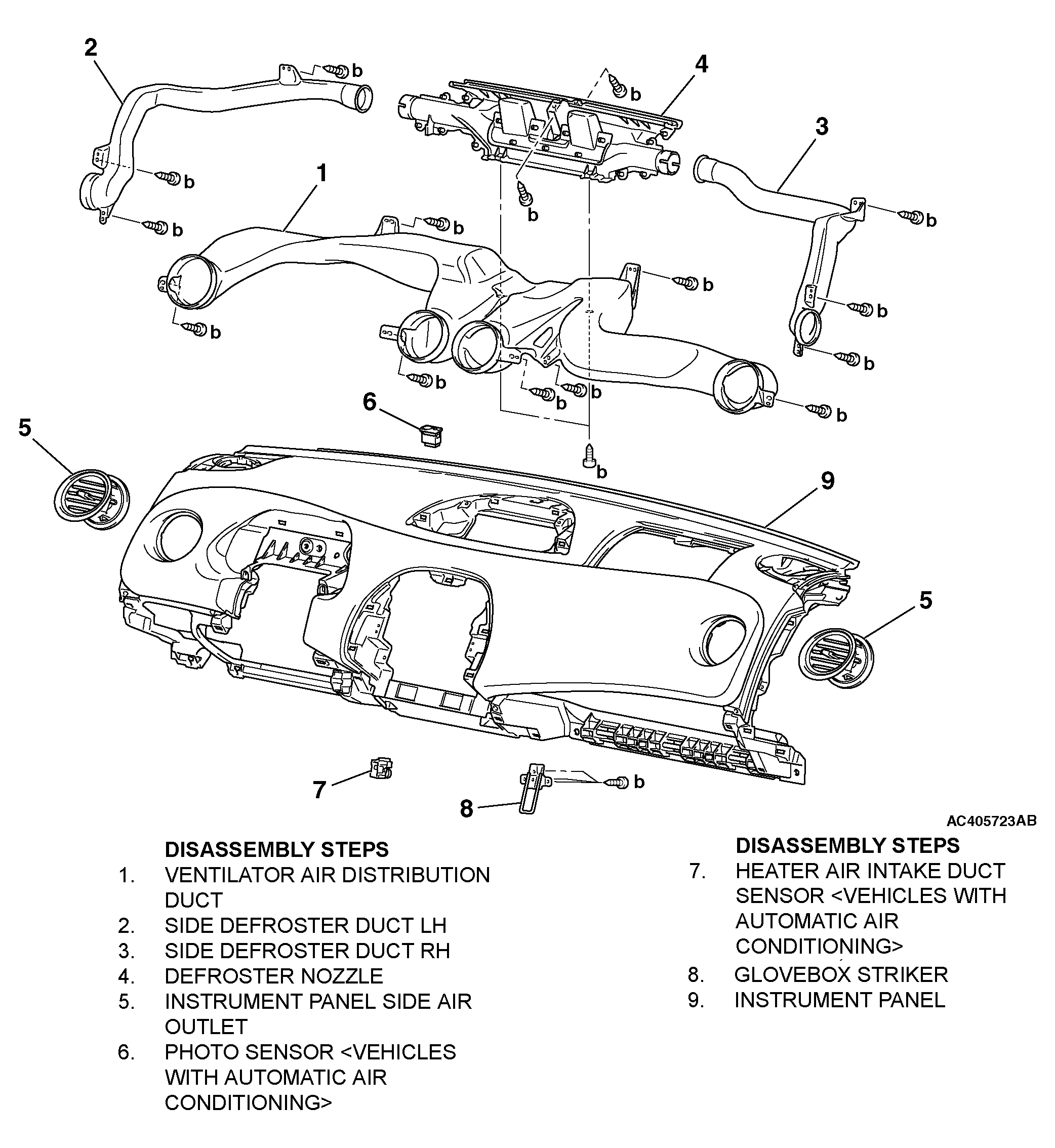

Fig 1: Disassembling & Assembling Interior Instrument Panel Assembly
G04237790Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
