Inspection Procedure 2: Abs/TCL-Ecu Power Supply Circuit System: Notes

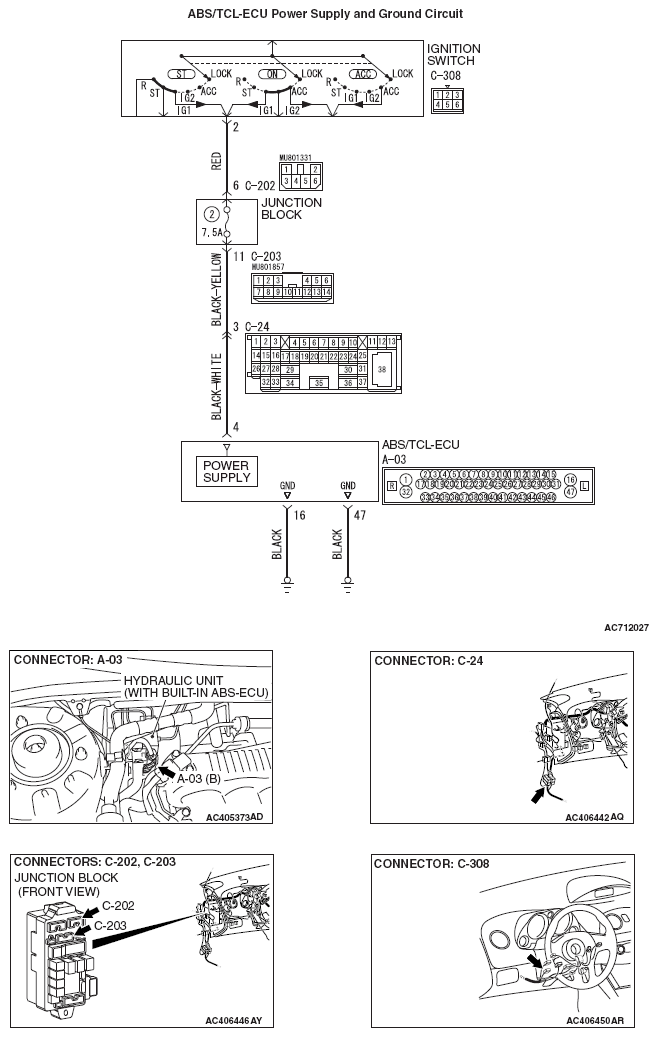

Fig 1: ABS/TCL-ECU Power Supply - Circuit Diagram
G05892245Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
