Special Tools

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04234931G04234932G04234933G04234934G04234935G04234936G04234937
G04234931G04234932G04234933G04234934G04234935G04234936G04234937
G04234931G04234932G04234933G04234934G04234935G04234936G04234937
G04234931G04234932G04234933G04234934G04234935G04234936G04234937
G04234931G04234932G04234933G04234934G04234935G04234936G04234937
G04234931G04234932G04234933G04234934G04234935G04234936G04234937
G04234931G04234932G04234933G04234934G04234935G04234936G04234937
 MB991958
  1. MB991824
  2. MB991827

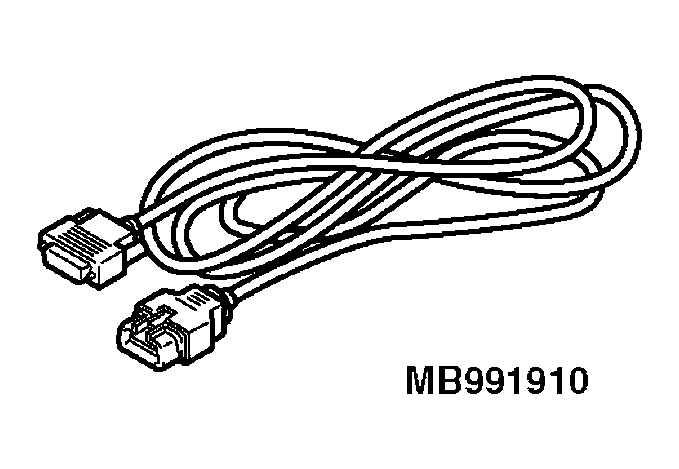

  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825

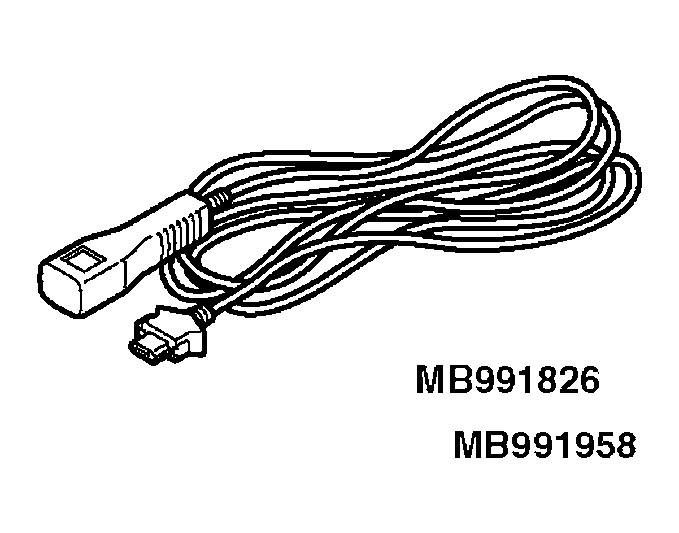

  7. MB991826

MUT-III sub assembly

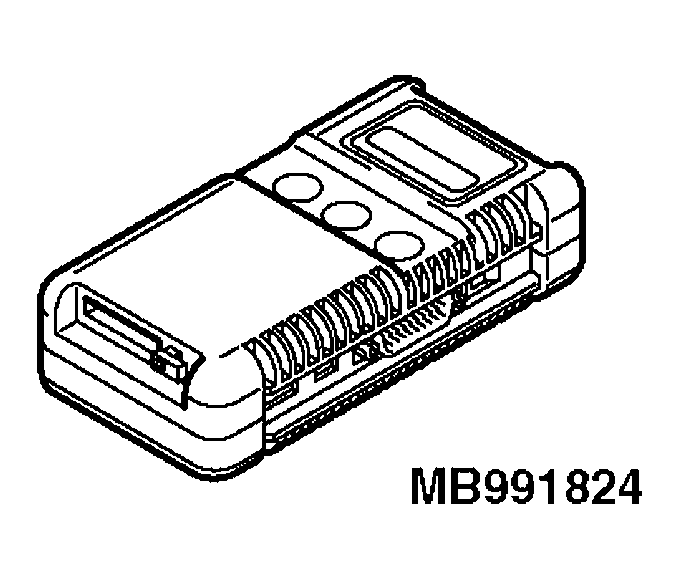

  1. Vehicle Communication Interface (V.C.I).

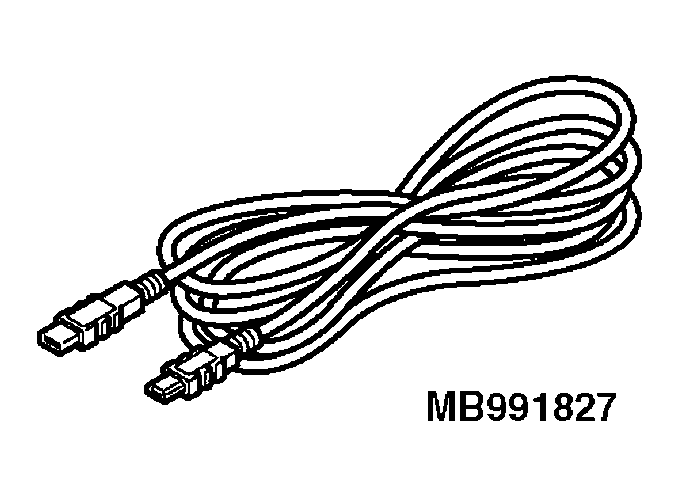

  2. MUT-III USB Cable
  3. MUT-III Main Harness A (Vehicles with CAN communication system)

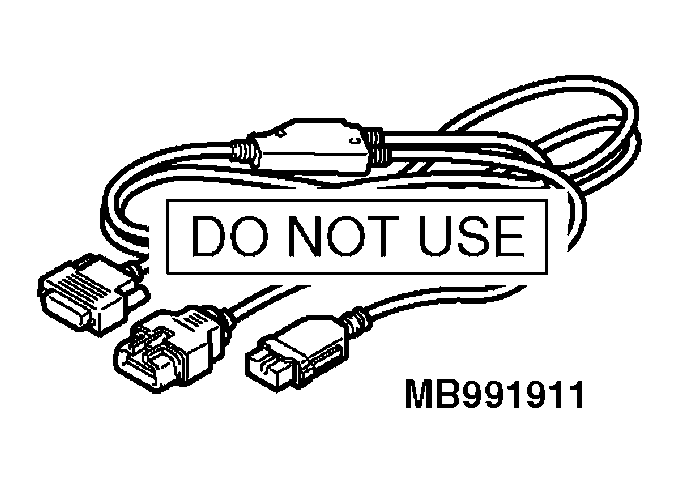

  4. MUT-III Main Harness B (Vehicles without CAN communication system)

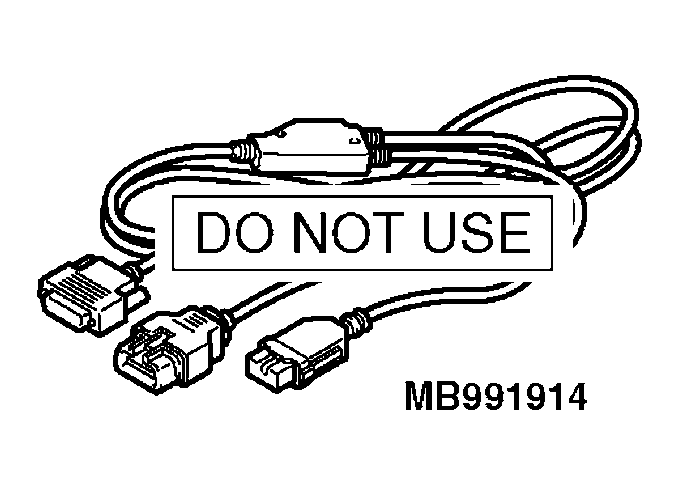

  5. MUT-III Main Harness C (for DaimlerChrysler models only)

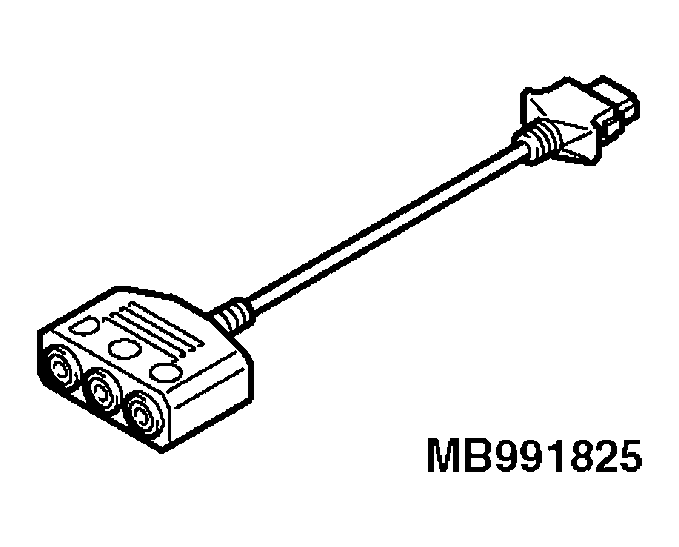

  6. MUT-III Measurement Adapter
  7. MUT-III Trigger Harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
  • Reading diagnostic trouble code
  • MFI system inspection
  • Measurement of fuel pressure
    CAUTION: For vehicles with CAN communication, use MUT-III main harness A to send simulated vehicle speed. If you connect MUT-III main harness B instead, the CAN communication does not function correctly.
G04234938

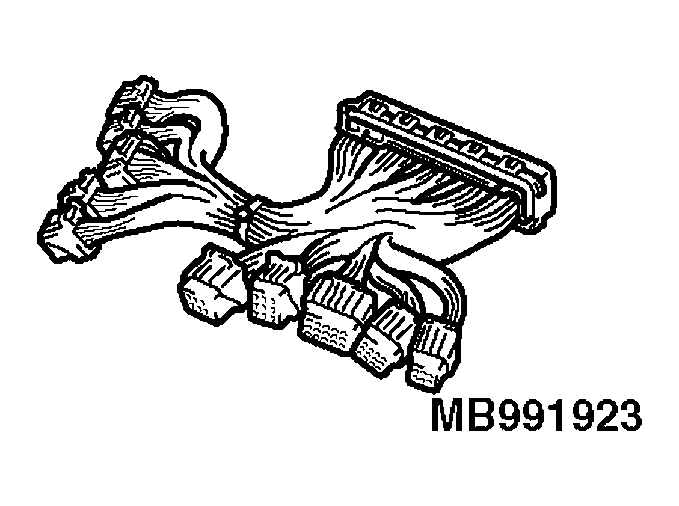

 MB991923 Power plant ECU check harness MD998478-01
  • Inspection using an oscilloscope
  • Inspection of the engine control module (ECM) < M/T > the powertrain control module (PCM) < A/T > terminal voltage check
G04234939

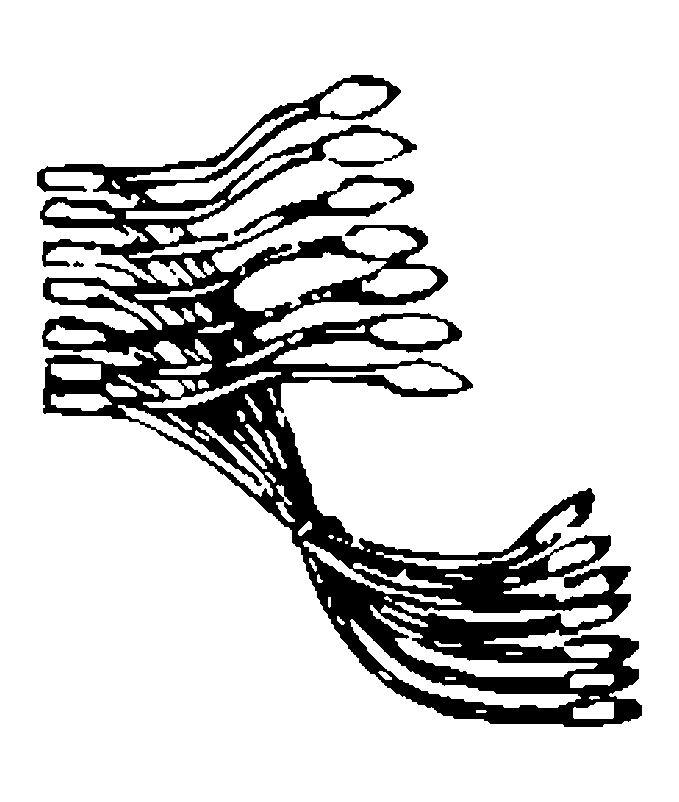

 MB991709 Test harness MB991709-01 Inspection using an oscilloscope
G04234940

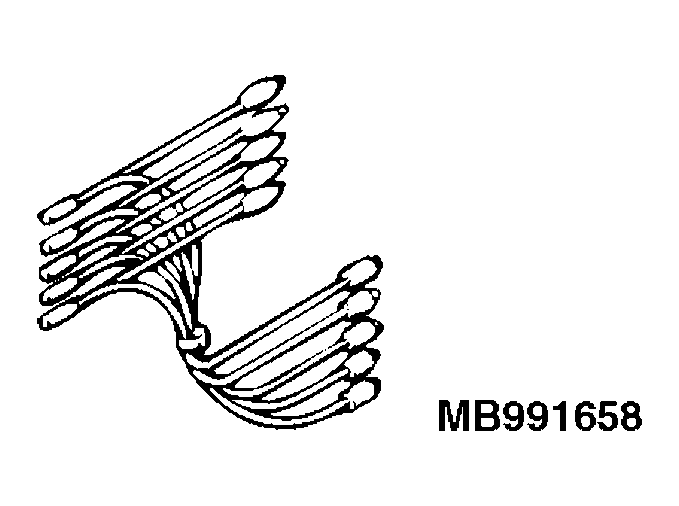

 MB991658 Test harness Tool not available Inspection using an oscilloscope
G04234941

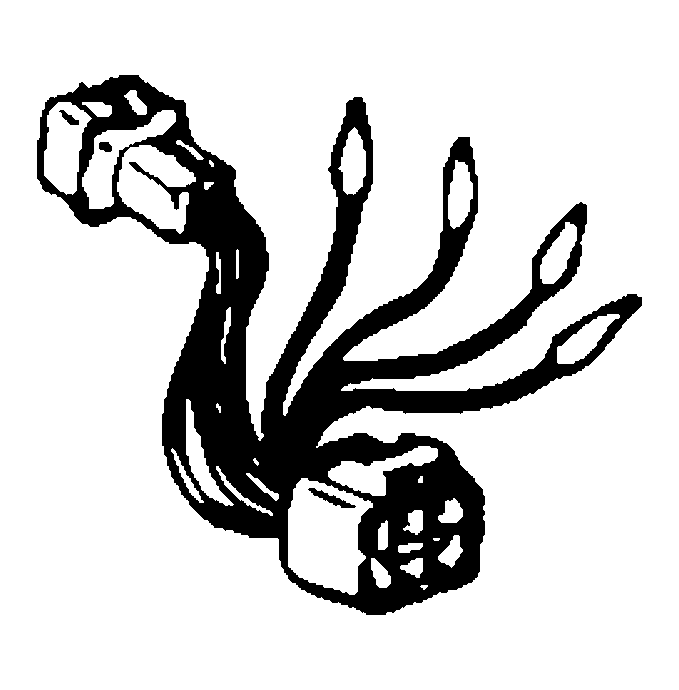

 MD998464 Test harness (4 pin, square) MD998464-01 Inspection of heated oxygen sensor
G04234942
 MB991316 Test harness (4 pin, square) Tool not available Inspection of heated oxygen sensor
G04234943

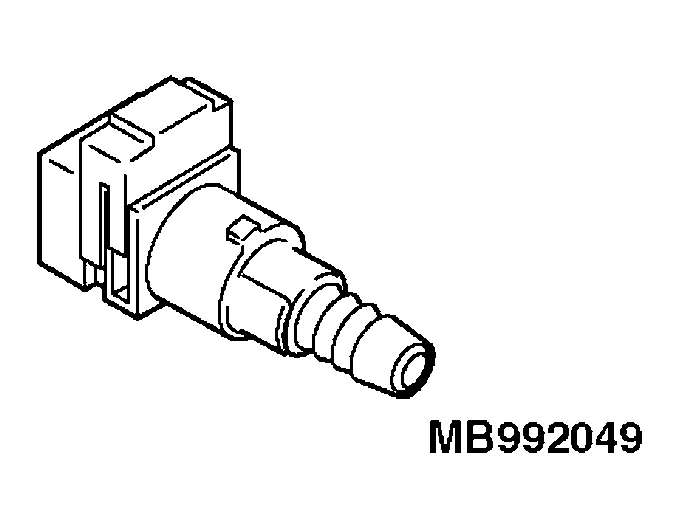

 MB992049 Quick connector
  • Measurement of fuel pressure
G04234944

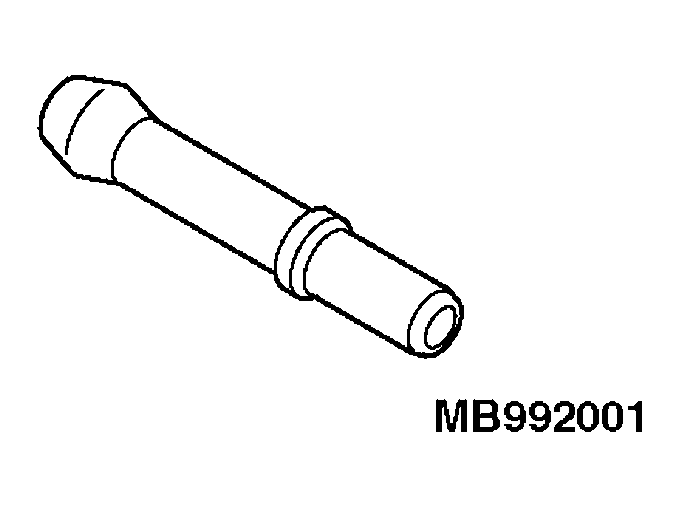

 MB992001 Hose adaptor
  • Measurement of fuel pressure
G04234945

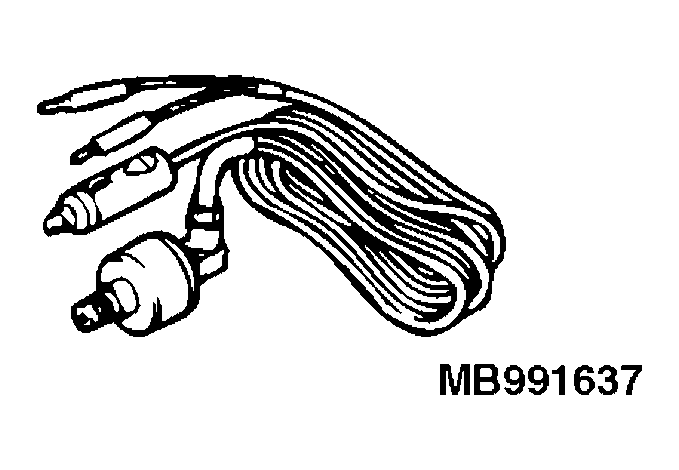

 MB991637 Fuel pressure gauge set Tool not available Measurement of fuel pressure
G04234946

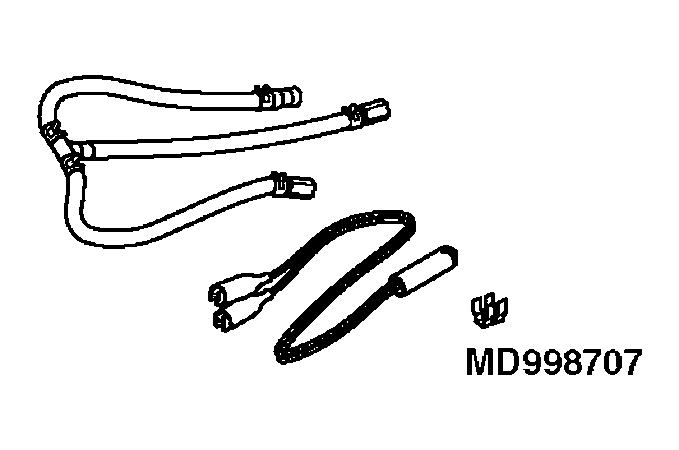

 MD998707 Injector test set
  • Measurement of fuel pressure
