Inspection Procedure M-8: Column Switch: ETACS-Ecu Does Not Receive Any Signal From The Variable Intermittent Wiper Control Switch: Notes

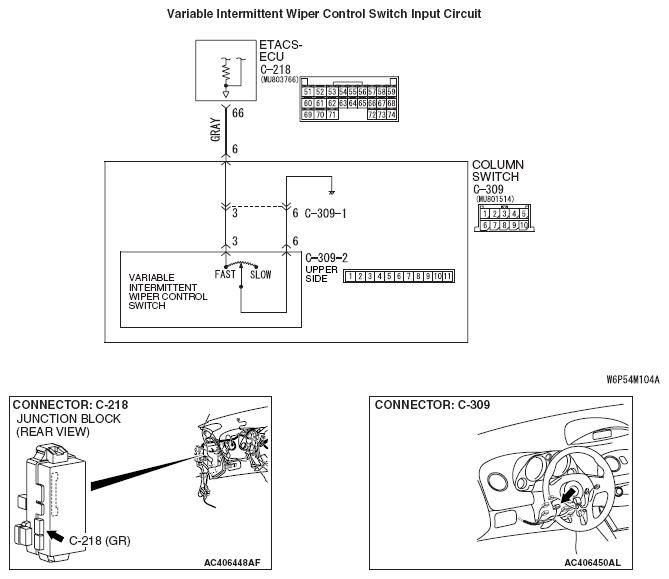

Fig 1: Variable Intermittent Wiper Control Switch Input Circuit Diagram
G05107488Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
