Inspection Procedure 2: Remote Controlled Radio Switch: When Remote Controlled Radio Power Switch Is Turned "On," No Power Is Available, But Radio And Cd Player With Cd Changer Power Switch Is Available < Vehicles With Audio Amplifier>: Notes

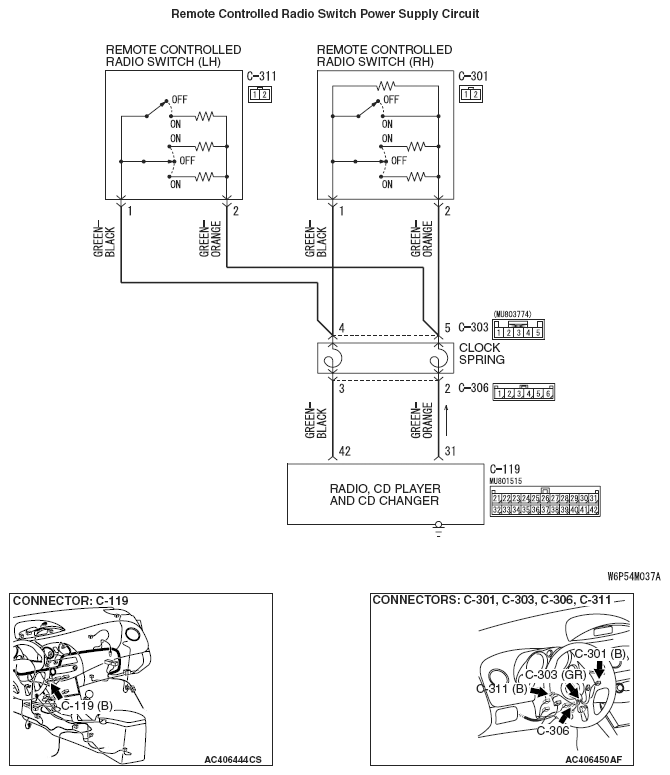

Fig 1: Remote Controlled Radio Switch Power Supply Circuit
G05106367Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
