Explanation Of Repair Contents

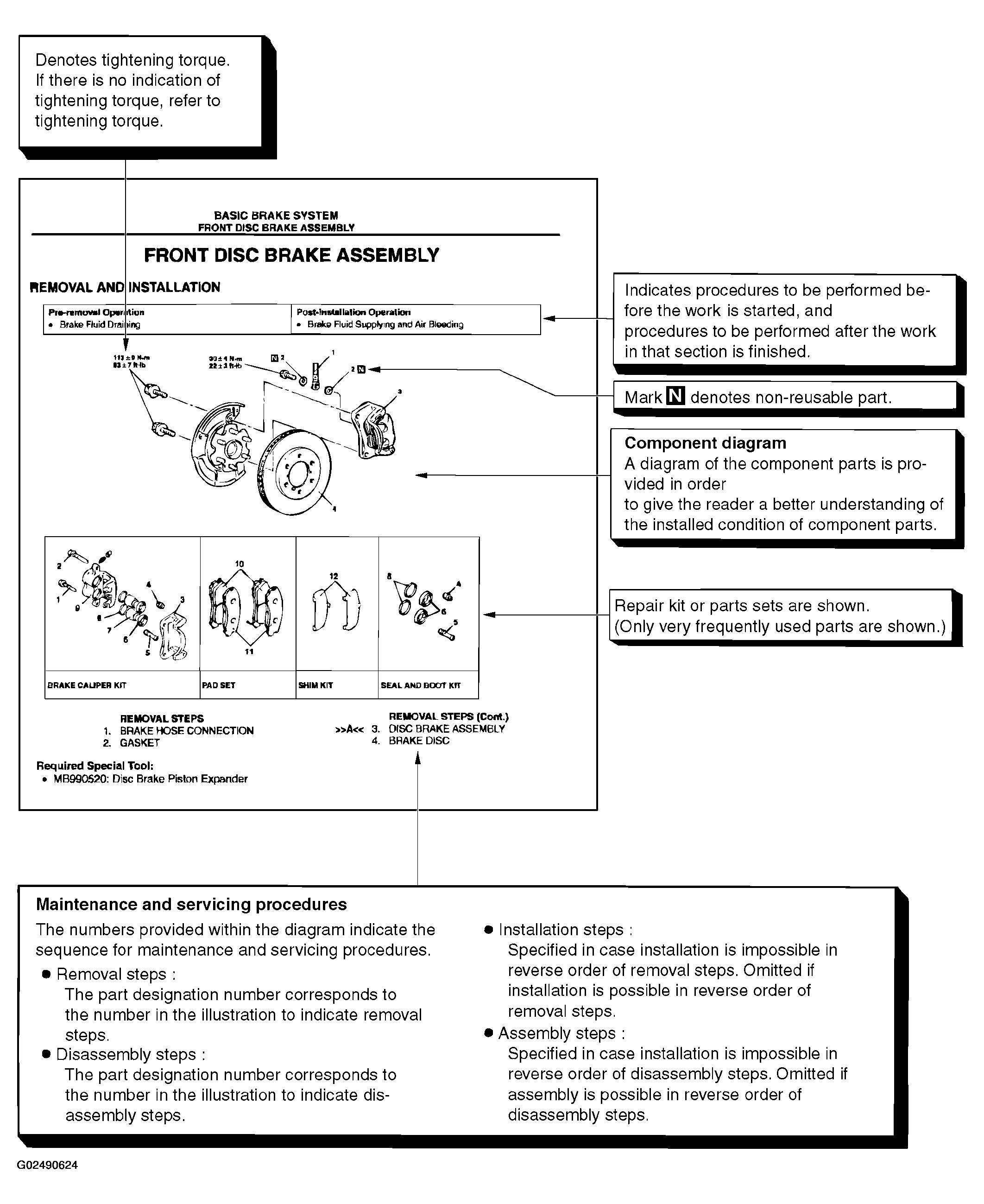

Fig 1: Repair Contents Explanation (1 Of 2)
G02490624Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

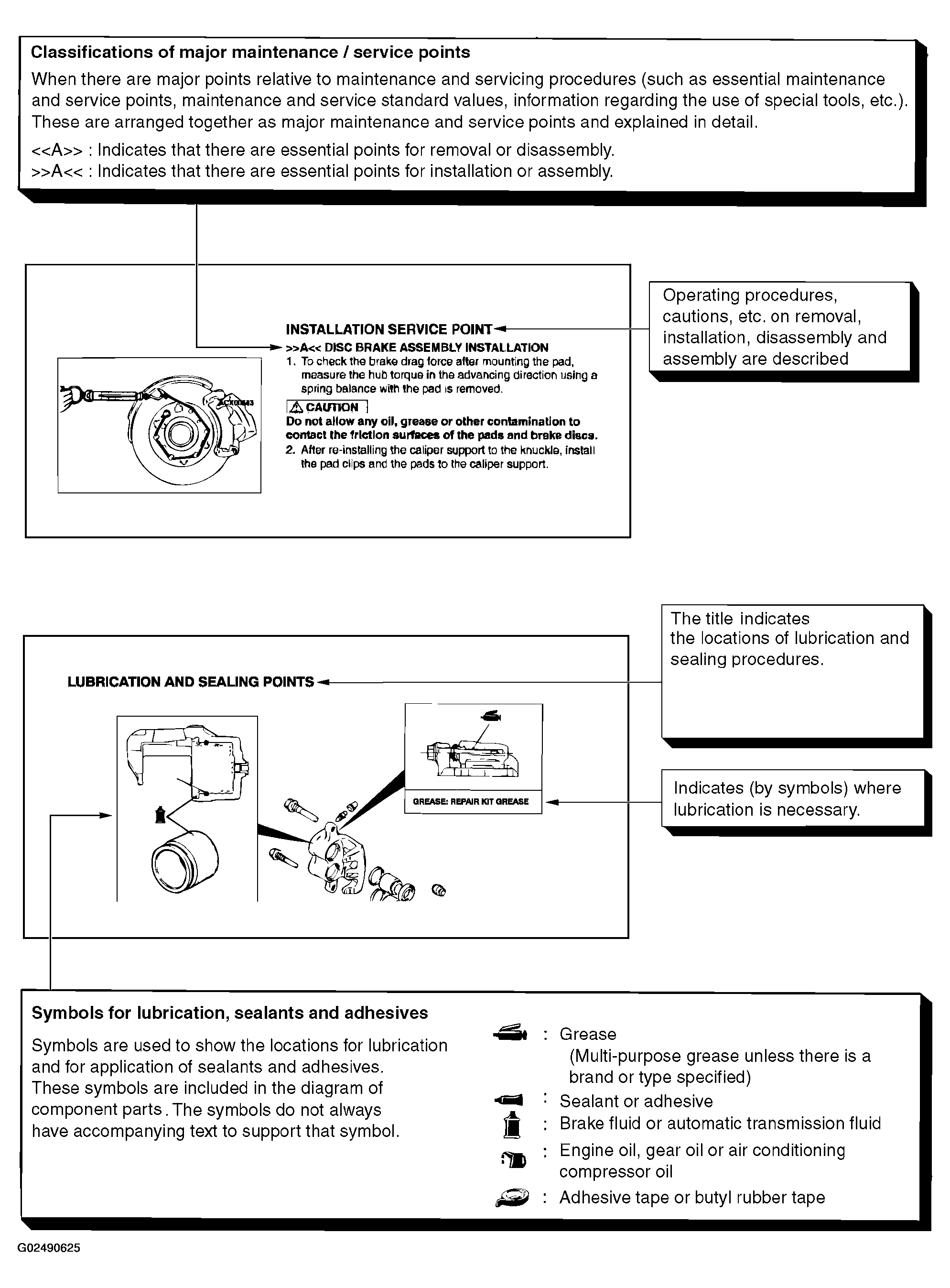

Fig 2: Repair Contents Explanation (2 Of 2)
G02490625Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
