Actuator Test Reference Table

ACTUATOR TEST REFERENCE TABLE

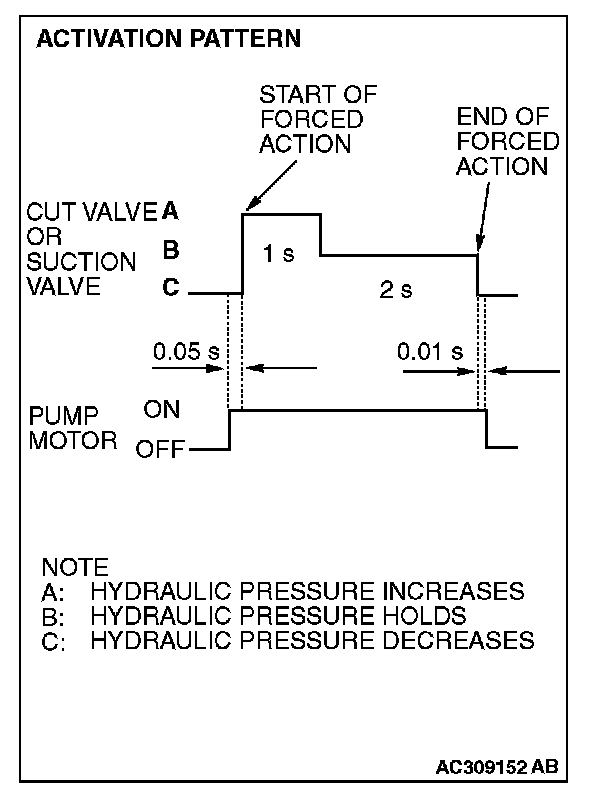

The scan tool activates the following actuators for testing.

NOTE: If the [TCL/ASC-ECU] runs down, actuator testing cannot be carried out.

NOTE: Actuator testing is only possible when the vehicle is stationary.

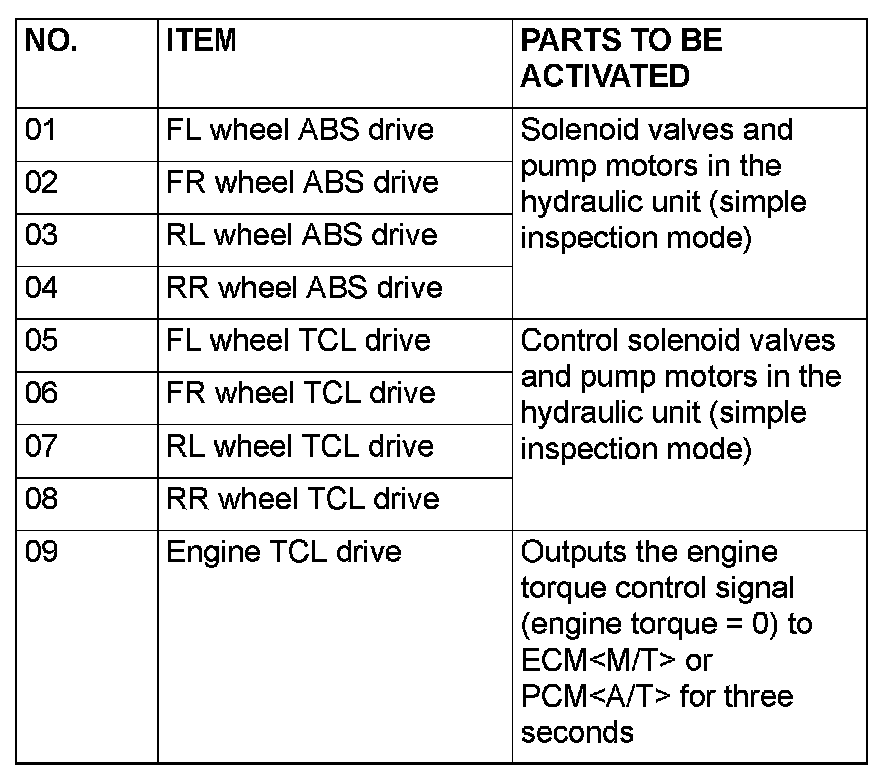

ACTUATOR TEST SPECIFICATIONS
