Fail-Safe Function Reference Table

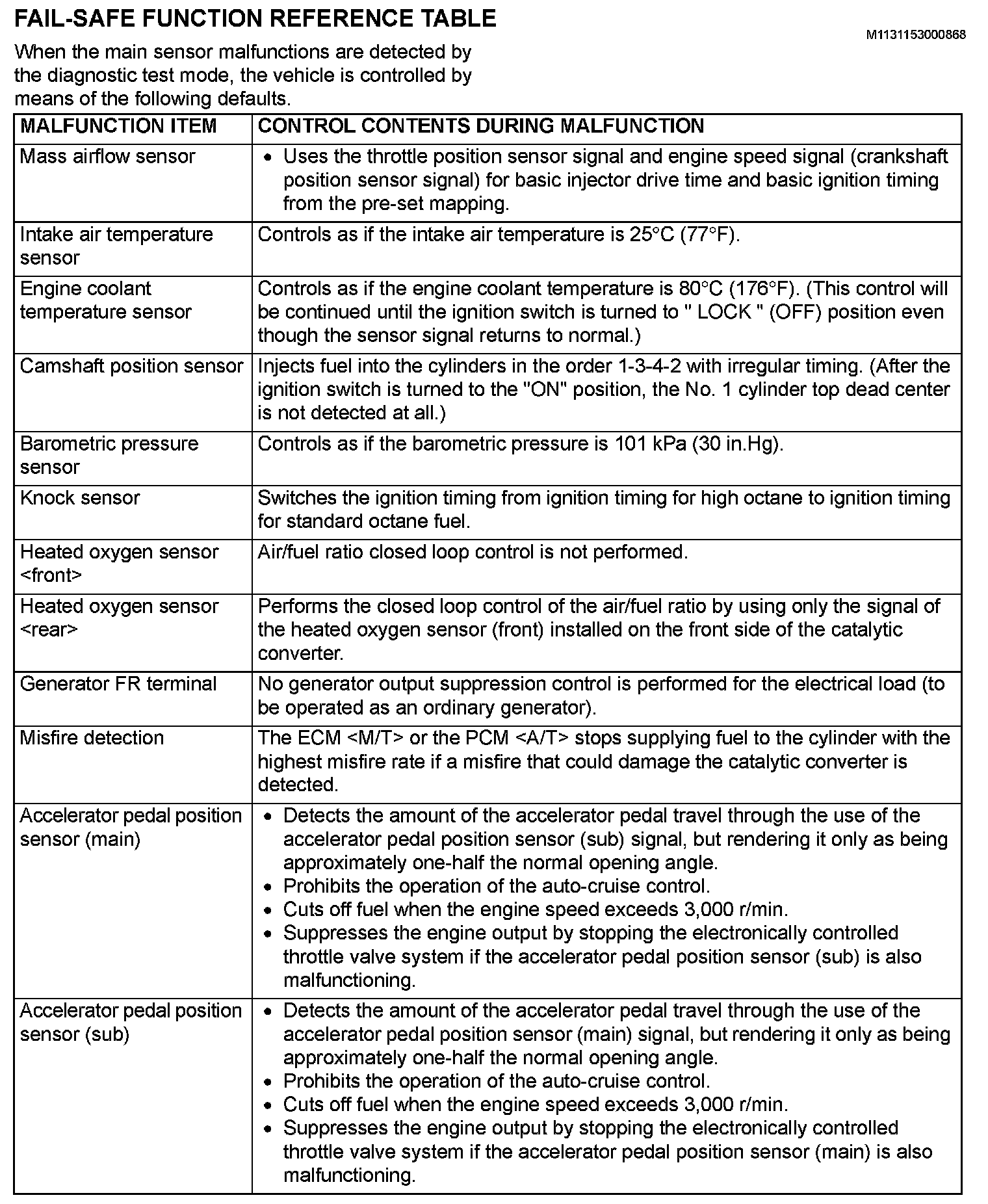

Fail-Safe Function Reference Table (Part 1):

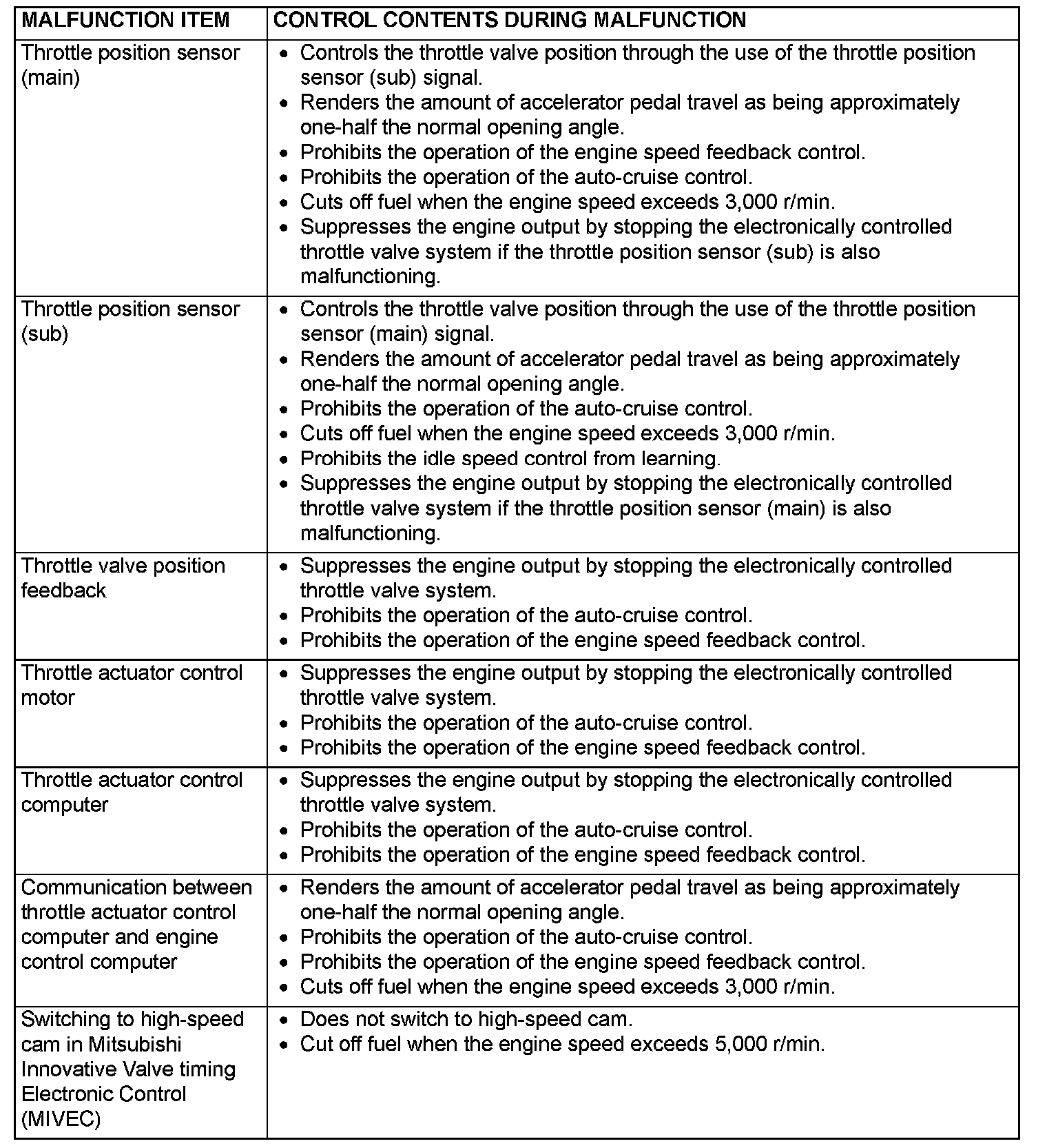

Fail-Safe Function Reference Table (Part 2):
