Loose Panel

LOOSE PANEL

REMOVAL AND INSTALLATION

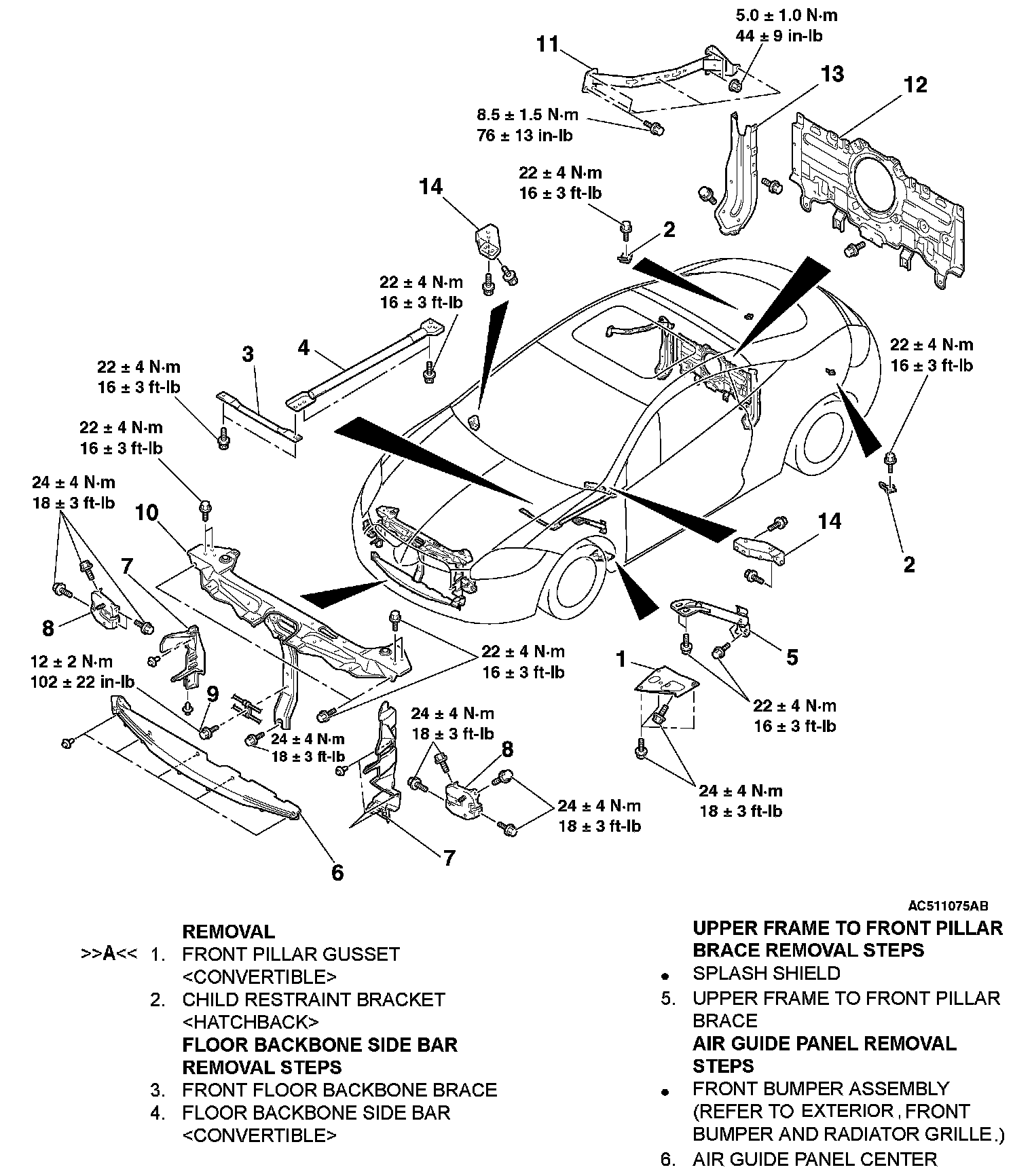

Removal Steps 1-14 (Part 1):

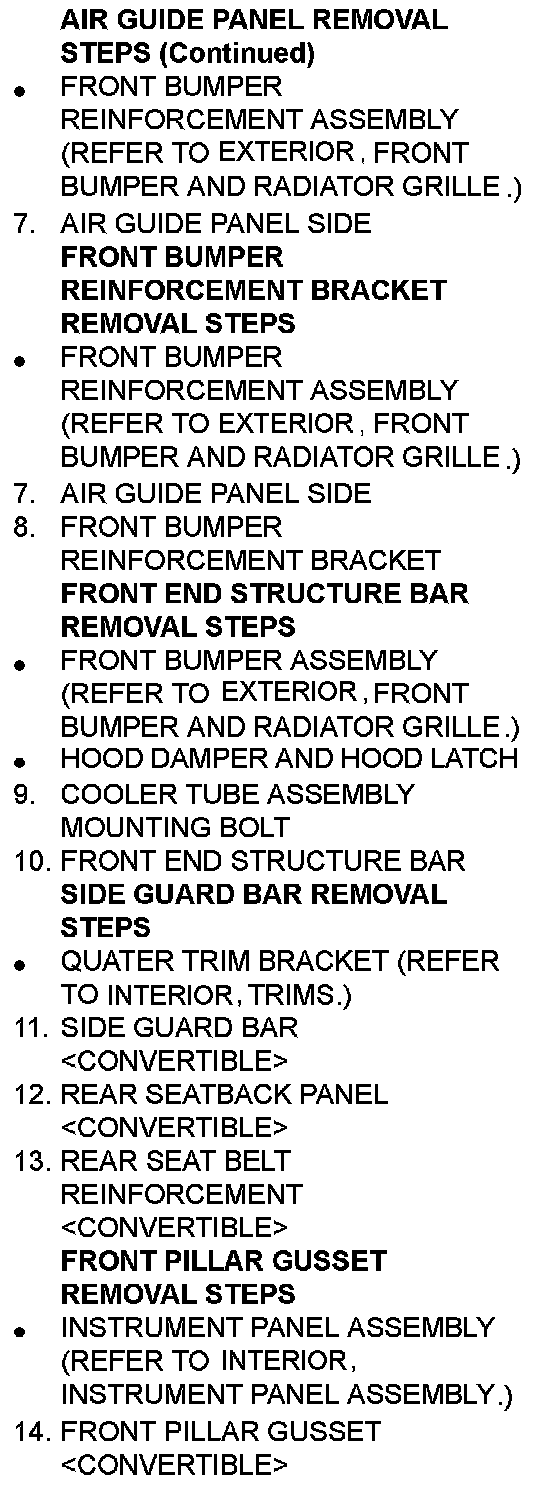

Removal Steps 1-14 (Part 2):

INSTALLATION SERVICE POINT

]]A[[ FRONT PILLAR GUSSET [CONVERTIBLE]







Tighten the front pillar gusset mounting bolts to the specified torque below in the order shown in the figure.

Tightening torque: 24 ± 4 N.m (18 ± 3 ft-lb)
