General Data and Specifications

GENERAL DATA AND SPECIFICATIONS

[ECLIPSE]

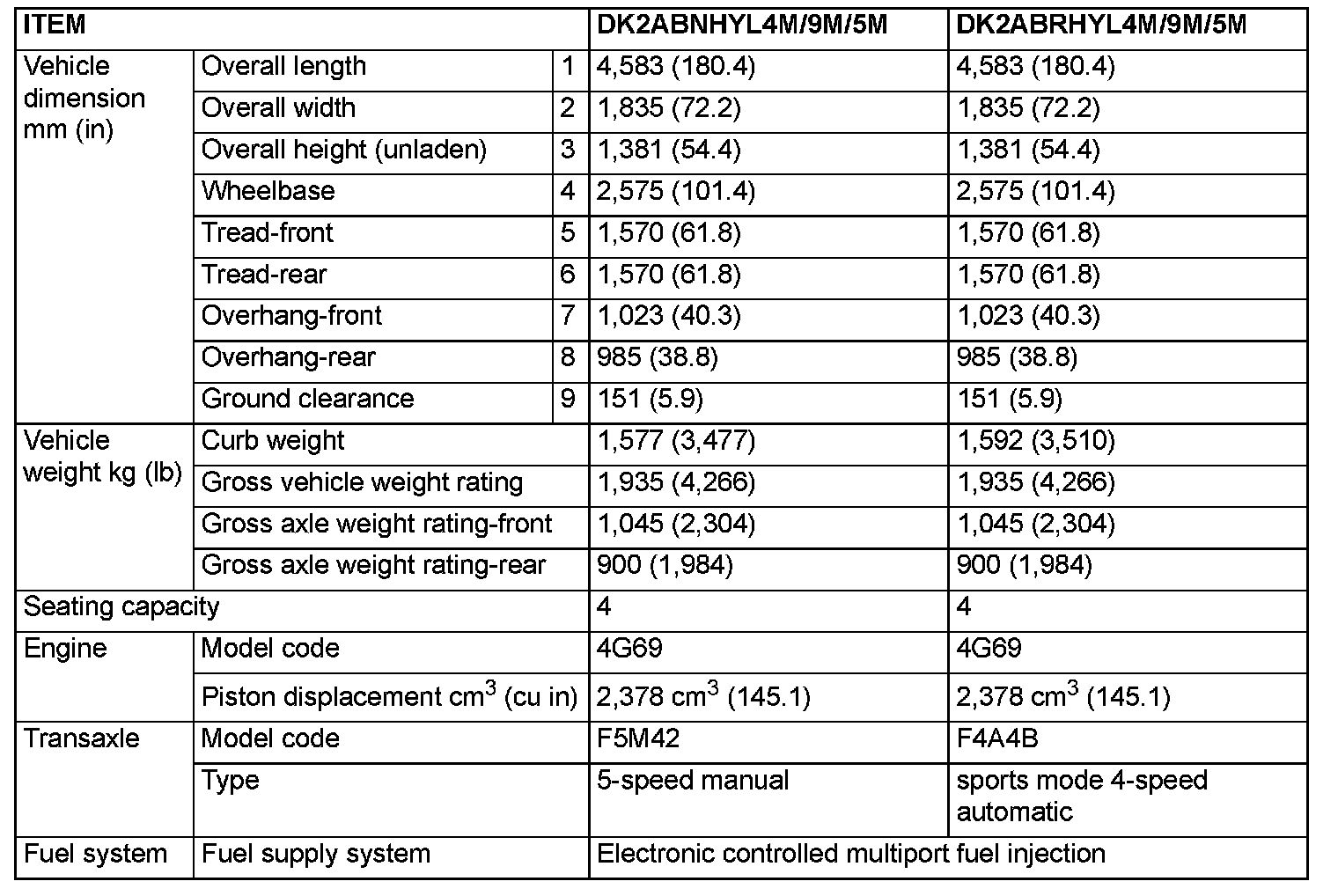

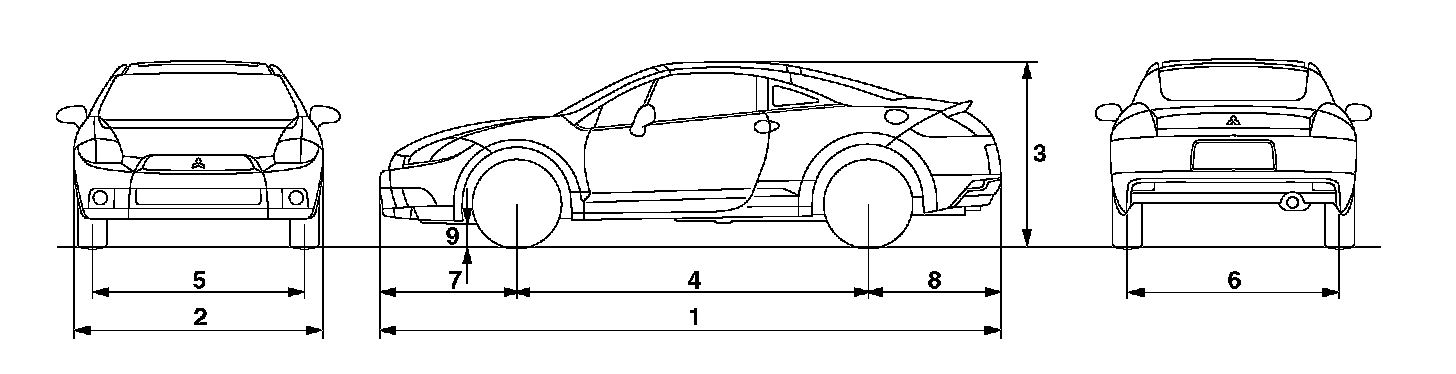

GENERAL SPECIFICATIONS (2.4L ENGINE)

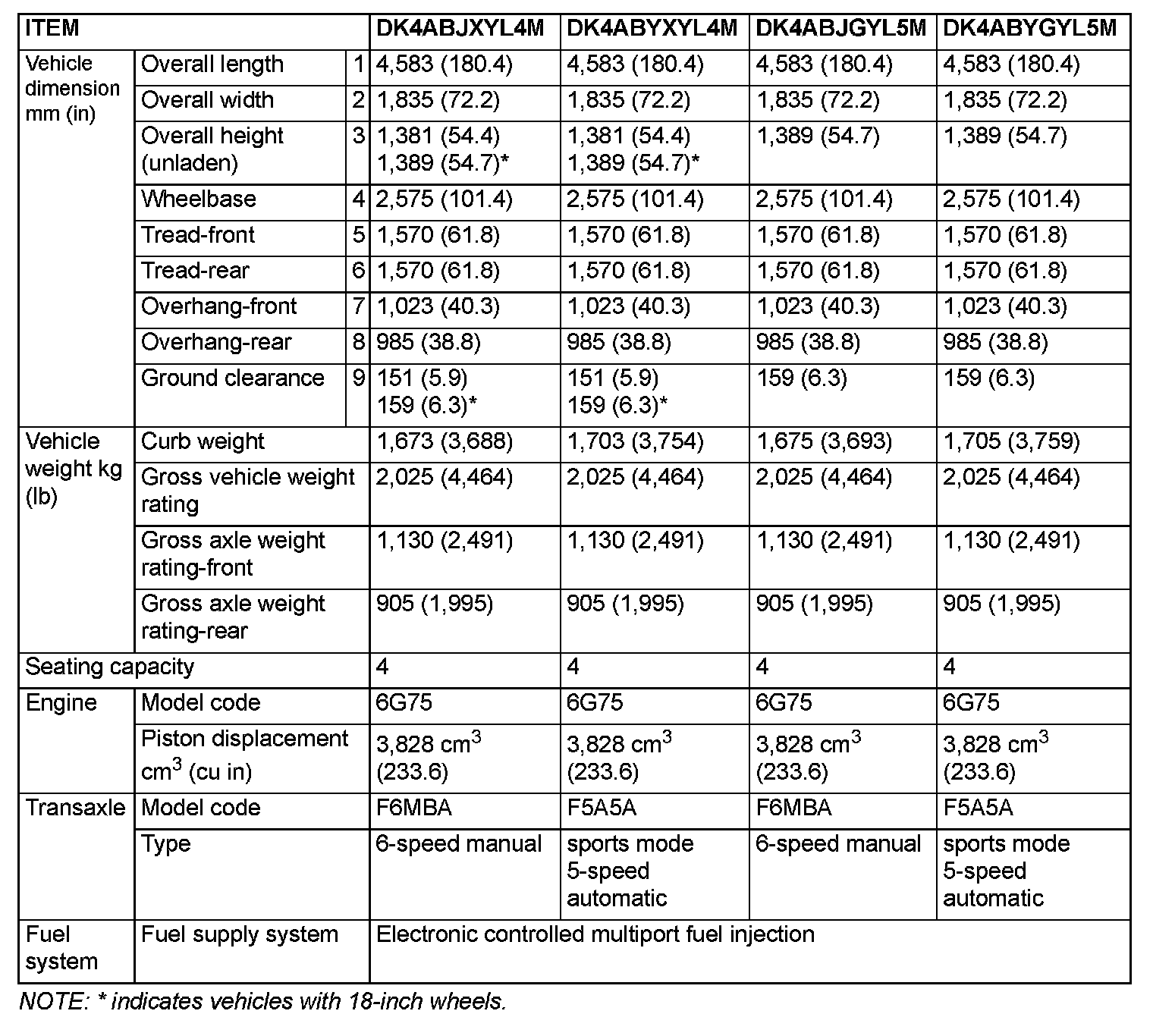

GENERAL SPECIFICATIONS (3.8L ENGINE)





[ECLIPSE SPYDER]

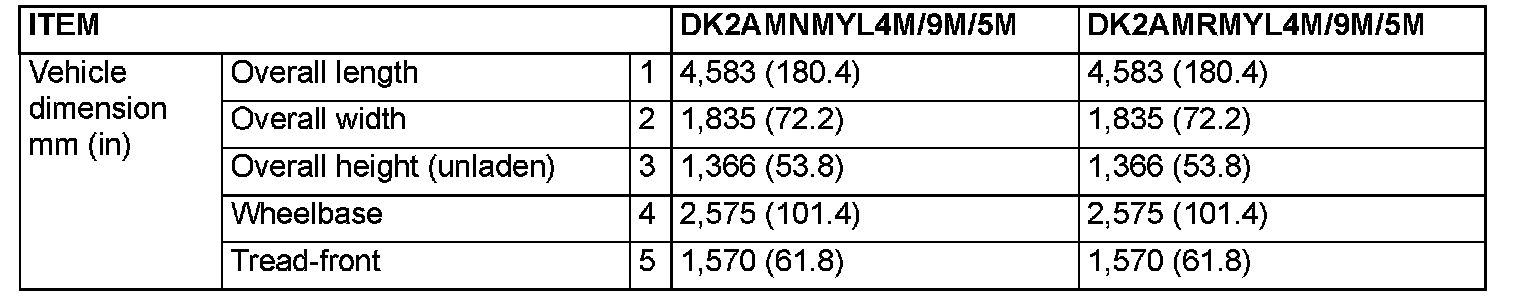

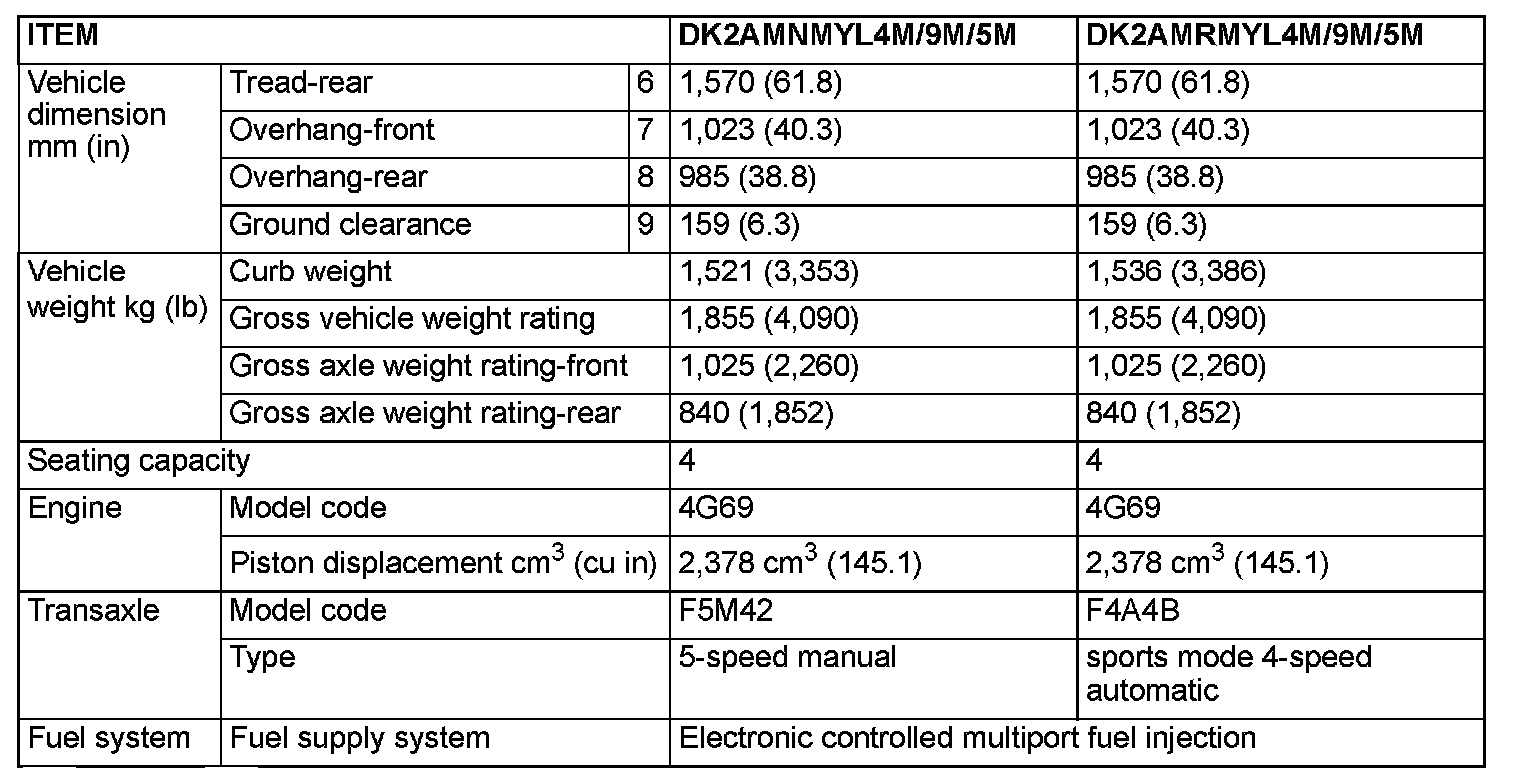

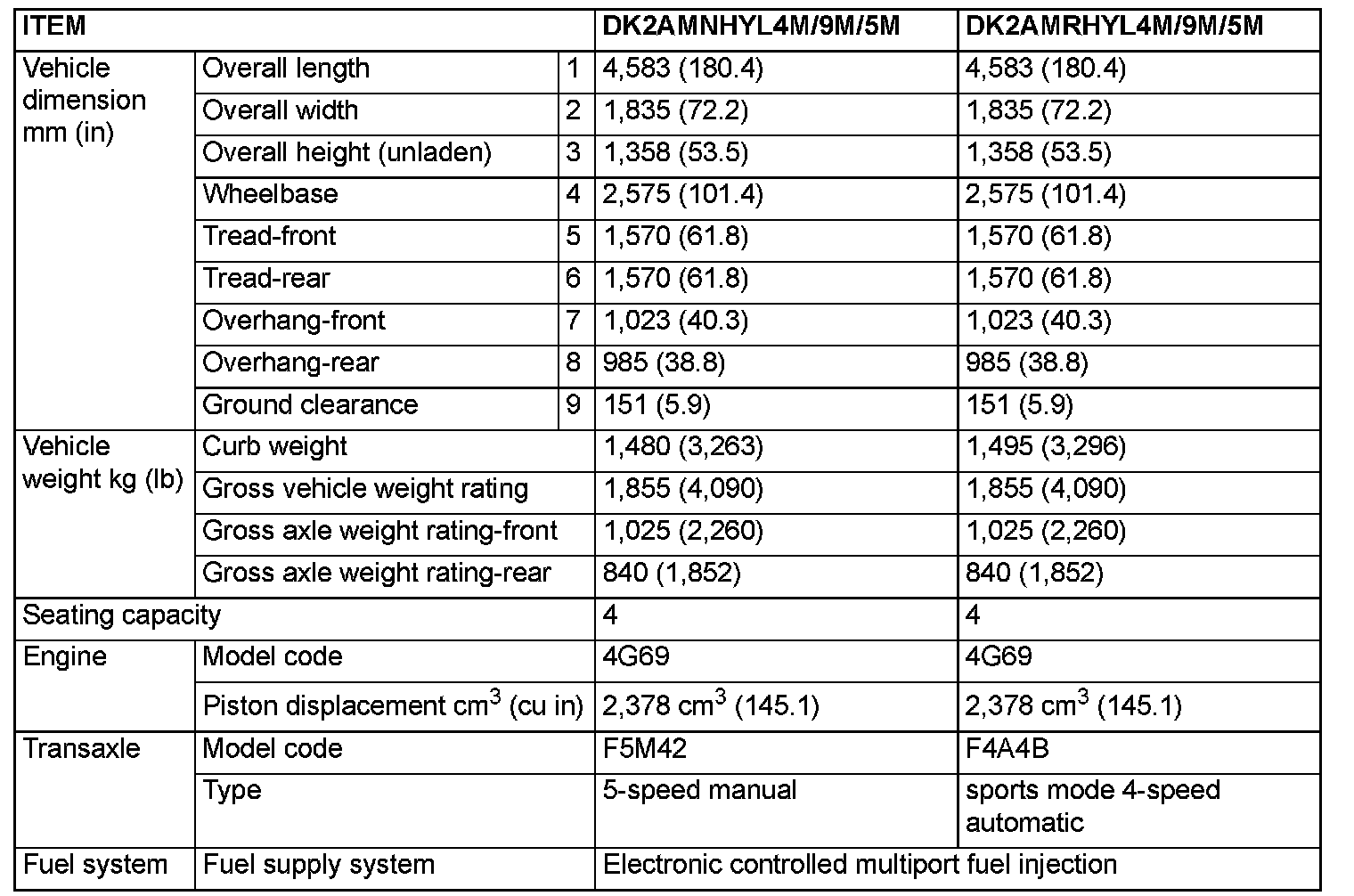

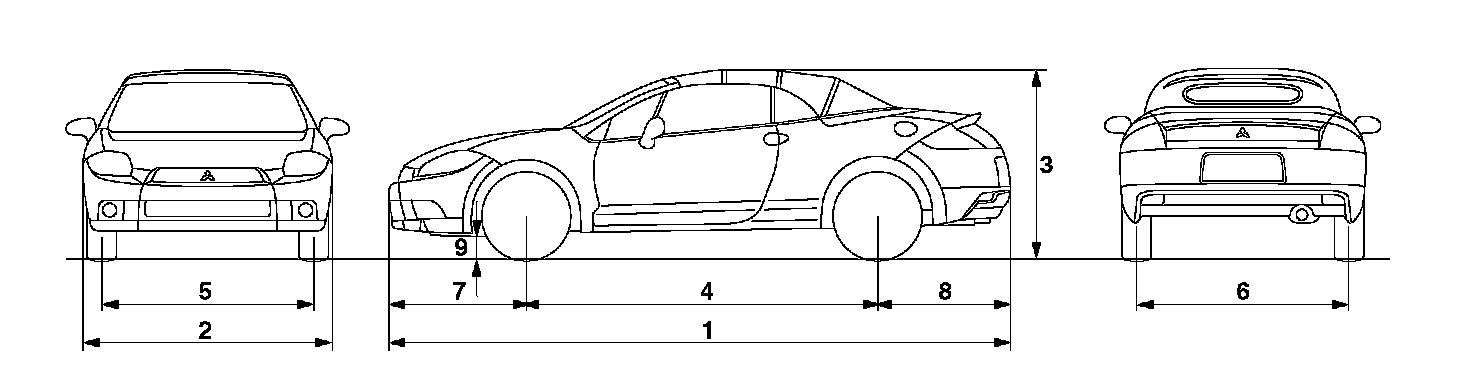

GENERAL SPECIFICATIONS (2.4L ENGINE)

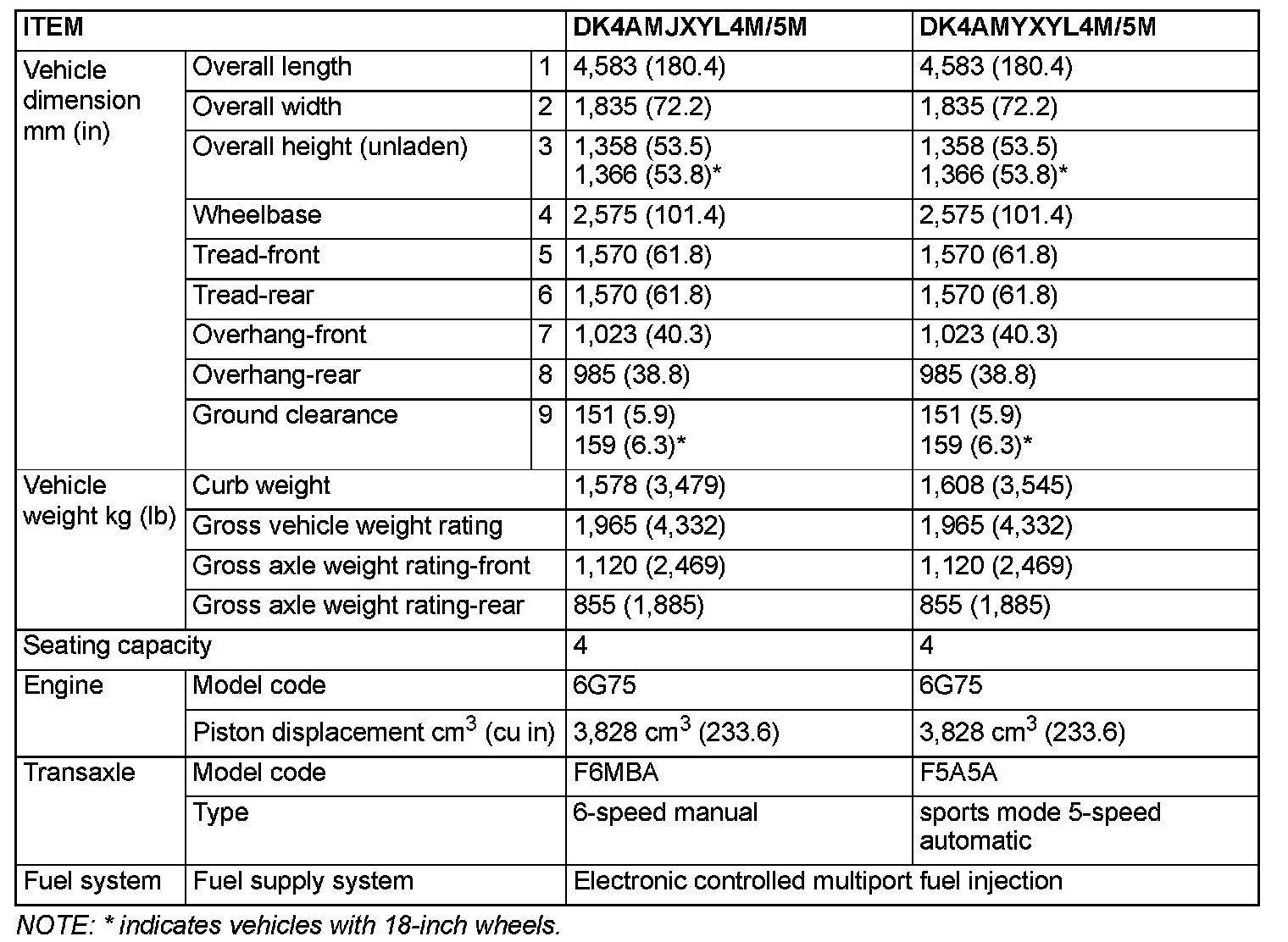

GENERAL SPECIFICATIONS (3.8L ENGINE)
