DTC B1702: Reception error of encrypted code: Notes

CAUTION: Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

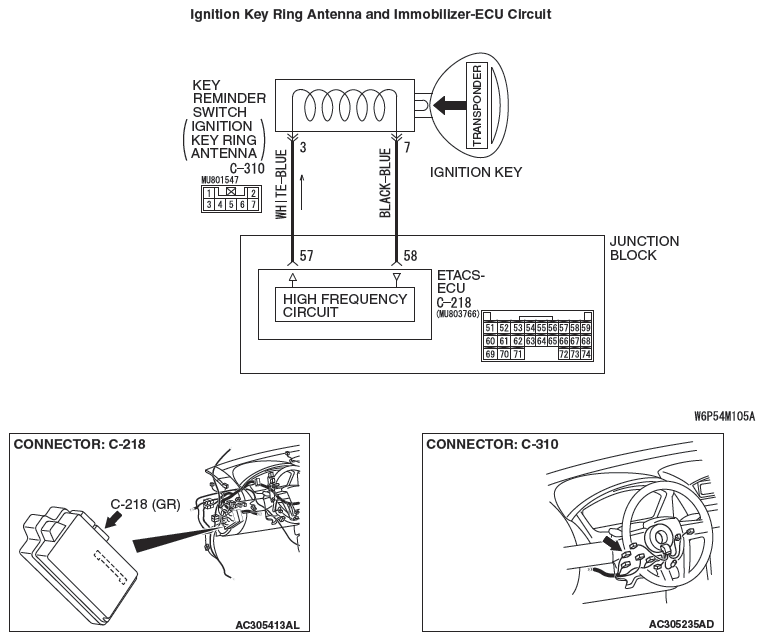

Fig 1: Ignition Key Ring Antenna And Immobilizer-ECU Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
