2.4L Engine

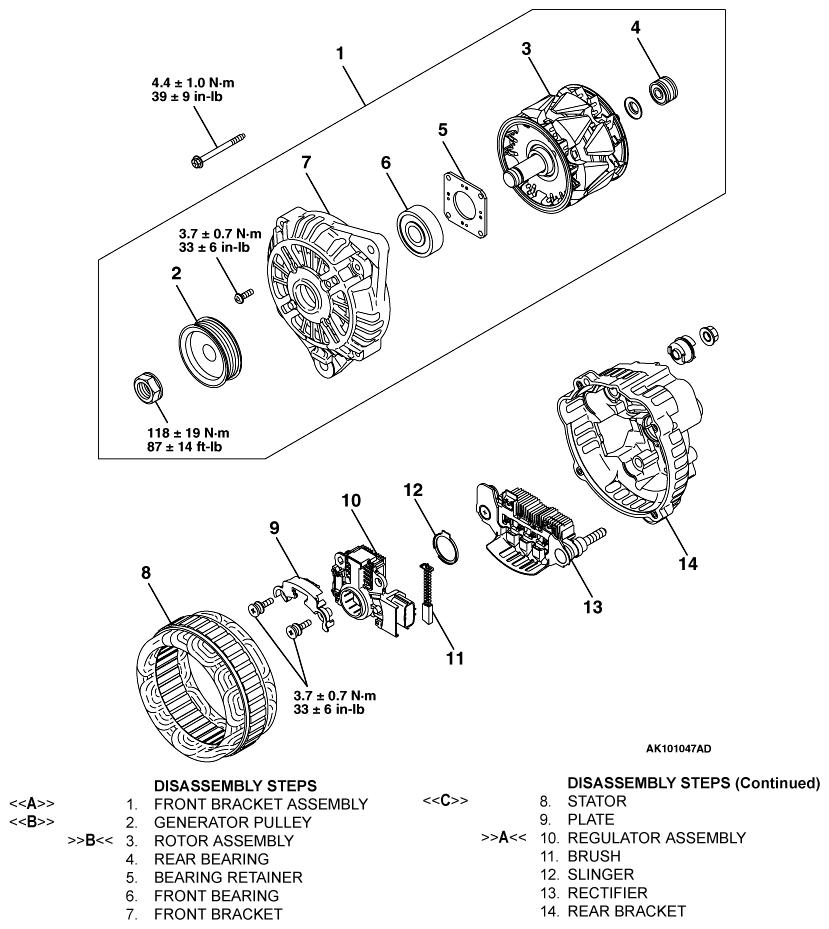

Fig 1: Generator Assembly Replacement Components With Torque Specifications (2.4L)
G06248647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
