Removal And Installation: Notes

WARNING: Before removing the driver's air bag module and steering wheel assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .

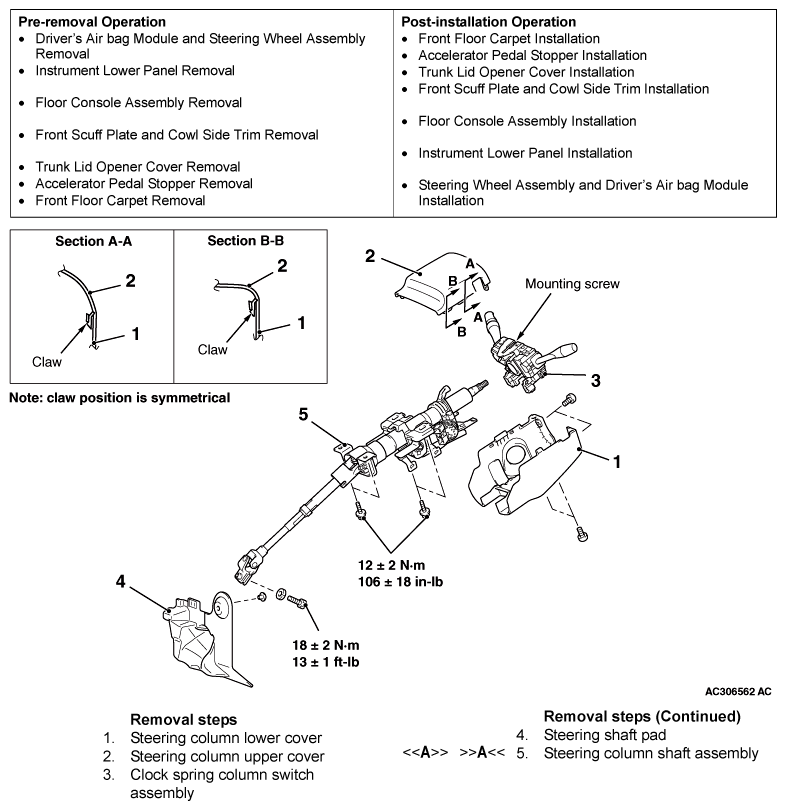

Fig 1: Steering Column Shaft Assembly With Torque Specifications
G06249295Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
