Removal And Installation <2.4L Engine>: Notes

CAUTION: When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).

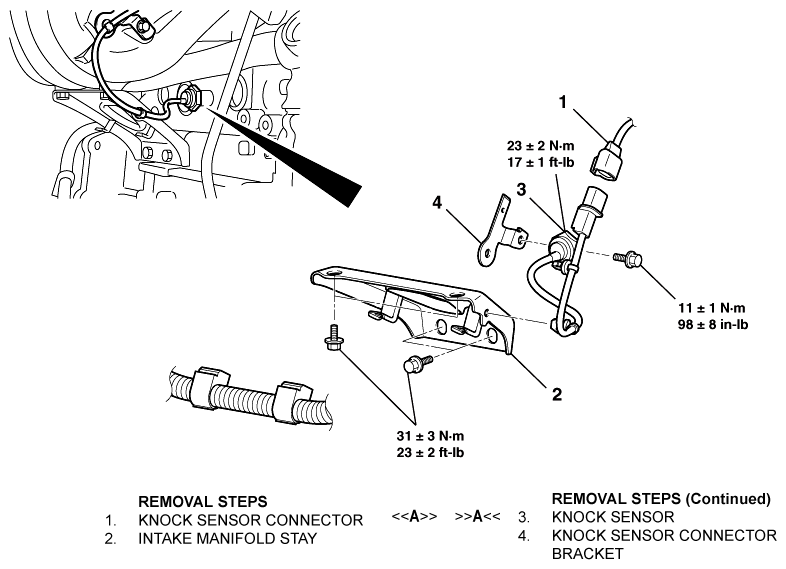

Fig 1: Lnock Sensor Connector & Intake Manifold Stay & Bracket With Torque Specifications (2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998773: Knock Sensor Wrench
