DTC P1723: Abnormality in Speed Sensor System Function: Notes

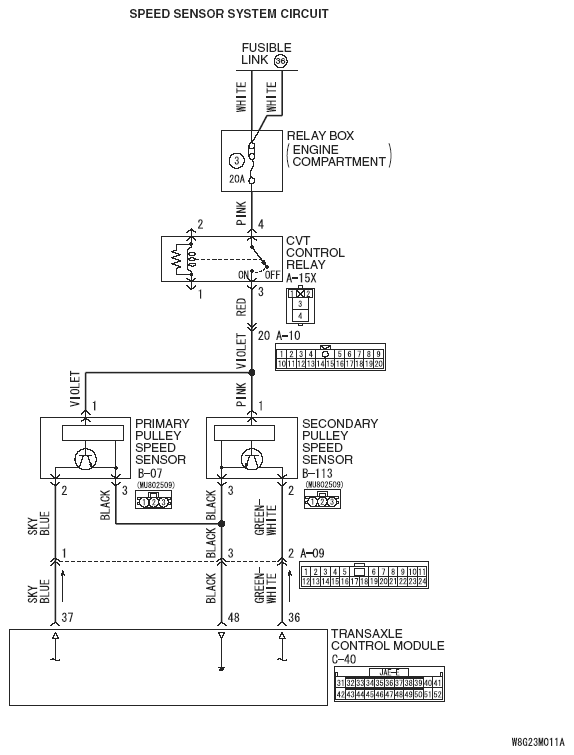

Fig 1: Speed Sensor System Circuit Diagram (1 Of 2)
G05375777Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

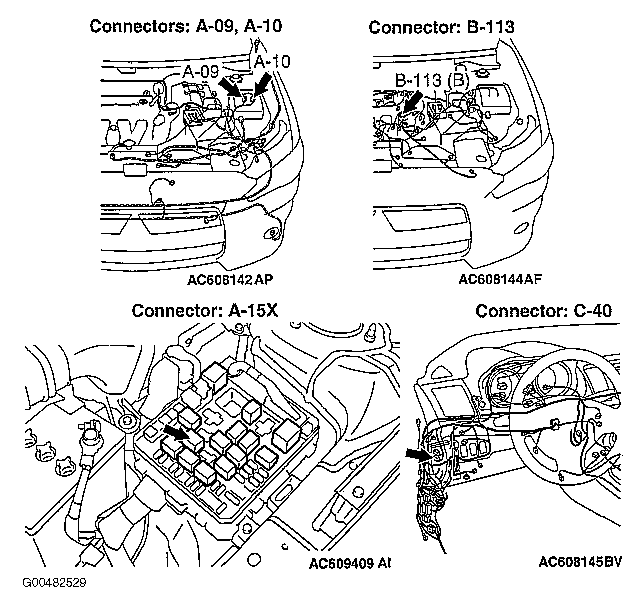

Fig 2: Speed Sensor System Circuit Diagram (2 Of 2)
G00482529Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
