CAUTION:
To store the change pulley ratio status of the transaxle assembly in the TCM memory, drive the vehicle at 3 km/h (1.9 mph) or faster after replacing the TCM.

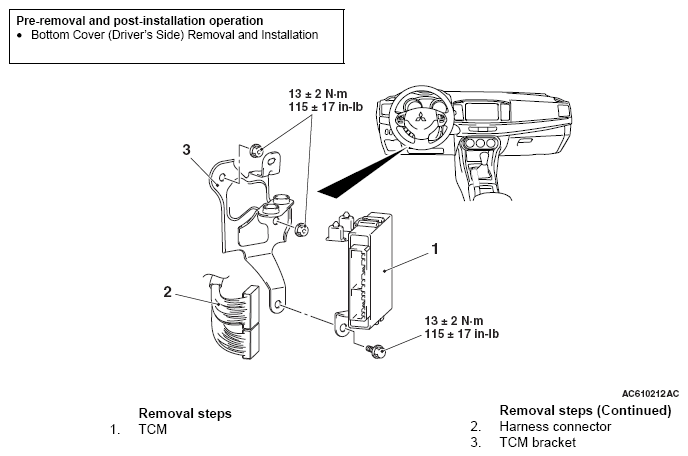

Fig 1: Transaxle Control Module (TCM) Replacement Components With Torque Specifications
