DTC U0215: P/W SW (DR) LIN timeout <Vehicles with central door locking system>: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

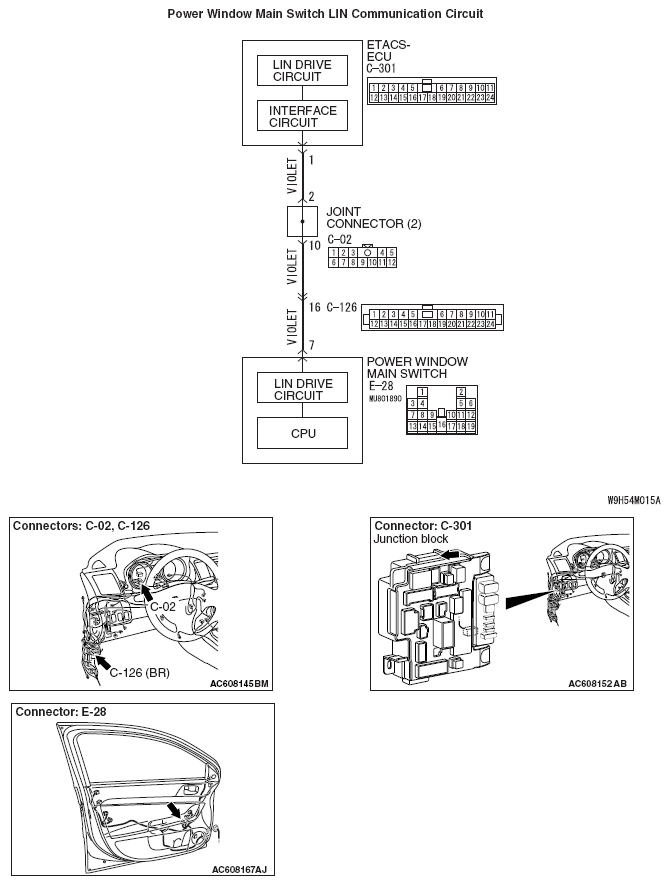

Fig 1: Power Window Main Switch LIN Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
