Disassembly And Assembly <15-Inch Front Disc Brake>: Notes

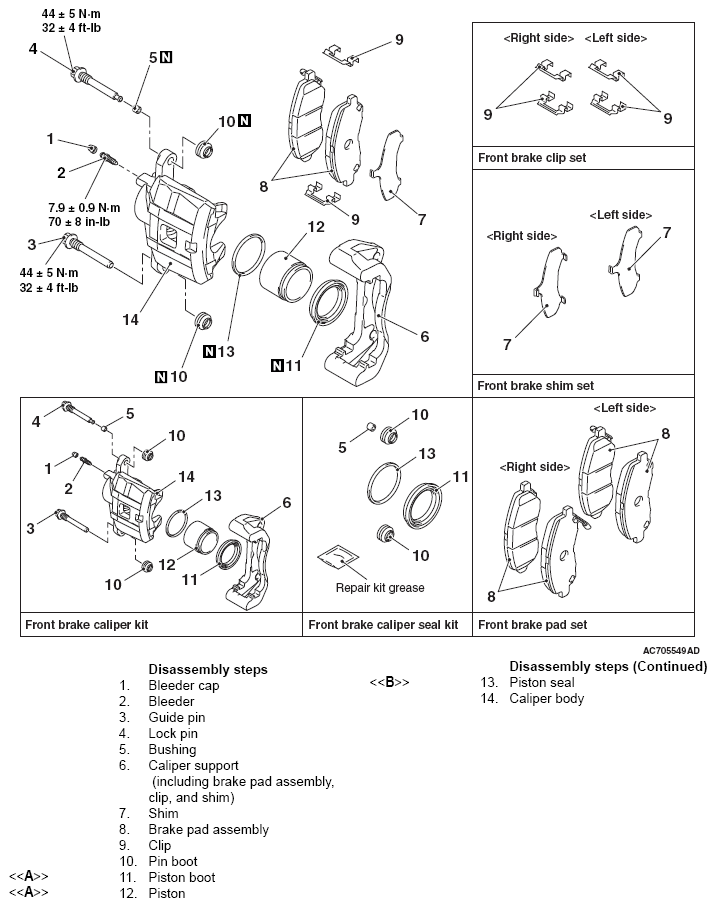

Fig 1: Exploded View Of Front Disc Brake Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

• The brake pad assembly with wear indicator is installed only to the inner side of the brake disc of the left-side brake at factory.
• As for the accessory pad set, the brake pad with wear indicator has been established to the inner side of the brake disc on both right and left.
• Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.
