Disassembly And Assembly <16-Inch Front Disc Brake (Except RALLIART)>: Notes

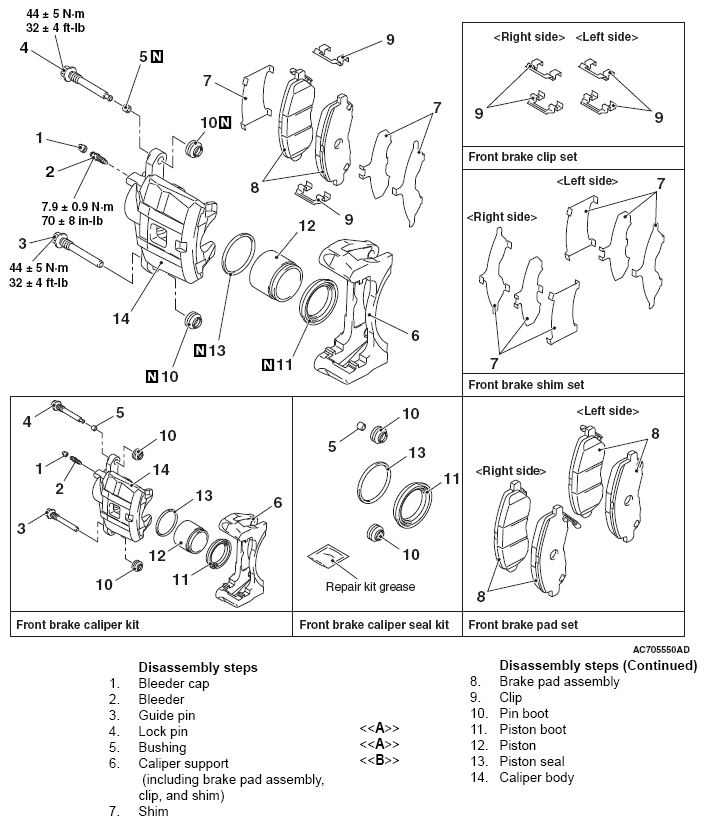

Fig 1: Exploded View Of Front Disc Brake Components With Torque Specification (Except Ralliart)
G05904691Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
