Disassembly And Assembly <16-Inch Front Disc Brake (RALLIART)>: Notes

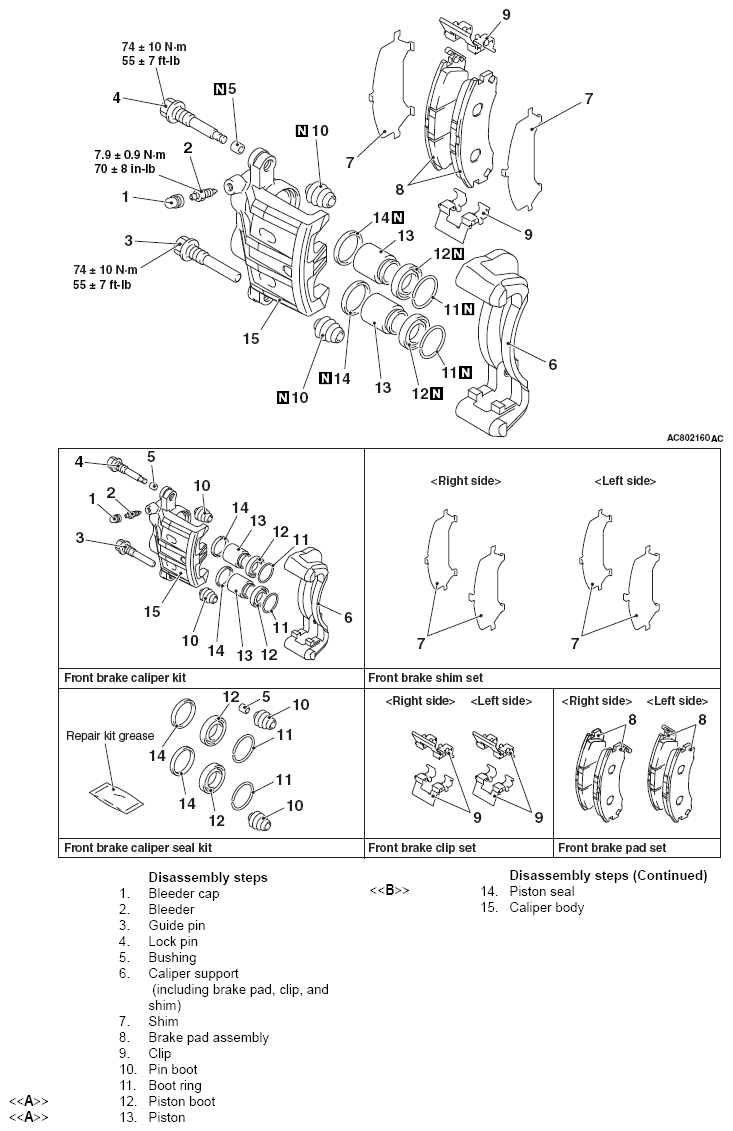

Fig 1: Exploded View Of Front Disc Brake Components With Torque Specification (Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

• The brake pad assembly with wear indicator is installed only to the inner side of the brake disc of the left-side brake at factory.
• As for the accessory pad set, the brake pad with wear indicator has been established to the inner side of the brake disc on both right side brake and left side brake.
• Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.
