Disassembly And Assembly <Fwd>: Notes

CAUTION: As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassembled.

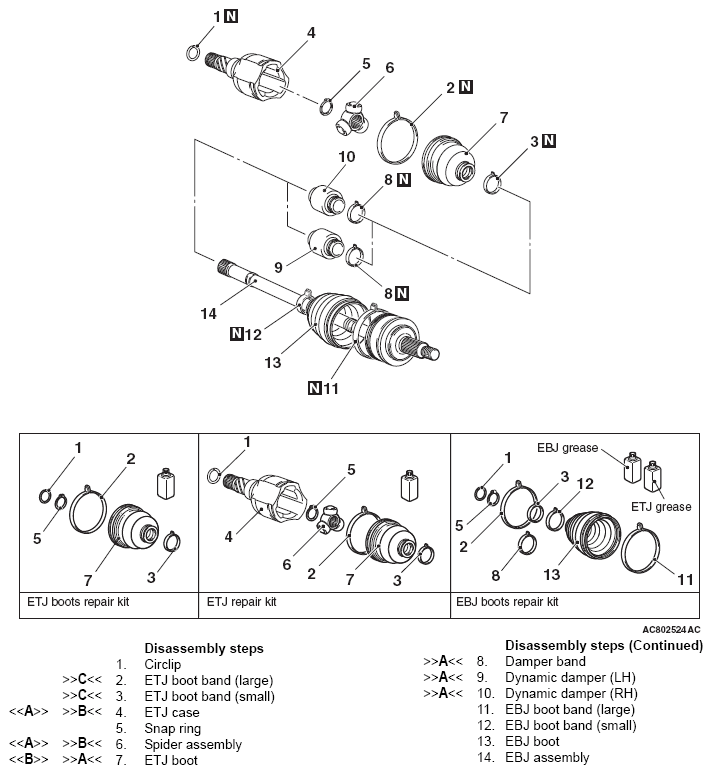

Fig 1: Exploded View Of Driveshaft Assembly (FWD)
G05904319Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
