Removal And Installation: Notes

CAUTION:

The magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it. <Vehicles with ABS>
When removing and installing the front wheel hub assembly, make sure that the magnetic encoder for wheel speed detection (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage. <Vehicles with ABS>
When removing and installing the front wheel speed sensor, make sure that the pole piece at the end does not contact with surrounding parts to avoid damage. <Vehicles with ABS>
The parts indicated by * are the nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

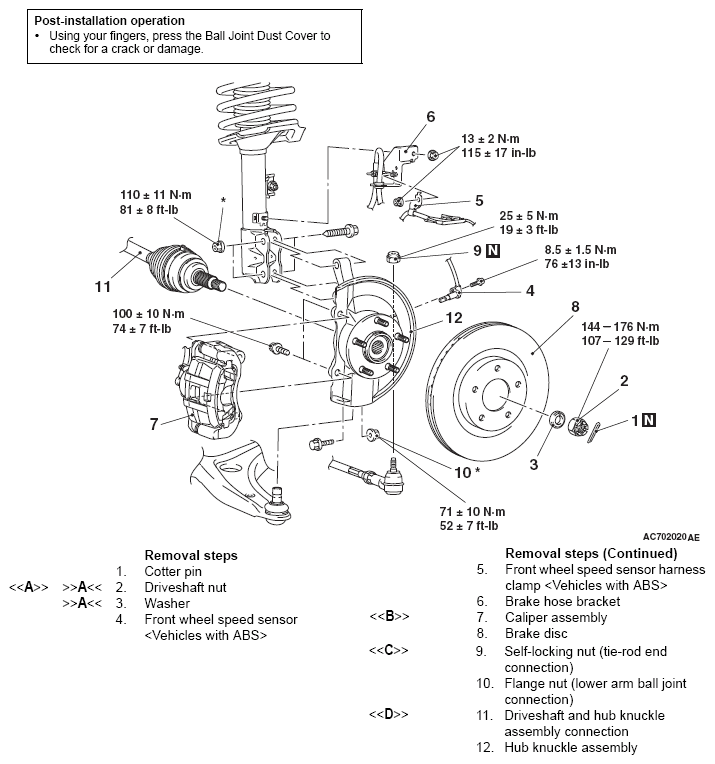

Fig 1: Front Axle Hub Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
