Control Unit

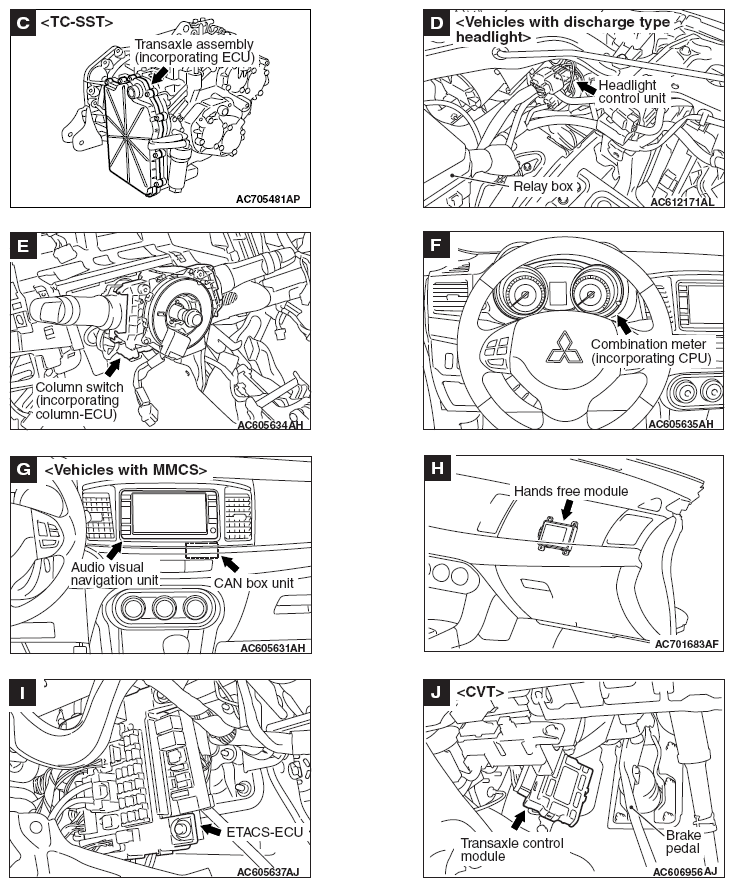

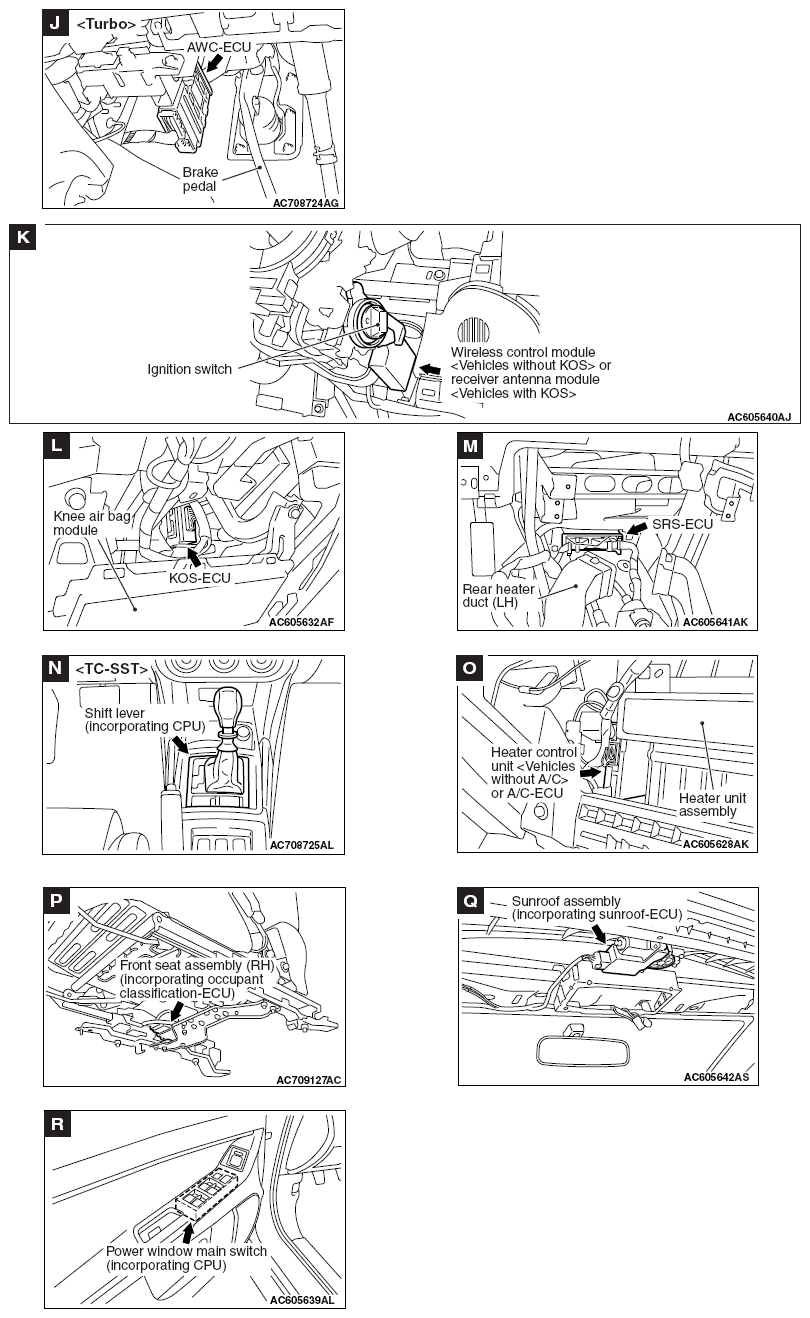

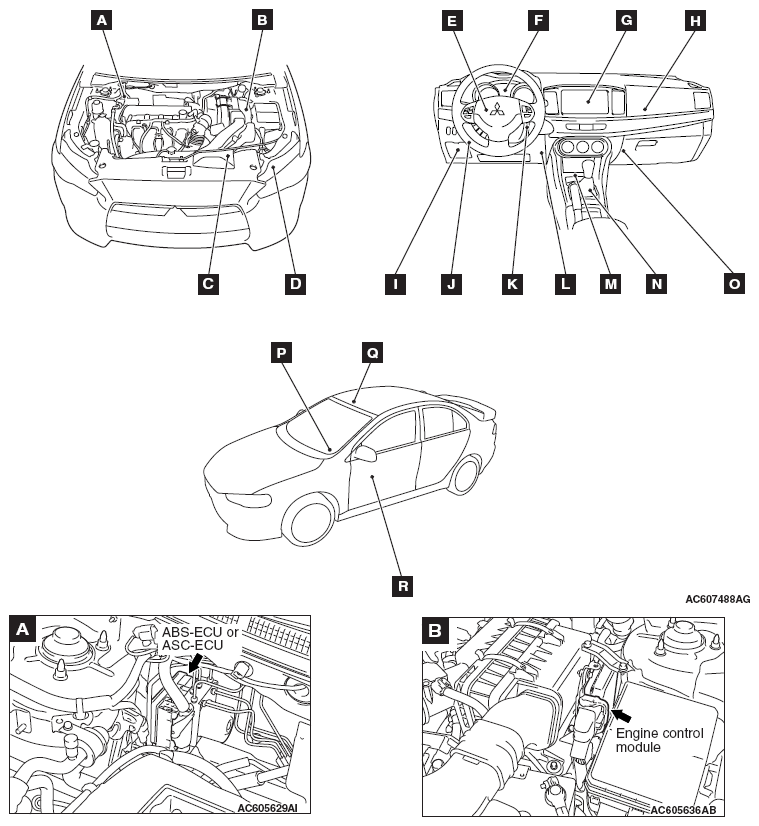

CONTROL UNIT REFERENCE CHART
| Name | Symbol | Name | Symbol |
|---|---|---|---|
| A/C-ECU | O | Headlight control unit < Vehicles with discharge type headlight > | D |
| ABS-ECU | A | Heater control unit < Vehicles without A/C > | O |
| ASC-ECU | A | KOS-ECU | L |
| Audio visual navigation unit < Vehicles with MMCS > | G | Power window main switch (incorporating CPU) | R |
| AWC-ECU < Turbo > | J | Receiver antenna module < Vehicles with KOS > | K |
| CAN box unit < Vehicles with MMCS > | G | Shift lever (incorporating CPU) < TC-SST > | N |
| Column switch (incorporating column-ECU) | E | SRS-ECU | M |
| Combination meter (incorporating CPU) | F | Sunroof motor assembly (incorporating CPU) | Q |
| Engine control module | B | Transaxle assembly < TC-SST > | C |
| ETACS-ECU | I | Transaxle control module < CVT > | J |
| Front seat assembly (RH) (incorporating occupant classification-ECU) | P | Wireless control module < Vehicles without KOS > | K |
| Hands free module | H |
