DTC B1B02: Driver's Air Bag Module (1st squib) System (Squib Circuit Open); DTC B1B06: Driver's Air Bag Module (2nd squib) System (Squib Circuit Open): Notes

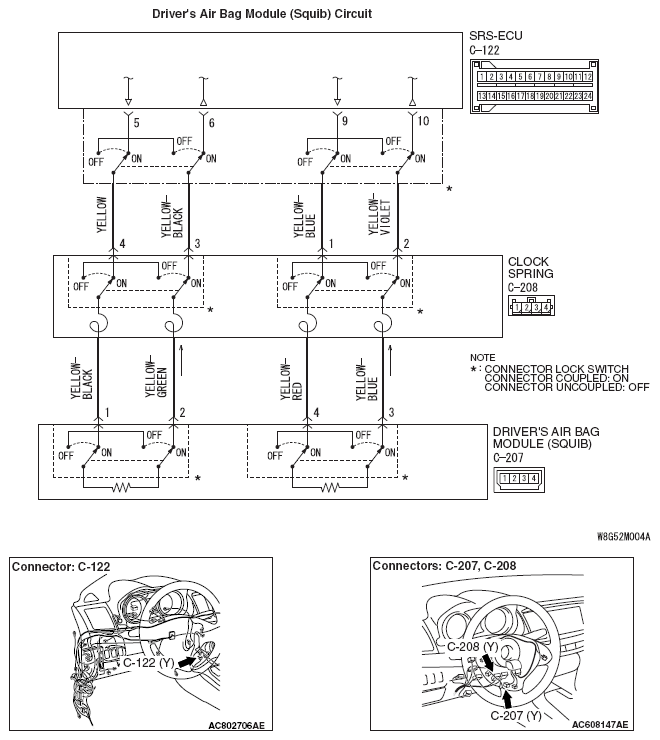

Fig 1: Driver's Air Bag Module (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1B02 <1st squib> or B1B06 < 2nd squib > is set in the SRS-ECU, always diagnose the CAN main bus line.
