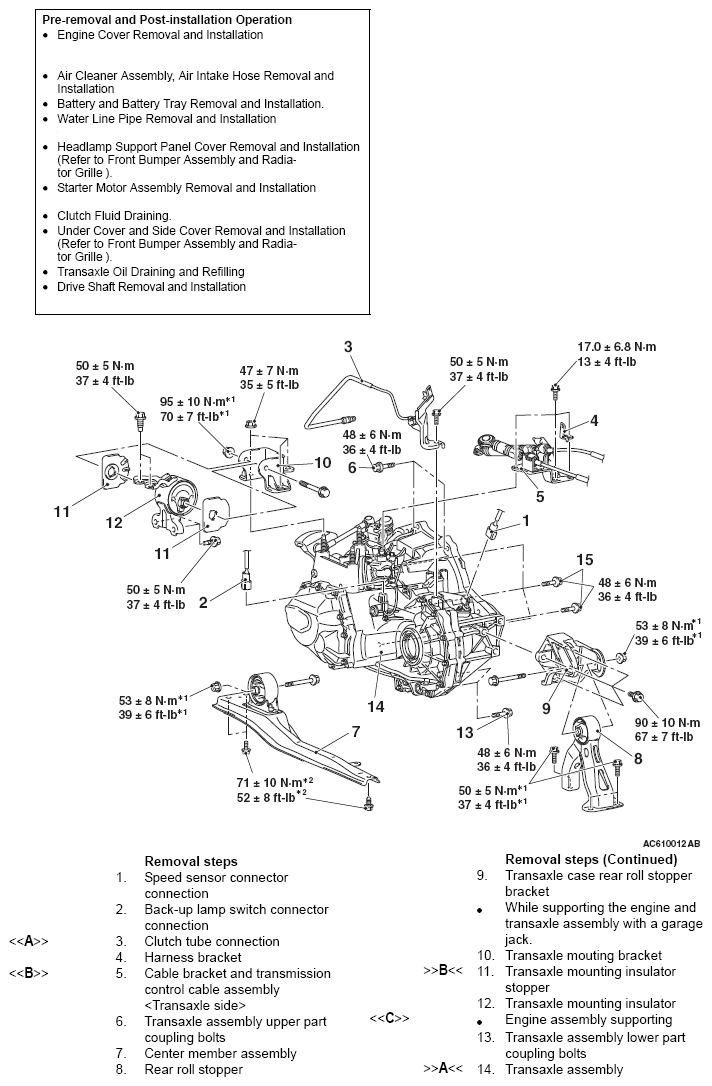

Removal And Installation: Notes
CAUTION:
- The part indicated by the *1 mark should be temporarily tightened, and then fully tightened with the engine and transaxle assembly weight applied on the vehicle body.
- The parts indicated by the *2 are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from bearing and thread surfaces, and tighten them to the specified torque.
Required Special Tools:
- MB990900 or MB991164: Door adjusting wrench
- MB991895: Engine Hanger
- MB991928: Engine Hanger
- MB991930: Joint (90)
- MB991932: Foot (standard)
- MB992201: Engine hanger plate
