Removal And Installation: Notes

WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the gearshift cable and select cable assembly.

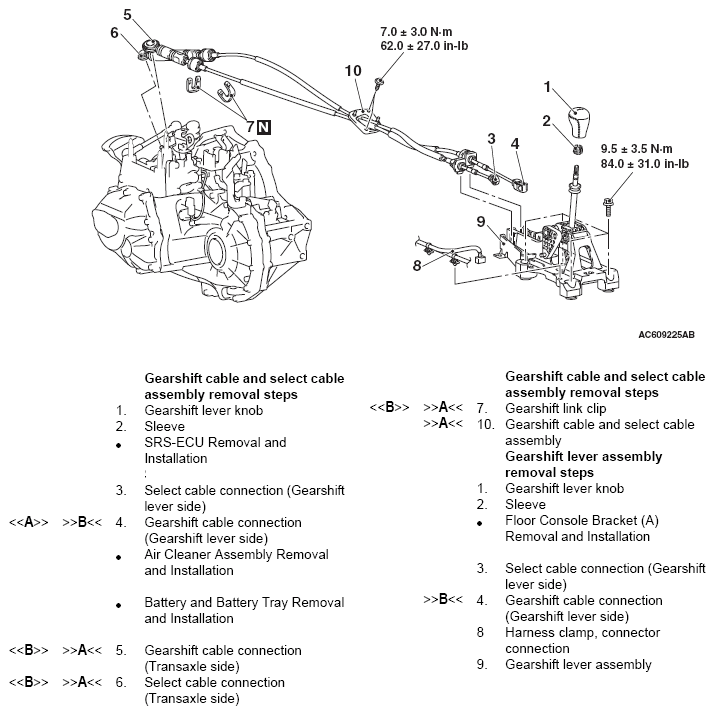

Fig 1: Gearshift Cable And Select Cable Assembly With Torque Specification
G05903867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
