DTC C1608: Implausible diagnosis data: Notes

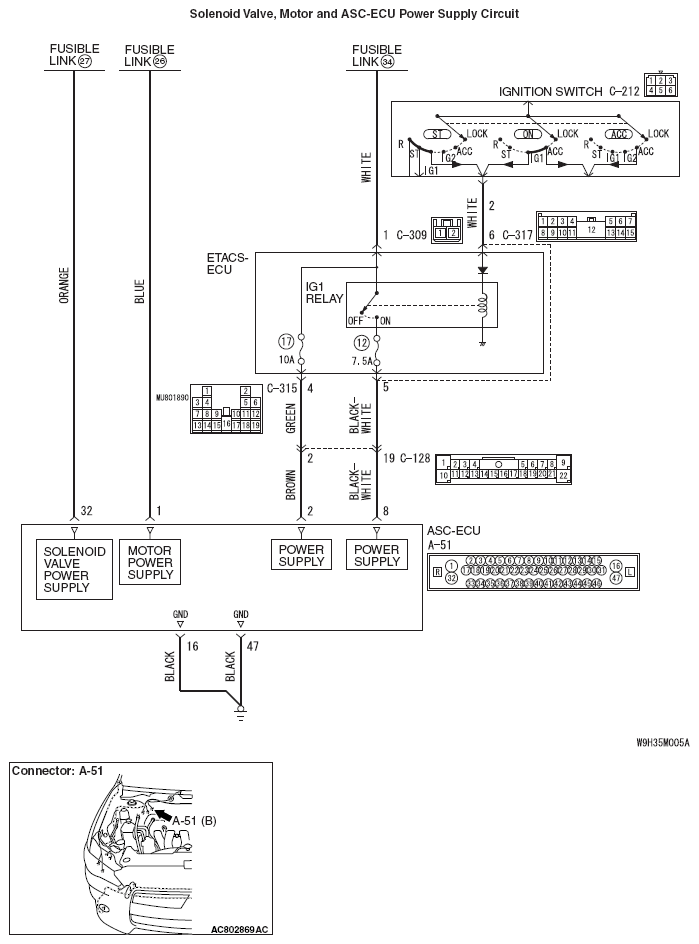

Fig 1: Solenoid Valve, Motor And ASC-ECU Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

If there is any problem in the CAN bus lines, an incorrect DTC may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to DIAGNOSTIC TROUBLE CODE DIAGNOSIS ).
Whenever ECU is replaced, ensure that the CAN bus lines are normal.
When the hydraulic unit (integrated with ASC-ECU) is replaced, always carry out the calibration of the steering wheel sensor, the G and yaw rate sensor and brake fluid pressure sensor (Refer to G AND YAW RATE SENSOR CALIBRATION , STEERING WHEEL SENSOR CALIBRATION and BRAKE FLUID PRESSURE SENSOR CALIBRATION ).
