Lancer ES, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Braking System (Abs)
>>
General Information
>>
System Configuration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Configuration

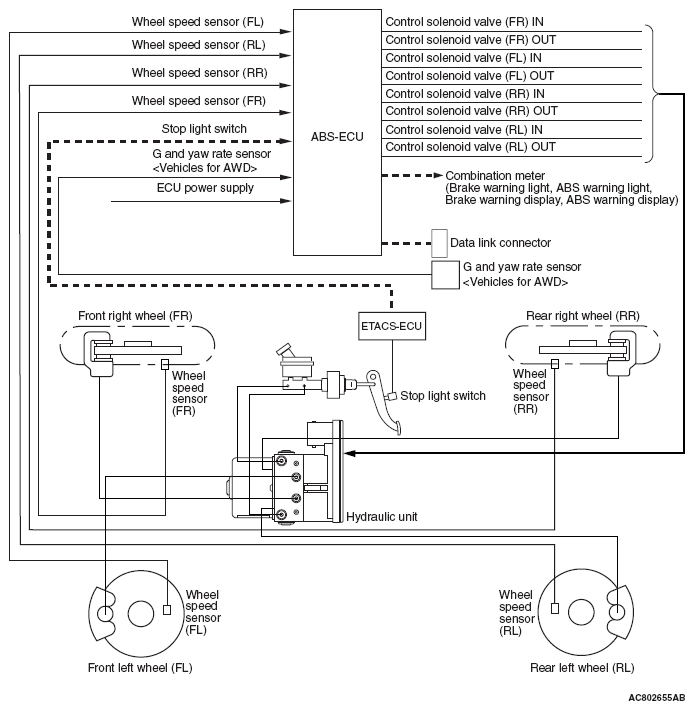

Fig 1: Anti-Lock Braking System (ABS) System Configuration Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Dashed lines indicate the CAN bus communication lines.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
