Disassembly And Assembly (2.0L Engine Non-Turbo, 2.4L Engine): Notes

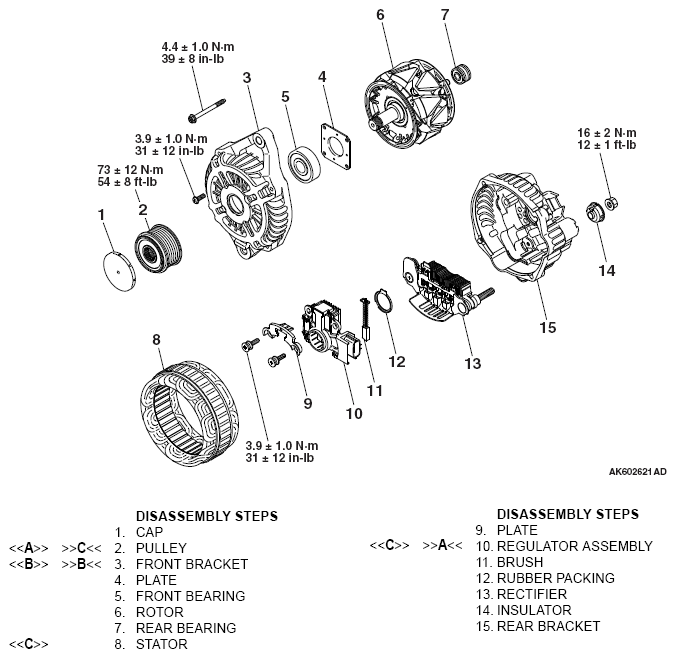

Fig 1: Generator Assembly Replacement Components - 2.0L Engine Non-Turbo, 2.4L Engine With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB992226: Serration Socket
