Removal And Installation (2.0L Engine Turbo): Notes

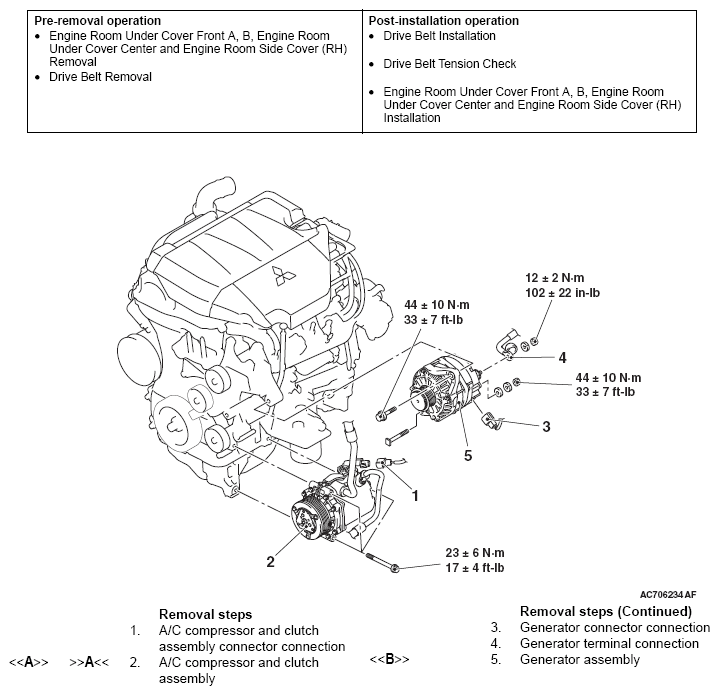

Fig 1: Generator Assembly Replacement Components - 2.0L Engine Turbo With Torque Specifications
G05903644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
