Removal And Installation: Notes

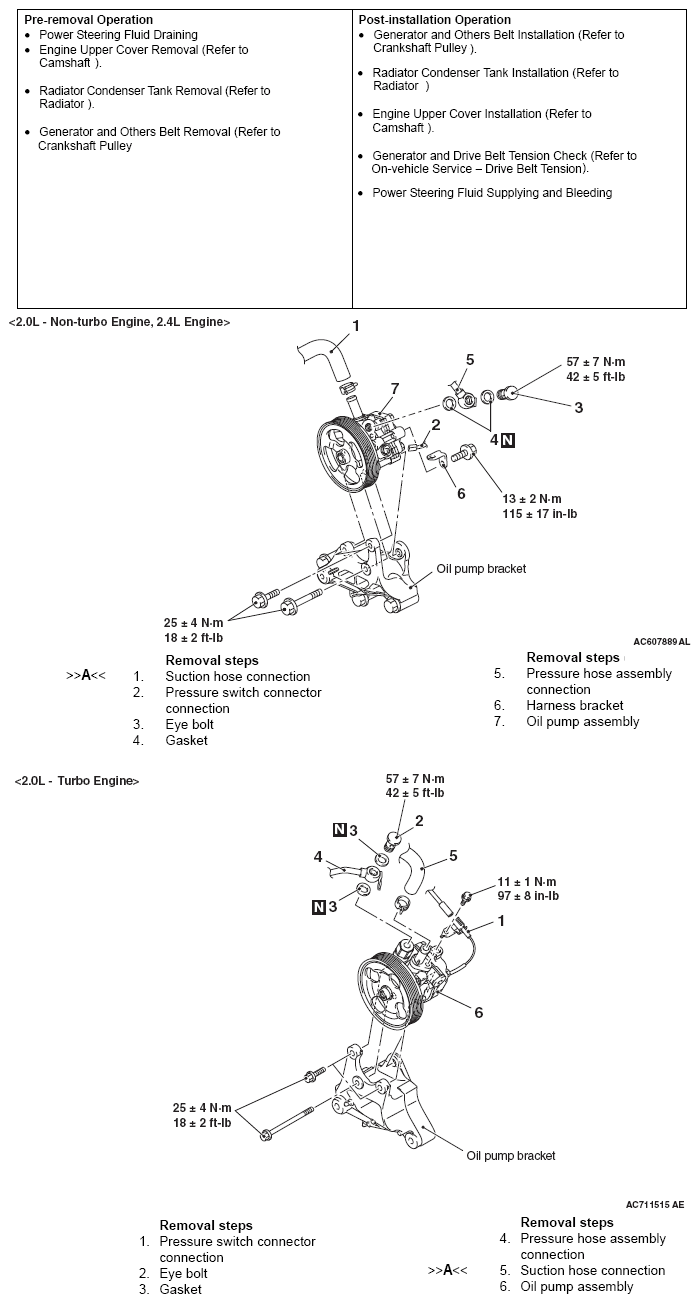

Fig 1: Power Steering Oil Pump Assembly Replacement Components With Torque Specifications
G05905073Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
