Removal And Installation: Notes

WARNING:

Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING or DRIVER'S AIR BAG MODULE AND CLOCK SPRING <RALLIART> .
When removing and installing the steering wheel, do not let it bump against the driver's air bag module.

CAUTION: After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION ). <Vehicles with ASC>

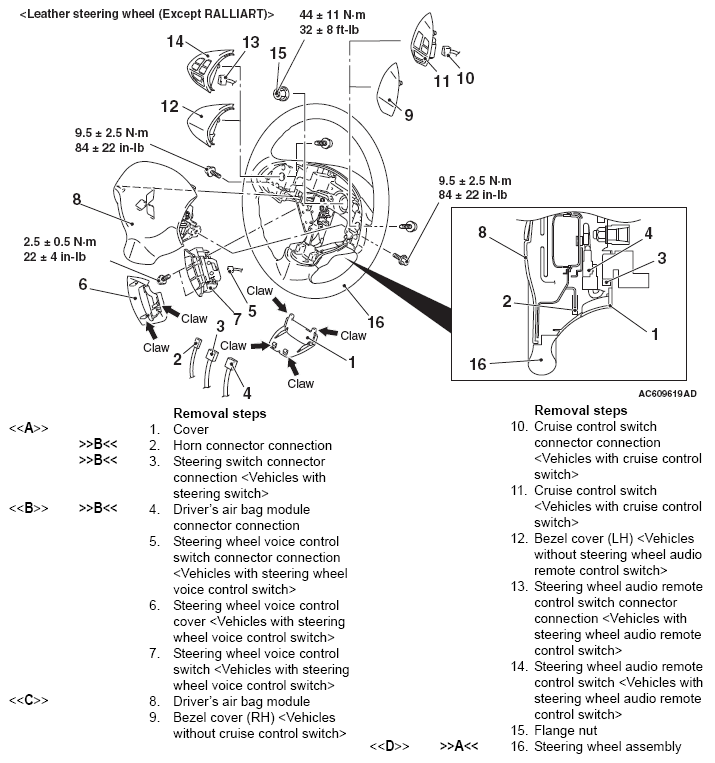

Fig 1: Steering Wheel Replacement Components With Torque Specifications (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

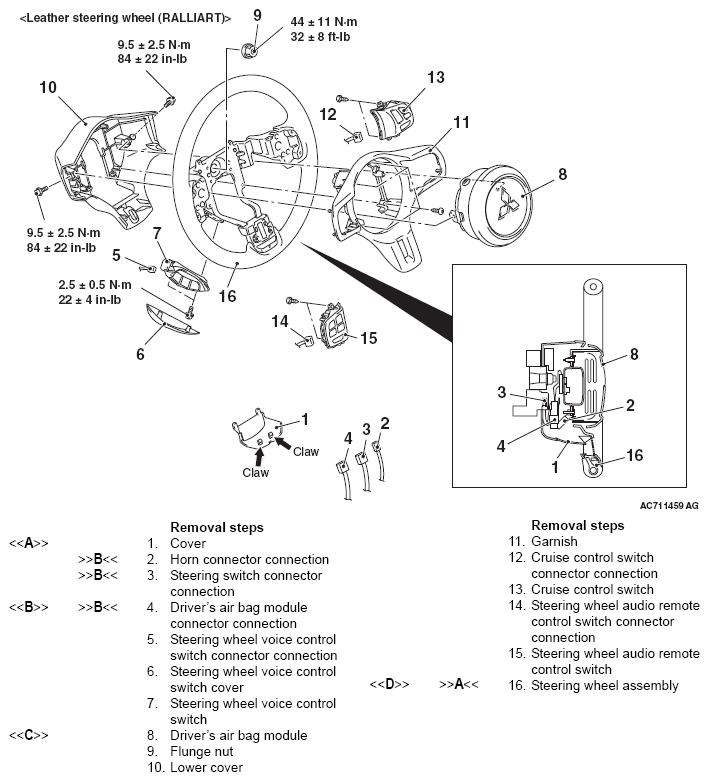

Fig 2: Steering Wheel Replacement Components With Torque Specifications (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

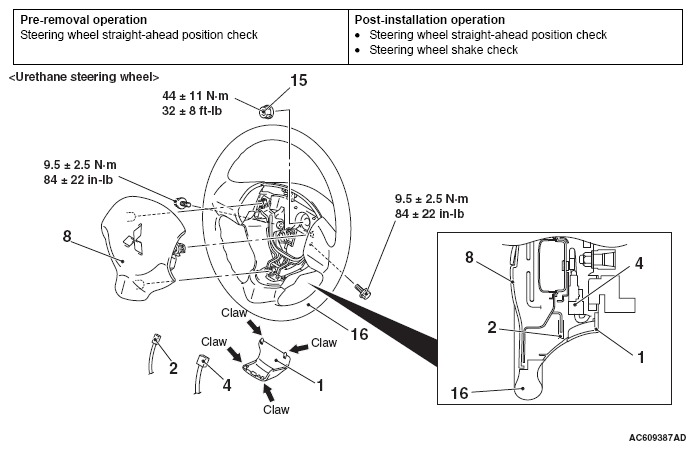

Fig 3: Steering Wheel Replacement Components With Torque Specifications (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990784: Ornament Remover
MB990803: Steering wheel puller
