Keyless Operating System (KOS)

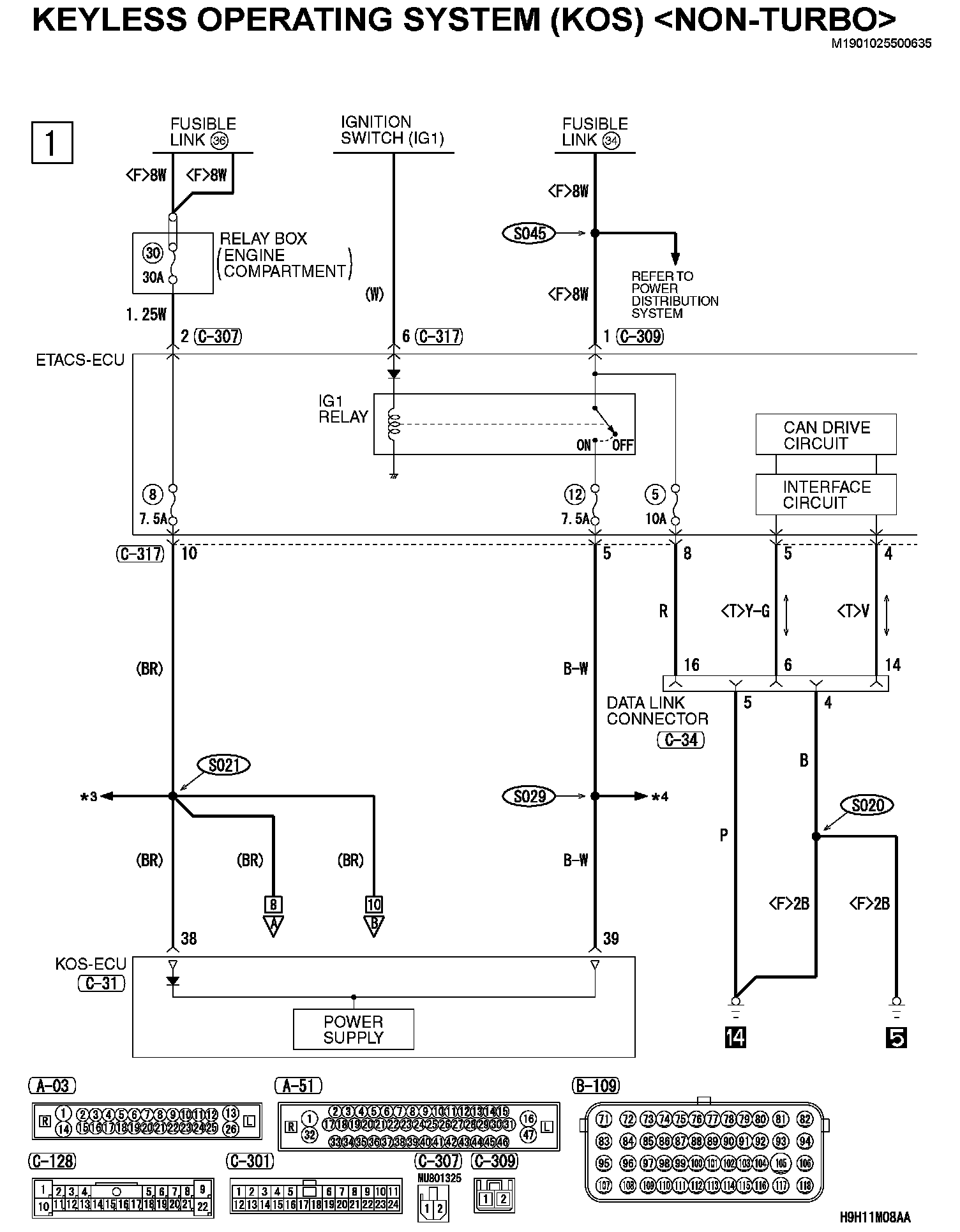

Keyless Operating System (KOS) (Part 1):

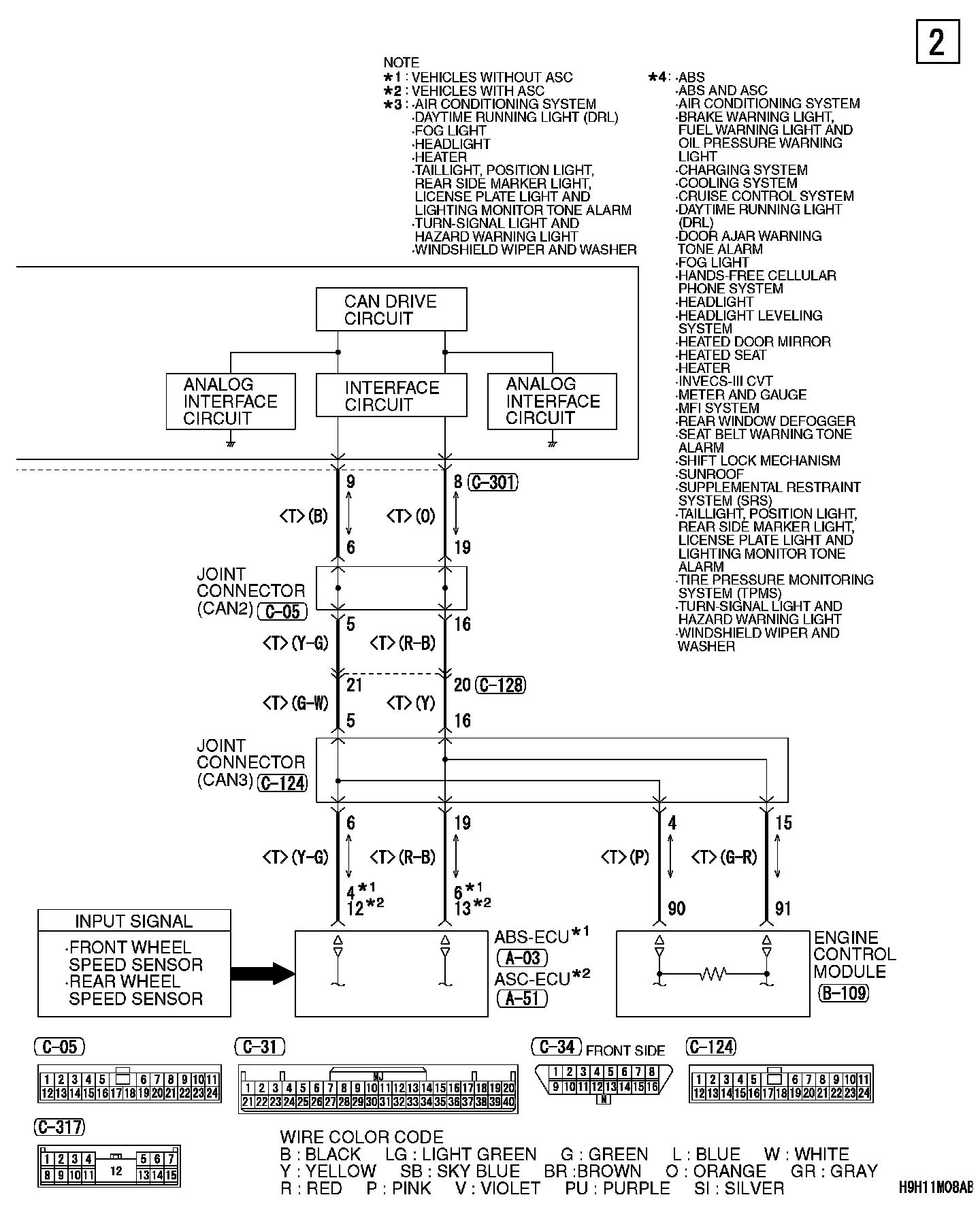

Keyless Operating System (KOS) (Part 2):

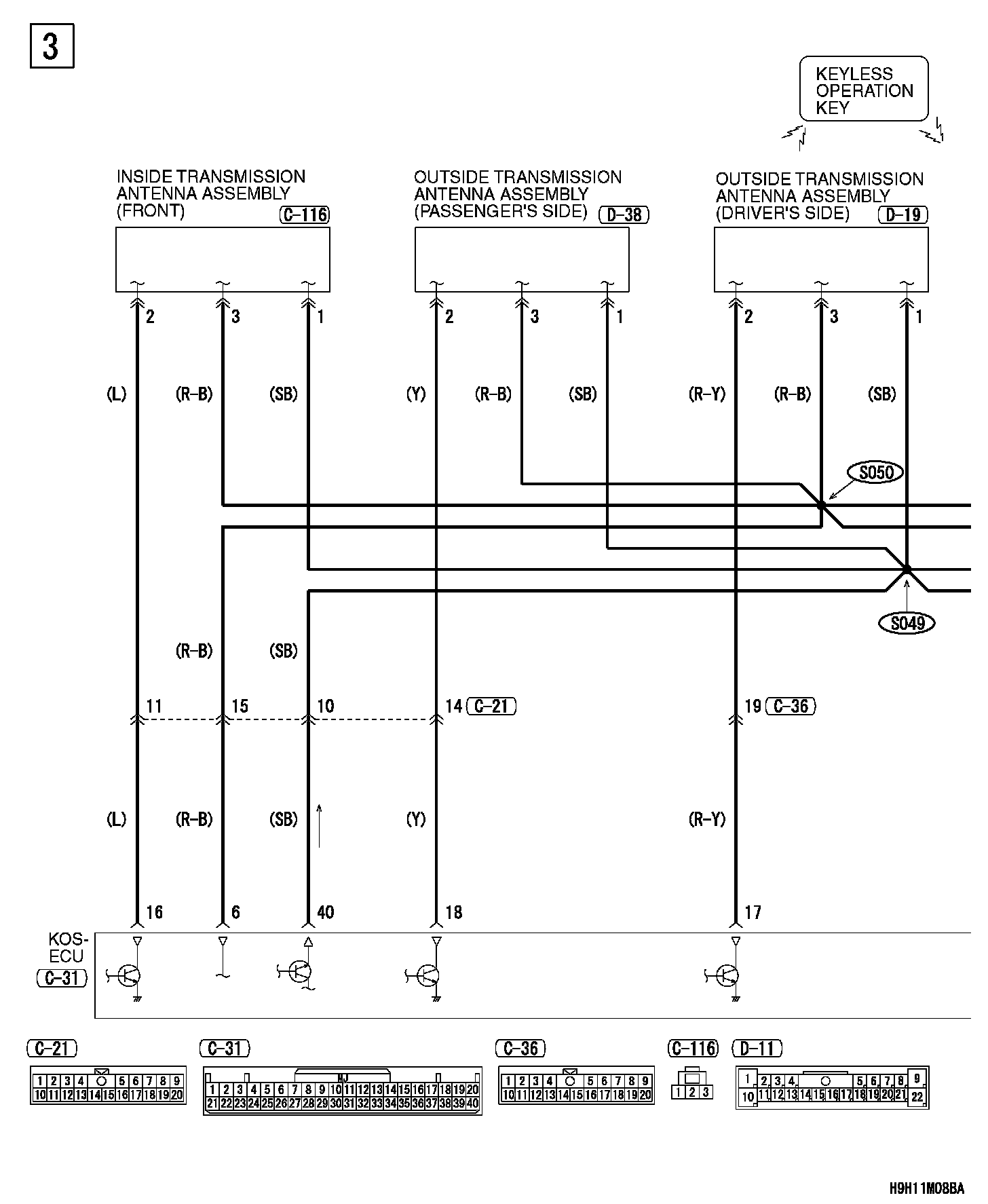

Keyless Operating System (KOS) (Part 3):

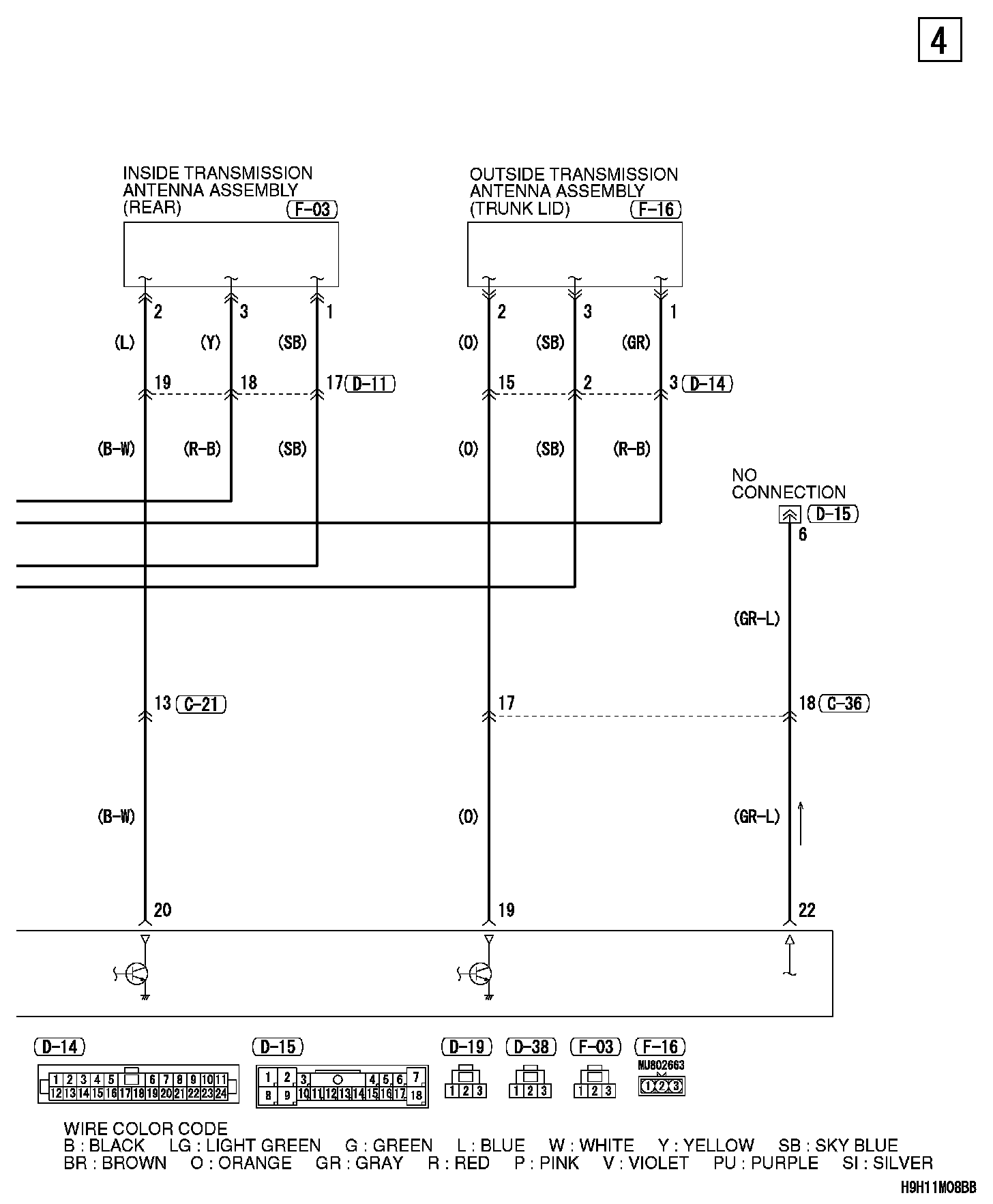

Keyless Operating System (KOS) (Part 4):

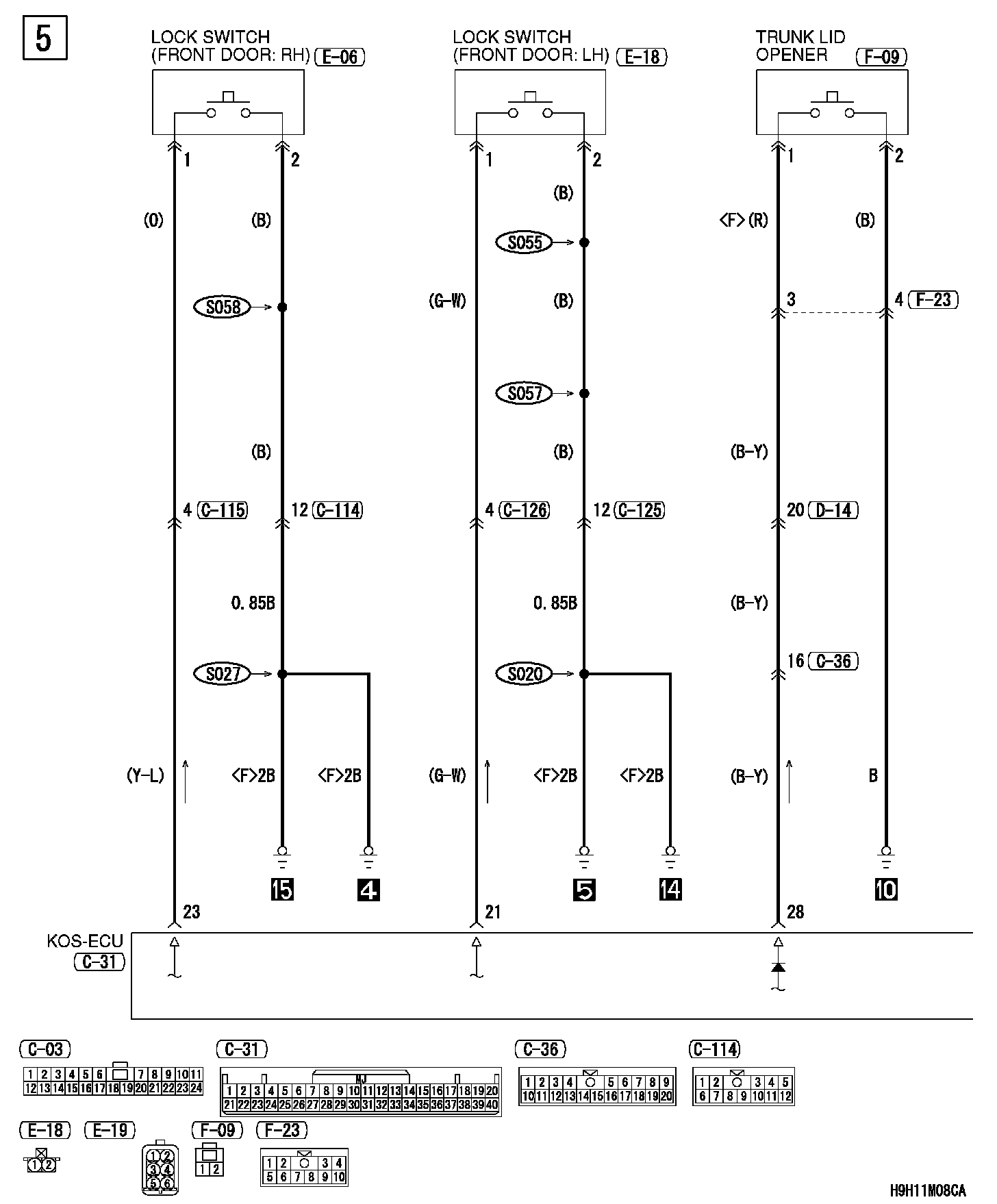

Keyless Operating System (KOS) (Part 5):

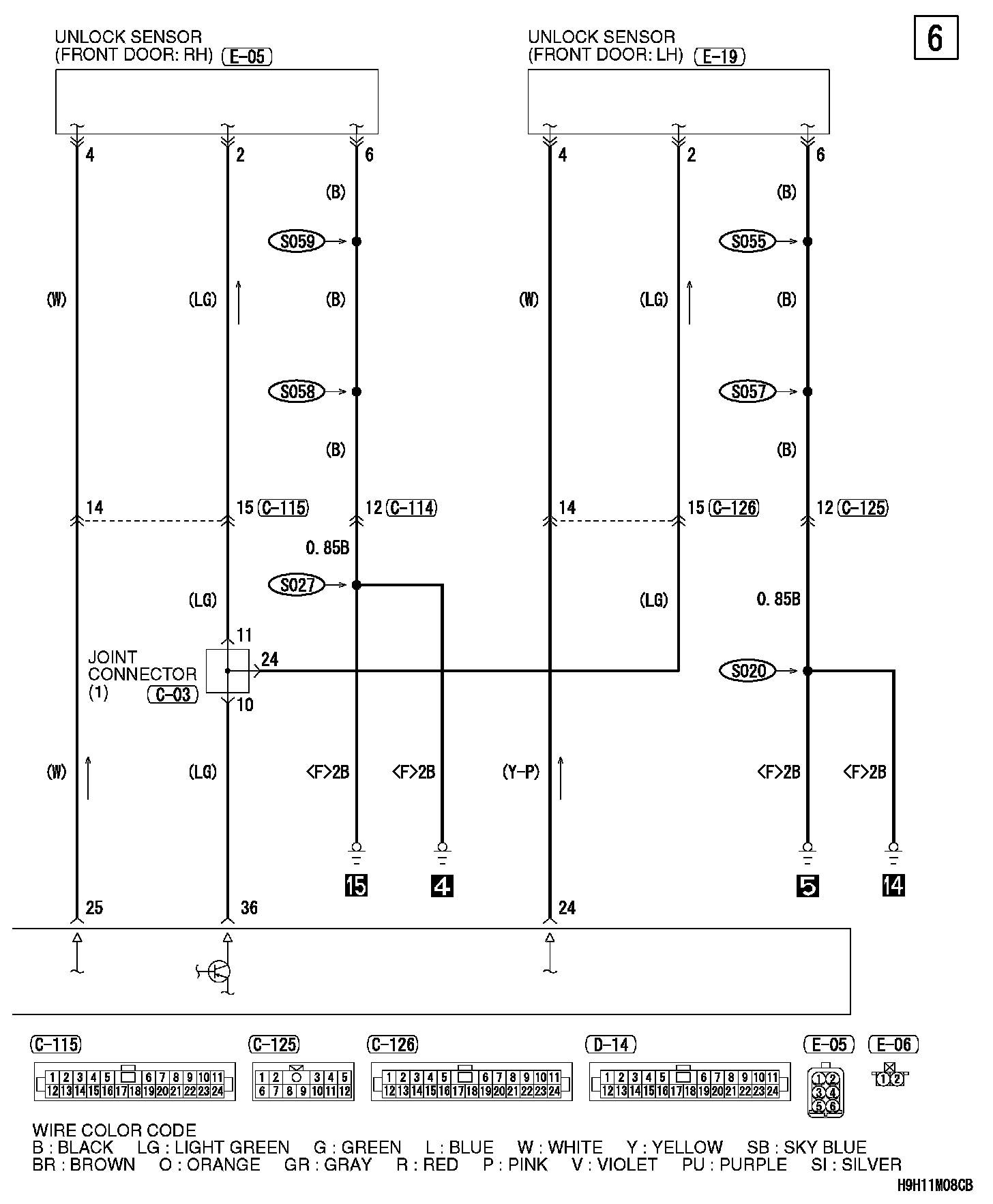

Keyless Operating System (KOS) (Part 6):

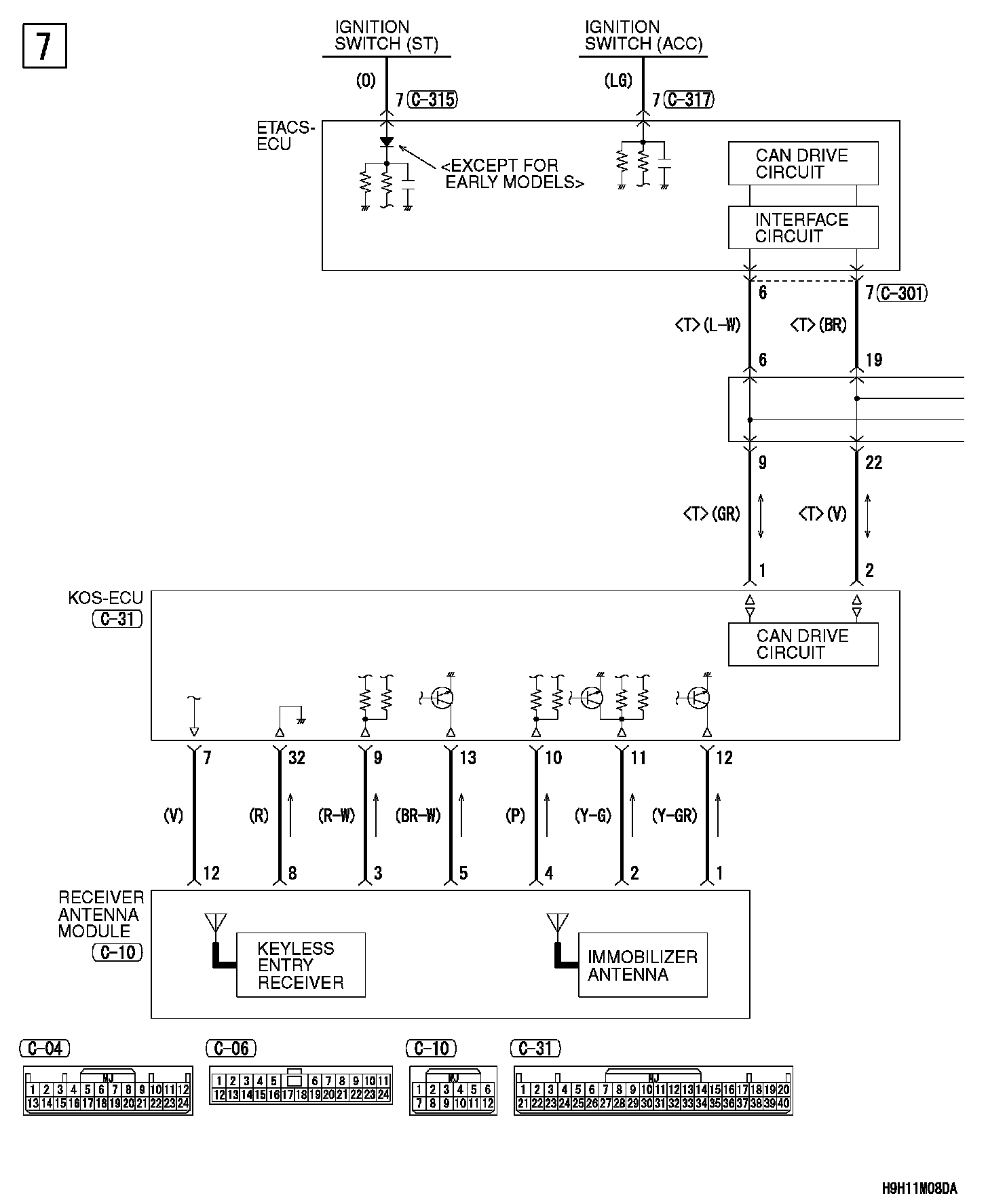

Keyless Operating System (KOS) (Part 7):

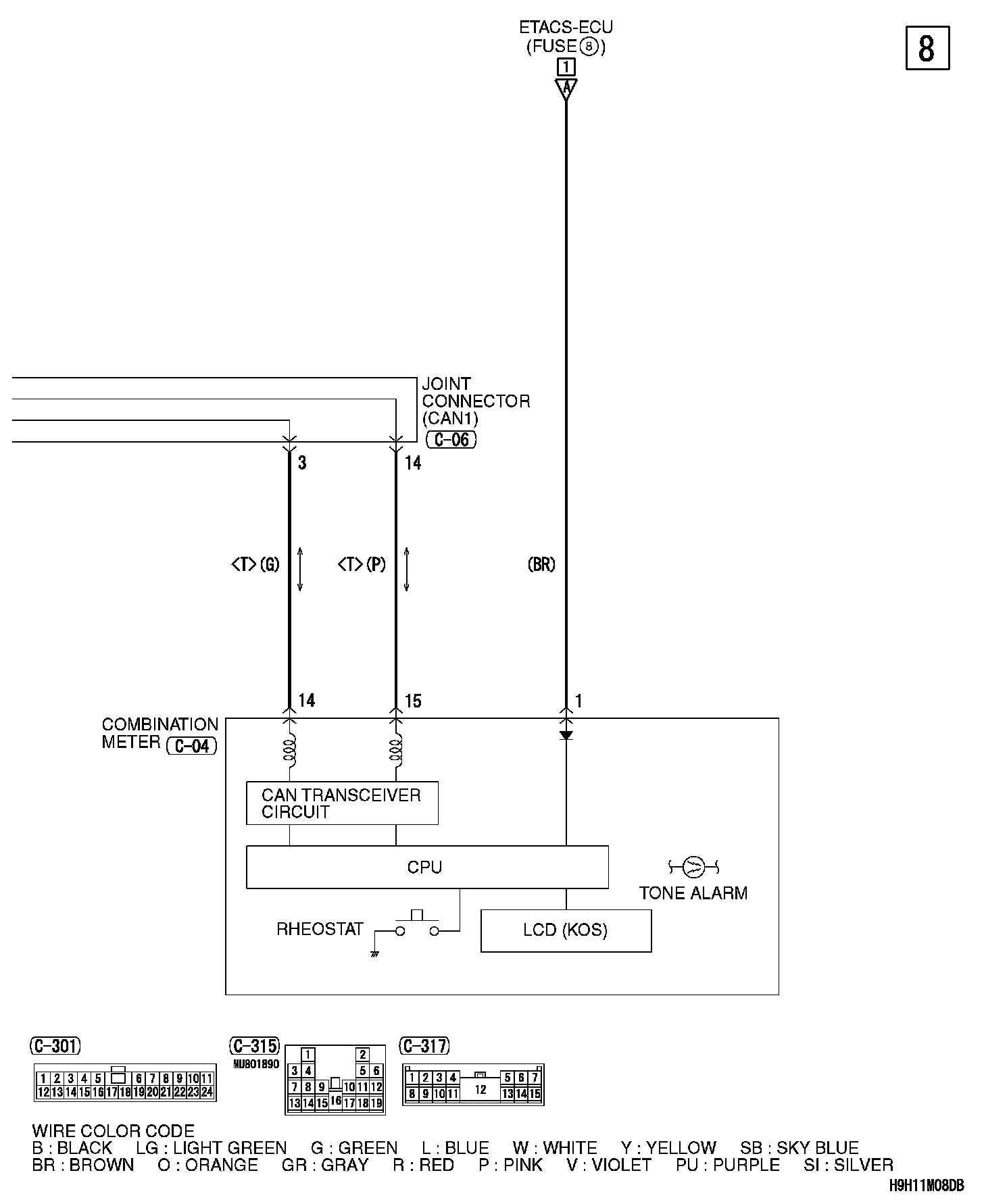

Keyless Operating System (KOS) (Part 8):

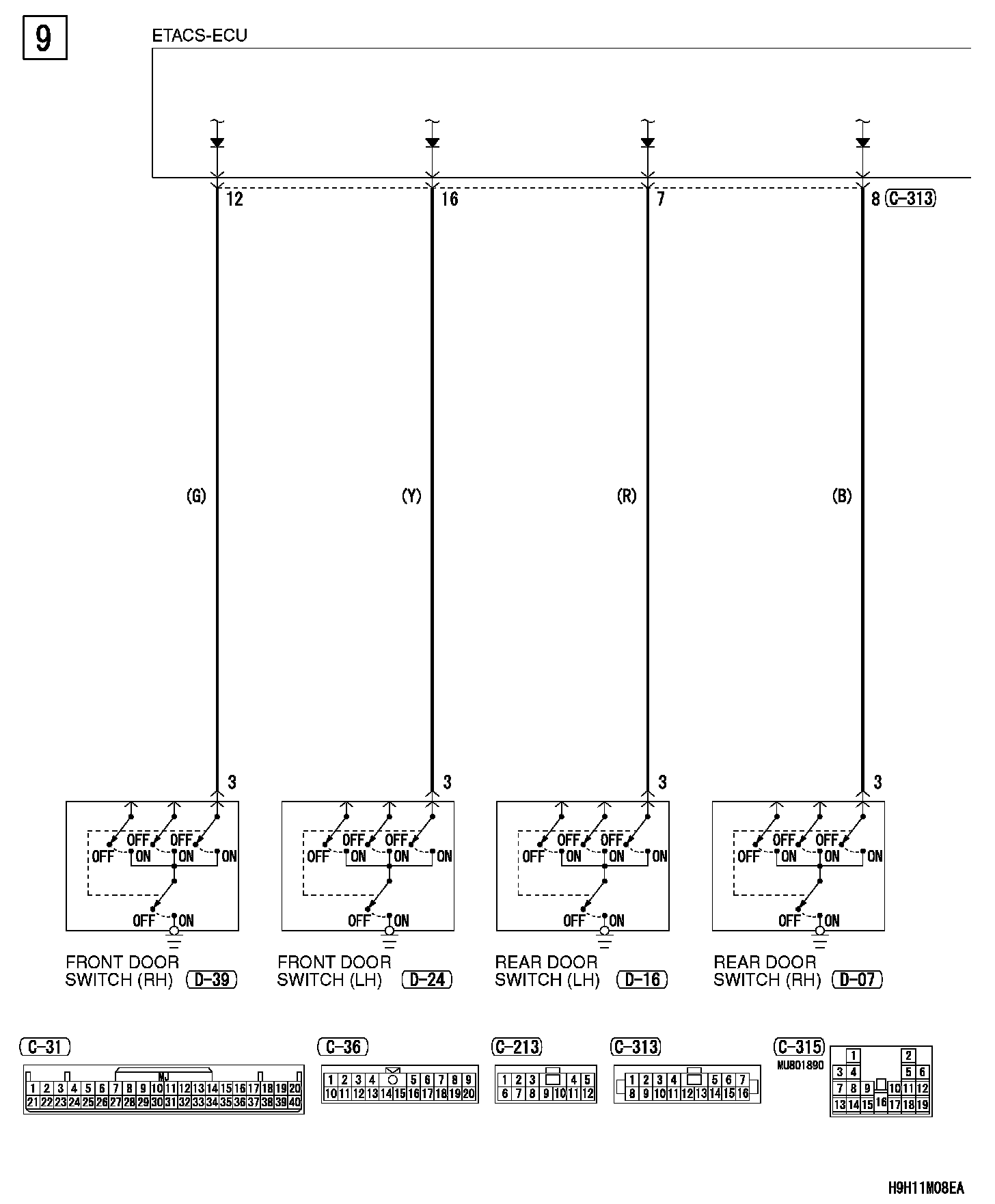

Keyless Operating System (KOS) (Part 9):

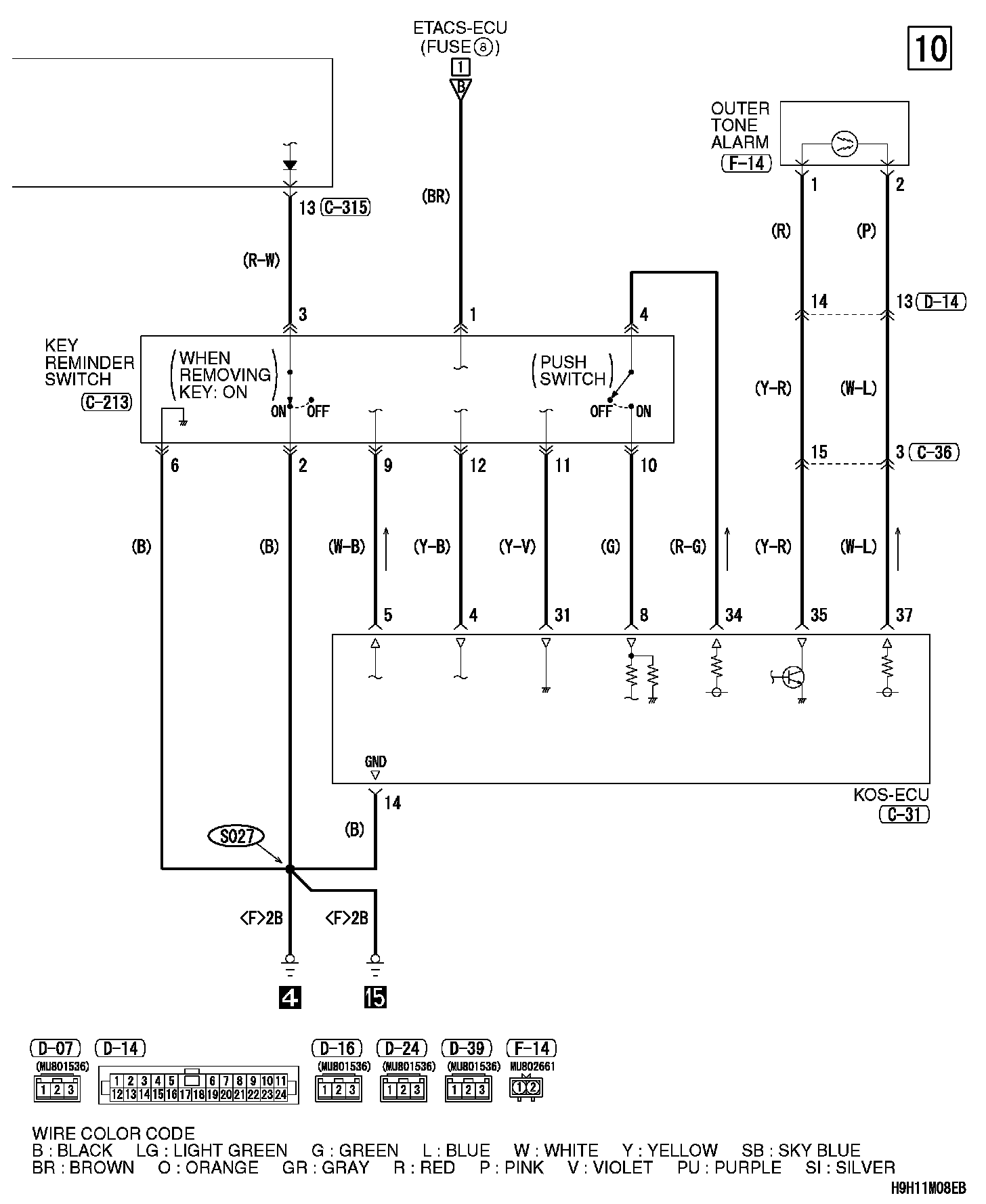

Keyless Operating System (KOS) (Part 10):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
