Inspection Procedure 11: Lock Switch (Liftgate) Does Not Work.: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

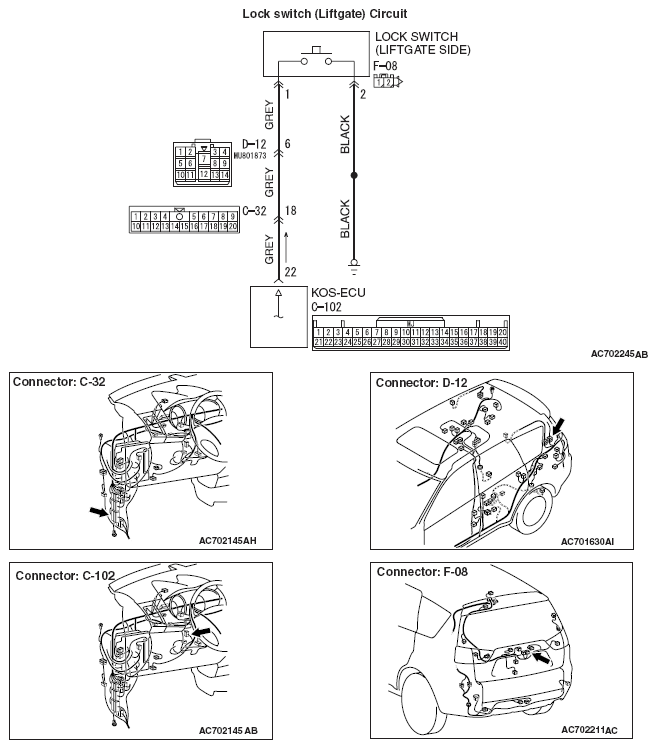

Fig 1: Lock Switch (Liftgate) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
