DTC U0215: P/W SW (DR) LIN timeout: Notes

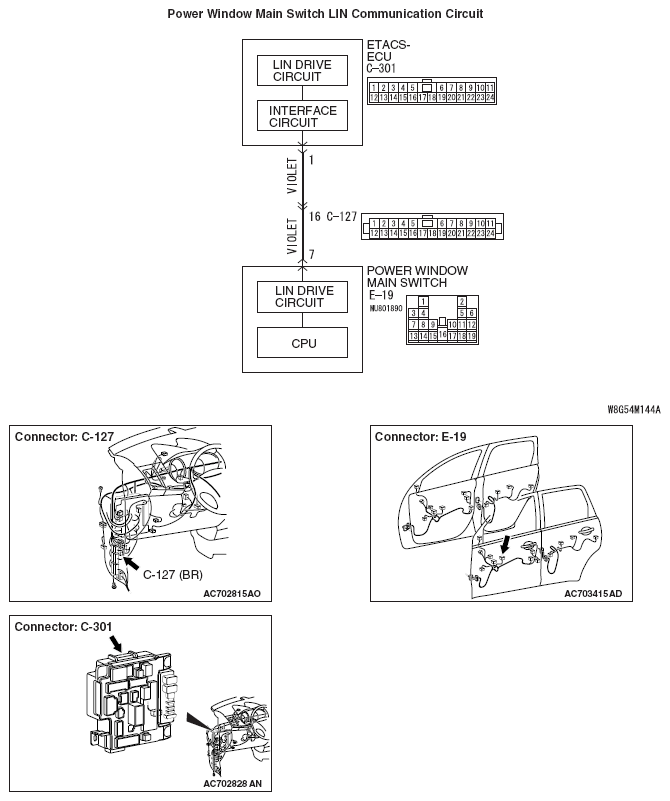

Fig 1: Power Window Main Switch LIN Communication Circuit
G05896776Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.
