DTC C1049: RR Wheel Speed Sensor Control Phase Time Exceeded: Notes

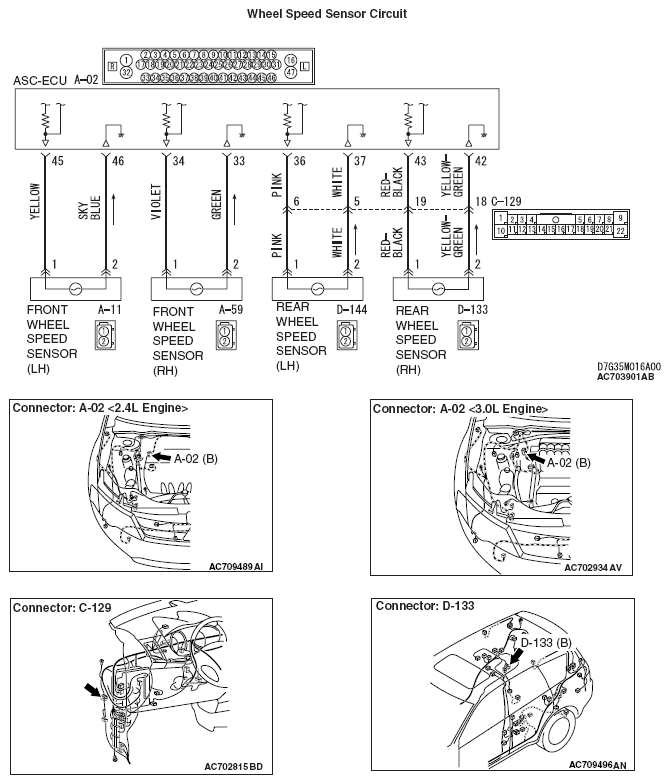

Fig 1: Wheel Speed Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to CAN BUS DIAGNOSIS TABLE ).
• Whenever ECU is replaced, ensure that the CAN bus lines are normal.
• When the hydraulic unit (integrated with ASC-ECU) is replaced, always carry out the calibration of the steering wheel sensor, the G and yaw rate sensor and brake fluid pressure sensor (Refer to IN THE EVENT OF A DISCHARGED BATTERY , STEERING WHEEL SENSOR CALIBRATION  and BRAKE FLUID PRESSURE SENSOR CALIBRATION ).
