Inspection Procedure 9: After ASC Off Switch Is Turned Off, TCL/Skid Control System Cannot Be Disabled: Notes

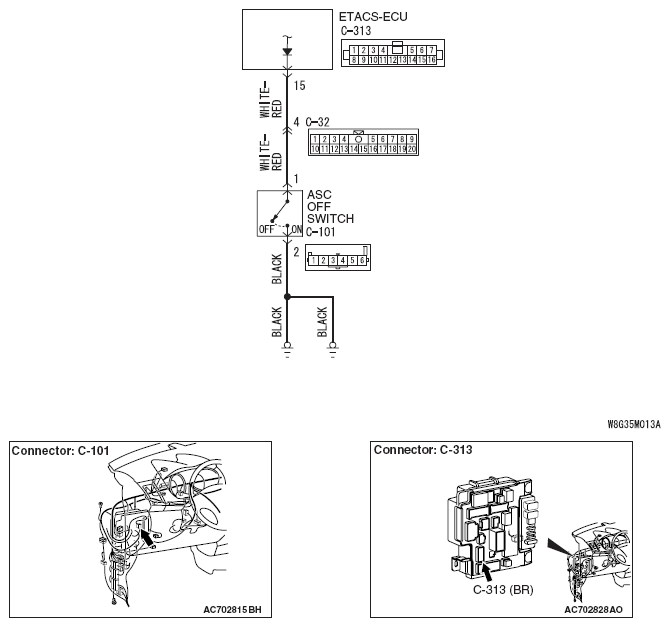

Fig 1: ASC Off Switch - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect diagnosis code may be set. Prior to this diagnosis, diagnose the CAN bus lines (Refer to TROUBLE CODE DIAGNOSIS ).
• Whenever ECU is replaced, ensure that the CAN bus lines are normal.
