Control System Component Part Configuration Diagram

CONTROL SYSTEM COMPONENT PART CONFIGURATION DIAGRAM

Name	Symbol	Name	Symbol
Accelerator pedal position sensor	K	Secondary pulley speed sensor	B
Crankshaft position sensor	A	Shift lock solenoid	L
CVT assembly (Solenoid valve assembly, CVT fluid temperature sensor)	F	Shift switch assembly	L
CVT control relay	C	Stoplight switch	J
Data link connector	I	Transaxle control module (TCM)	H
Paddle shift switch	G	Transmission range switch	D
Primary pulley speed sensor	E

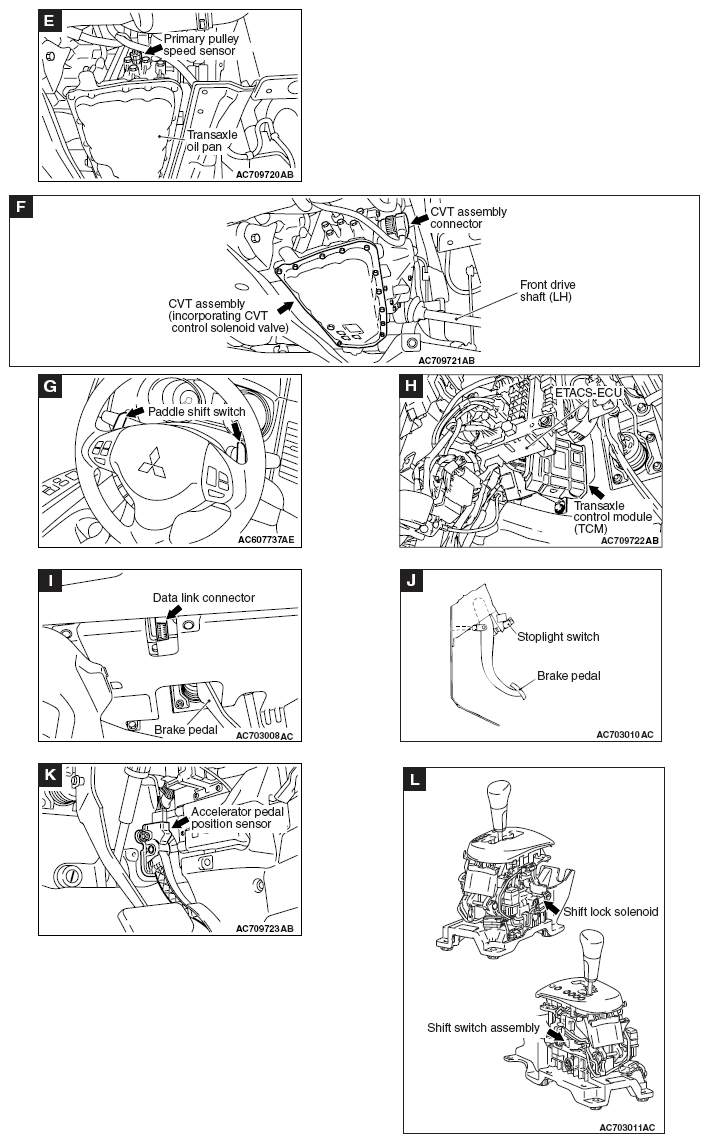

Fig 1: Identifying Control System Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

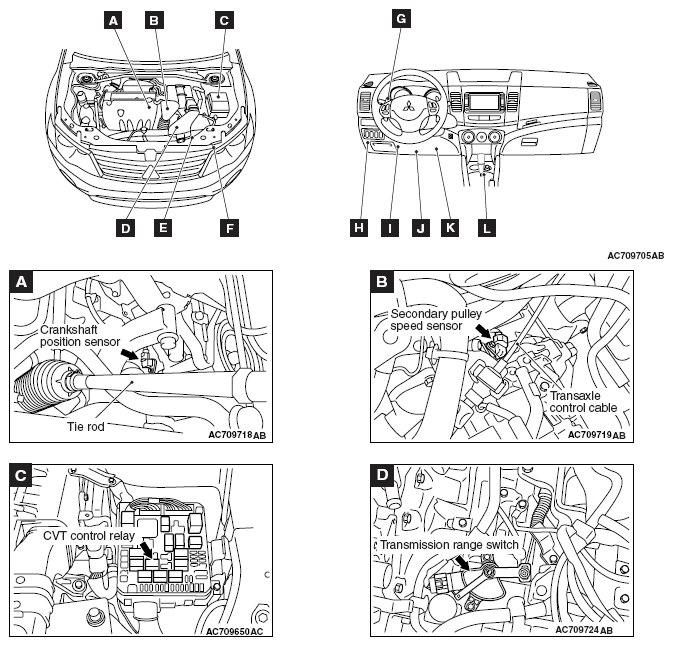

Fig 2: Identifying Control System Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
