Removal And Installation: Notes

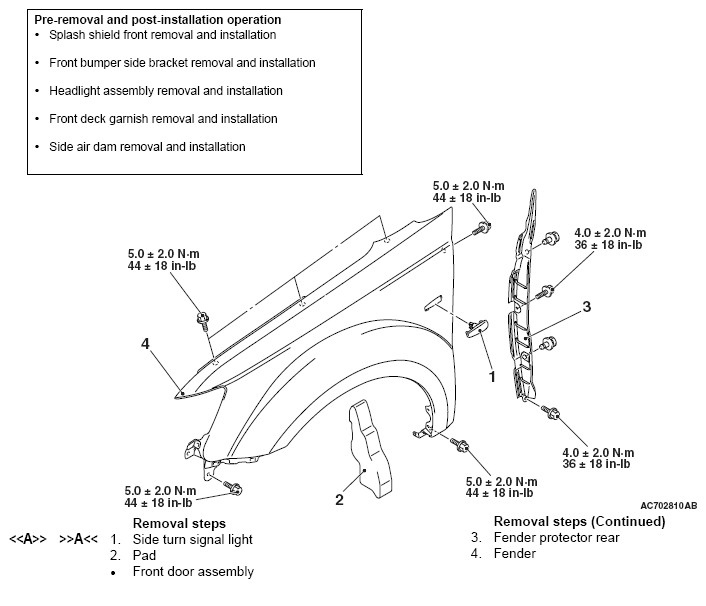

Fig 1: Fender Replacement Components With Torque Specifications
G05432848Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
