Removal And Installation < 2.4L Engine >: Notes

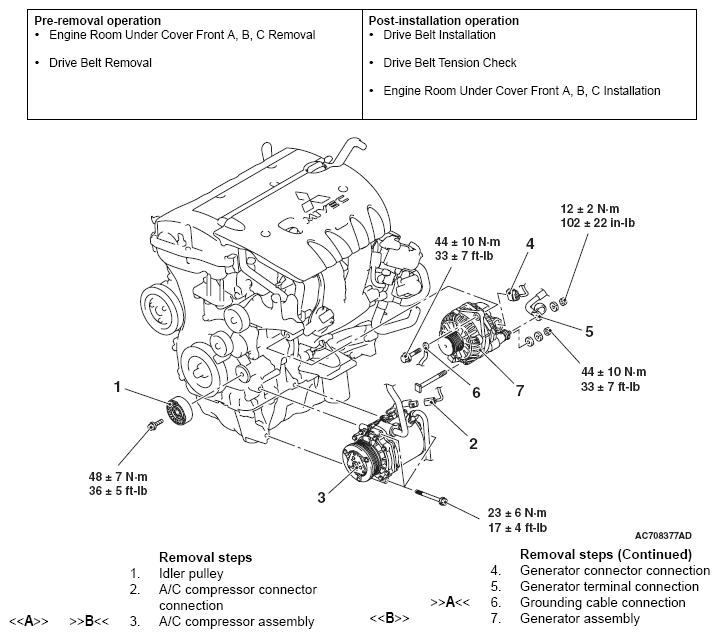

Fig 1: Generator Assembly Replacement Components With Torque Specifications - 2.4L Engine
G05431099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
