Removal And Installation < 3.0L Engine >: Notes

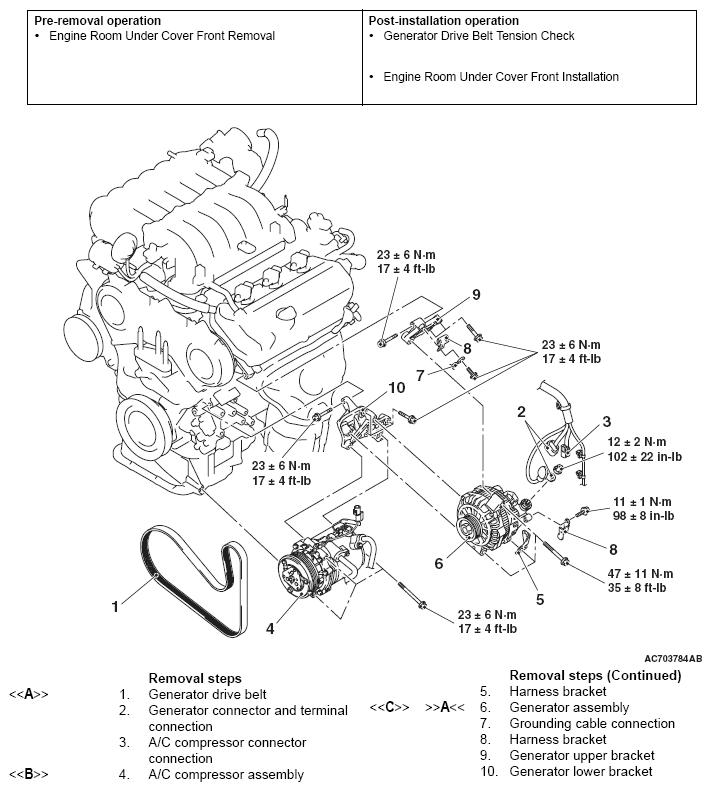

Fig 1: Generator Assembly Replacement Components With Torque Specifications - 3.0L Engine
G05431102Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
