Removal And Installation: Notes

CAUTION: For the removal of the headlining, refer to SERVICE PRECAUTIONS . For removal of curtain air bag module, refer to CURTAIN AIR BAG MODULE(S) .

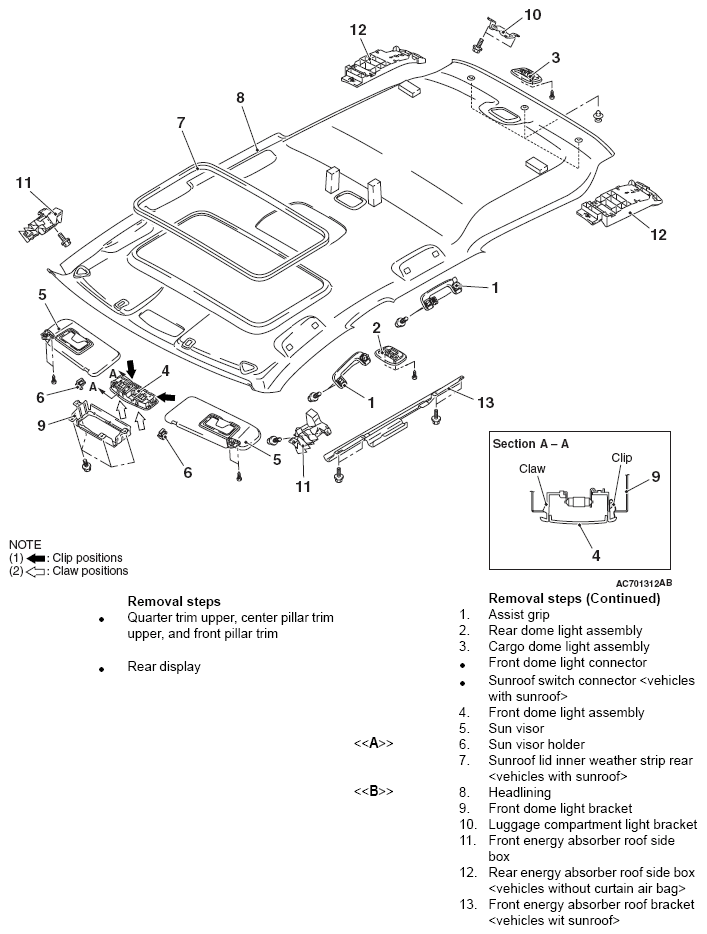

Fig 1: Identifying Headlining Remove/Install Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
