Disassembly And Reassembly: Notes

CAUTION: Do not use ATF-SP II M and ATF-SP III for the power steering fluid.

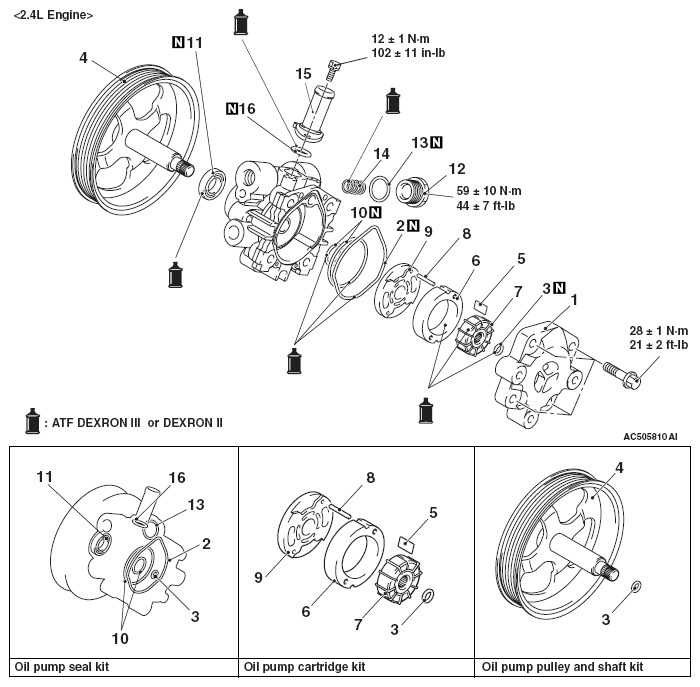

Fig 1: View Of Power Steering Oil Pump Assembly With Torque Specifications - 2.4L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

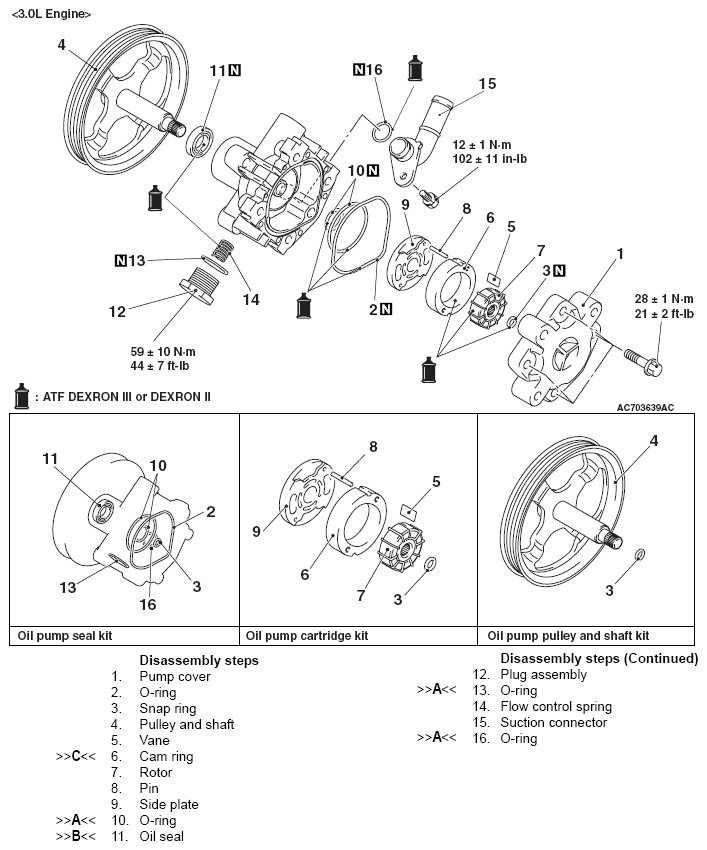

Fig 2: View Of Power Steering Oil Pump Assembly With Torque Specifications - 3.0L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
