Removal And Installation: Notes

CAUTION:

Before removing the steering wheel/driver's air bag module assembly. Refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE CLOCK SPRING .
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. Refer to STEERING WHEEL SENSOR CALIBRATION < Vehicles with ASC >.

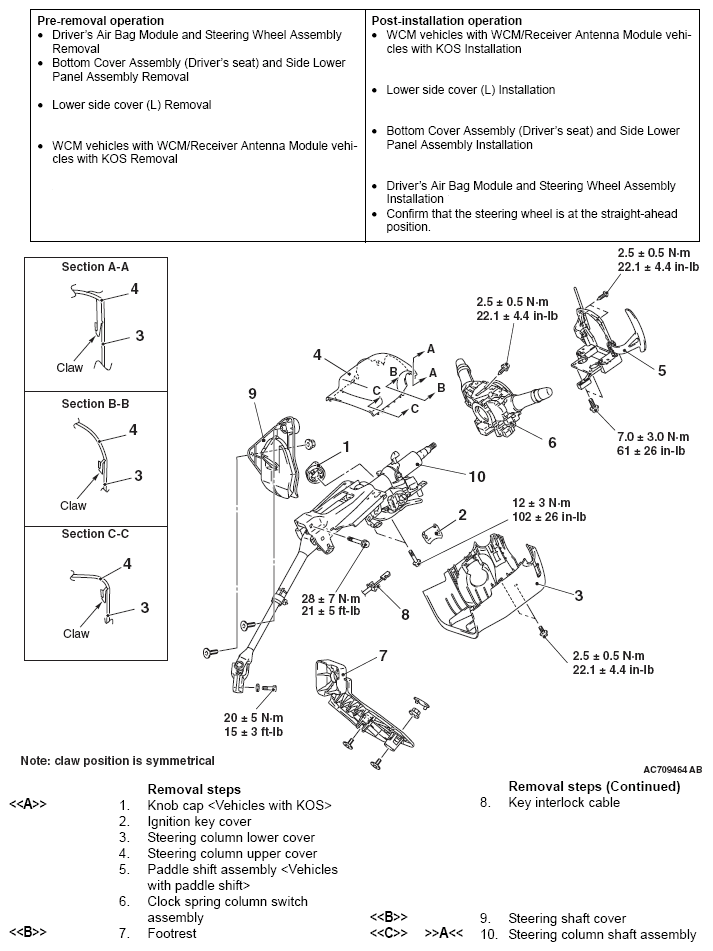

Fig 1: Steering Column Shaft Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
