Sectional View

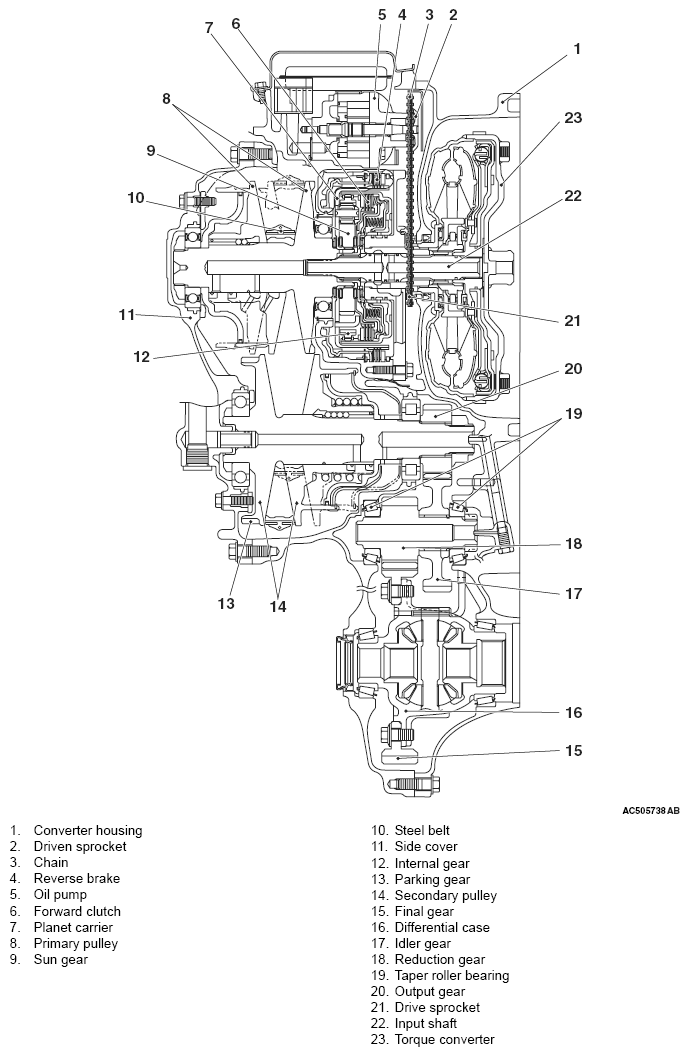

Fig 1: Sectional View Of Transaxle/Transmission Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
