Removal And Installation: Notes

CAUTION:

The fasteners marked with *1 should be temporarily tightened first and then fully tightened with the engine weight applied on the vehicle body.
The bolts marked with *2 are coated with the friction coefficient stabilizer. After removing these bolts, make sure that they are free of damage, remove any dust and dirt on the bearing surfaces and the threads, and then securely tighten to the specified torque.

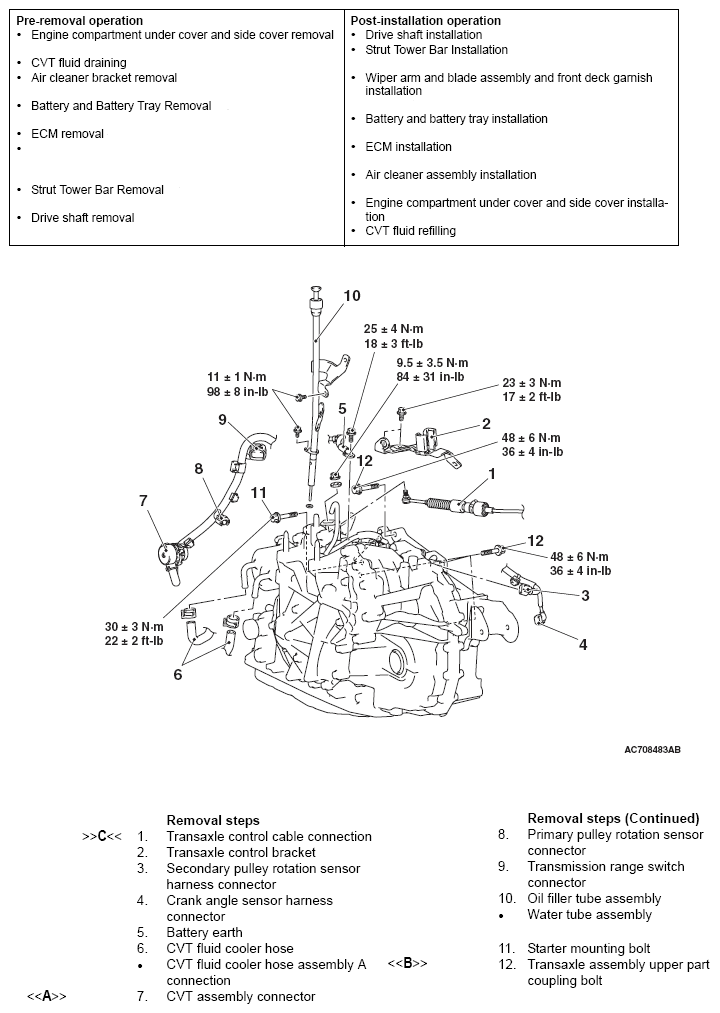

Fig 1: Transaxle Assembly External Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

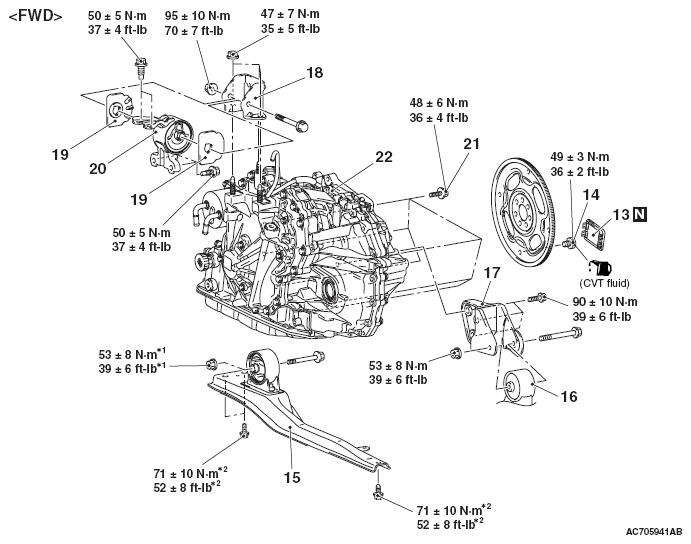

Fig 2: Transaxle Assembly Replacement Components With Torque Specifications (FWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

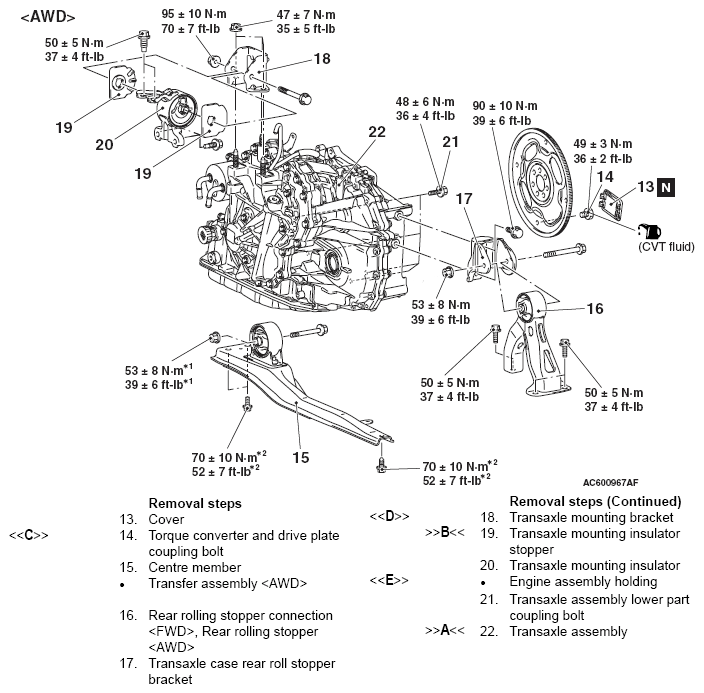

Fig 3: Transaxle Assembly Replacement Components With Torque Specifications (AWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
