Anti-Lock Brakes Module

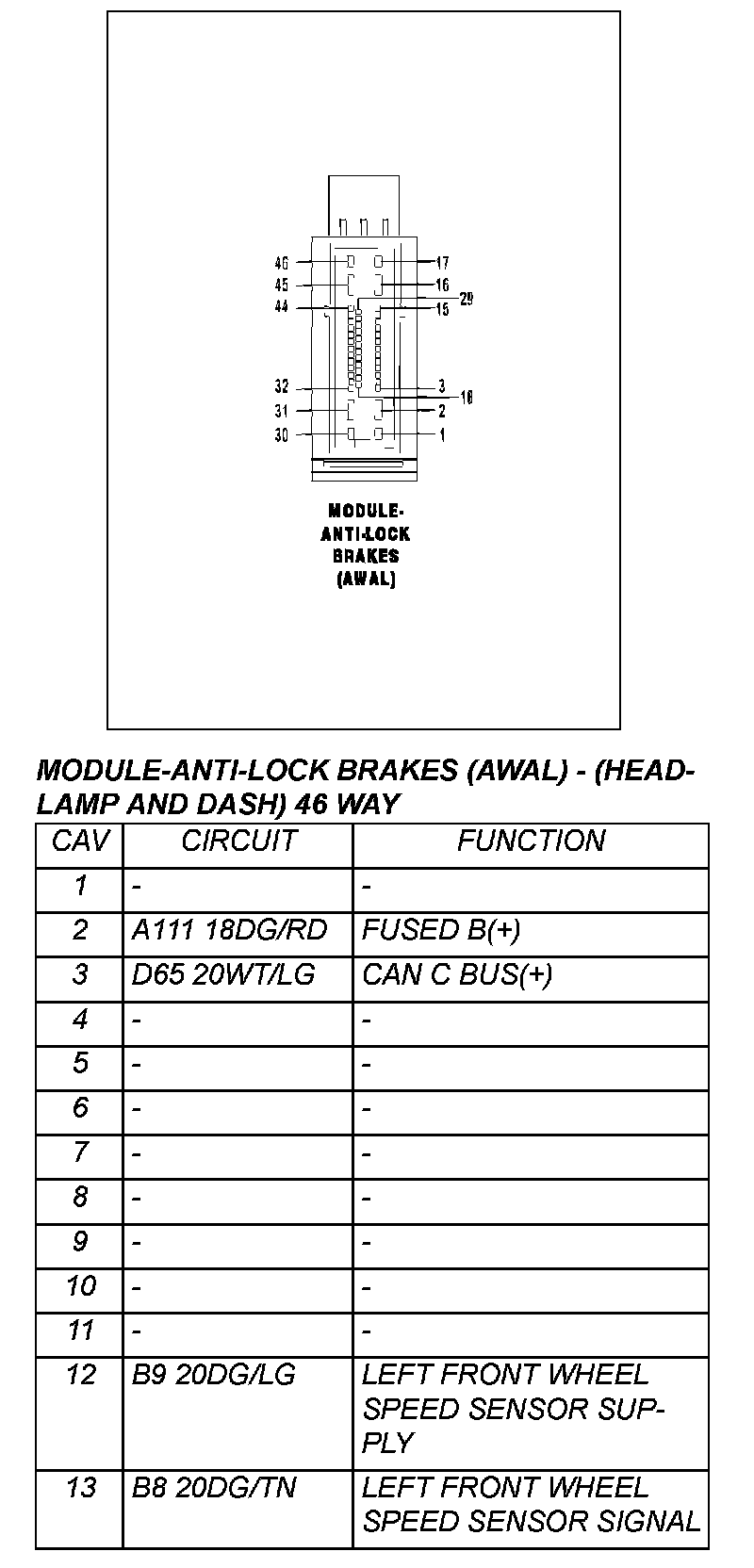

Module - Anti-Lock Brakes (AWAL) - (Headlamp And Dash) 46 Way (Part 1):

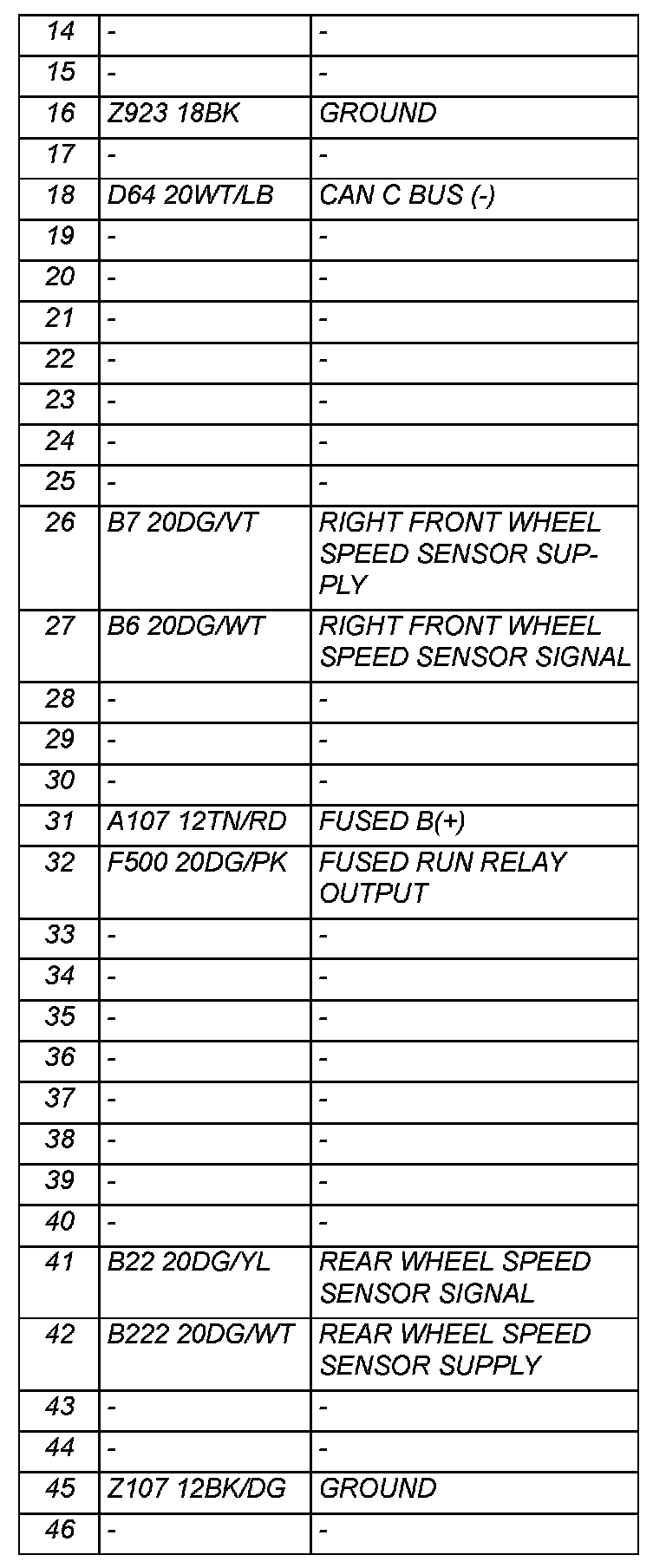

Module - Anti-Lock Brakes (AWAL) - (Headlamp And Dash) 46 Way (Part 2):

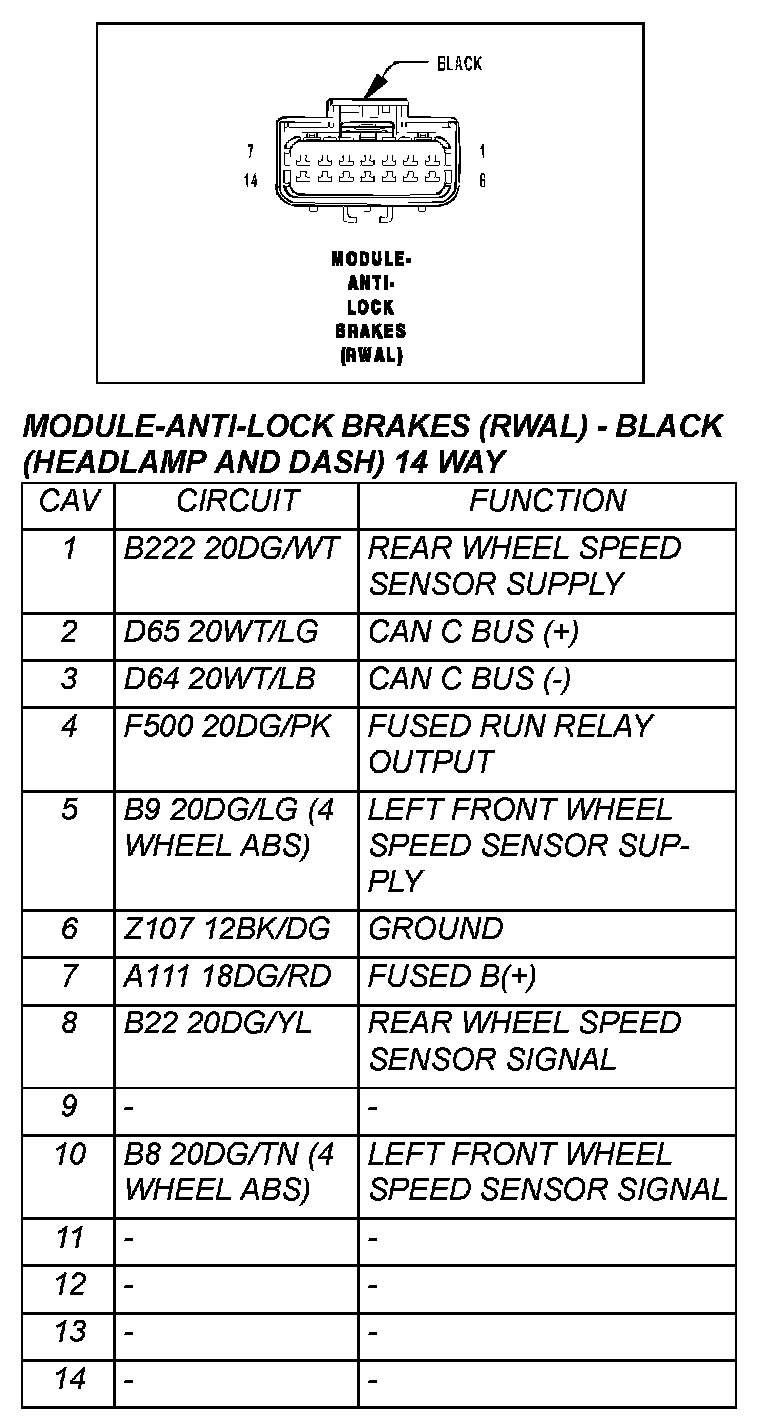

Module - Anti-Lock Brakes (RWAL) - Black (Headlamp And Dash) 14 Way:
